Airports for X-Plane

Raleigh/durham - Raleigh Durham Intl

Airport details

CountryUnited States of America
StateNorth Carolina
RegionK7
AirspaceWashington Ctr
MunicipalityWake County
Elevation435ft (133m)
TimezoneGMT -5
Coordinates35.87764, -78.78748
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKRDU
IATA codeRDU
FAA codeRDU

Communication

Raleigh Durham Intl ATIS123.800
Raleigh Durham Intl UNICOM122.950
Raleigh Durham Intl Clearance DEL120.100
Raleigh Durham Intl Ground Control121.900
Raleigh Durham Intl Ground Control121.700
Raleigh Durham Intl Tower127.450
Raleigh Durham Intl Tower119.300
Raleigh Durham Intl Approach128.300
Raleigh Durham Intl Approach124.950
Raleigh Durham Intl Departure125.300
Raleigh Durham Intl Departure132.350

Approach frequencies

ILS-cat-IIIRW23R111.718.00mi
ILS-cat-IIRW05R109.518.00mi
ILS-cat-IRW05L109.118.00mi
ILS-cat-IRW23L108.518.00mi
3° GSRW23R111.718.00mi
3° GSRW05L109.118.00mi
3° GSRW23L108.518.00mi
3° GSRW05R109.518.00mi
Nearby Points of Interest:
Williamson Page House
-
Carpenter Historic District
-
North Carolina State Fair
-
Dorton Arena
-
Matsumoto House
-
Paschal House
-
Fadum House
-
Ritcher House
-
Henry L. Kamphoefner House
-
G. Dewey and Elma Arndt House
-
Durham Cotton Mills Village Historic District
-
North Carolina Agricultural Experiment Station Cottage
-
O'Kelly's Chapel
-
Rev. M.L. Latta House
-
Occidental Life Insurance Company Building
-
Cameron Village Historic District
-
Scarborough House
-
West Durham Historic District
-
Josephus Daniels House
-
Golden Belt Historic District
-
Erwin Cotton Mills Company Mill No. 1 Headquarters Building
-
Durham Hosiery Mill
-
Hillside Park High School
-
St. Joseph's African Methodist Episcopal Church
-
Durham Hosiery Mills No. 2–Service Printing Company Building

Runway info

Runway 5L / 23R
 length3049m (10003ft)
 bearing51° / 231°
 width46m (150ft)
 surfaceconcrete
 blast zone61m (200ft) / 61m (200ft)
Runway 5R / 23L
 length2287m (7503ft)
 bearing51° / 231°
 width46m (150ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)
Runway 14 / 32
 length1089m (3573ft)
 bearing129° / 309°
 width30m (100ft)
 surfaceasphalt

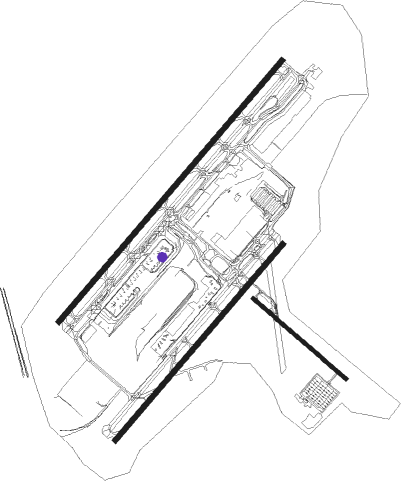

Airport layout - parking location C18


Taxiway locations

 A  A1  A2  A3  A4  A5  A6  A7
 A8  B  B1  B2  B3  B4  B5  B6
 B7  B8  B9  C  C1  D  E  F
 J  Z
Parking locations

 A1  A2  A3  A4  A5  A6  A7  A8
 A9  Air  C1  C10  C11  C12  C14  C15
 C16  C17  C18  C20  C21  C22  C23  C24
 C25  C3  C7  C8  C9  D1  D10  D11
 D12  D13  D14  D15  D16  D17  D18  D19
 D20  D3  D5  D6  D8  D9  GA  Landmark
 Maintenance  National  NCDOT  Ron

Nearby beacons

codeidentifierdistbearingfrequency
RDURALEIGH-DURHAM VORTAC0.3141°117.20
LELEEVY (RALEIGH/DURHAM) NDB4.353°350
HURPERSON (ROXBORO) NDB25.2322°220
HXOHUNTSBORO (OXFORD) NDB26.722°271
HQTHARNETT (ERWIN) NDB27.2166°417
JNJURLY (SMITHFIELD) NDB29.9138°263
HBALAMM NDB39.2277°361
POBPOPE (FAYETTEVILLE) NDB39.9194°338
LIBLIBERTY VORTAC40.3265°113
POBPOPE (FAYETTEVILLE) TACAN44198°113.80
FGPFORT BRAGG NDB44.3182°393
SBVSOUTH BOSTON VORTAC49.1344°110.40
DANDANVILLE VOR49.3322°113.10
GSBSEYMOUR JOHNSON TACAN51.4124°116.50
FAYFAYETTEVILLE VOR/DME53.7186°108.80
SDZSANDHILLS (SOUTHERN PINES VORTAC55.7230°111.80
SIFSLAMMER (REIDSVILLE) NDB56.1297°423
CTZCLINTON NDB58155°412
LVLLAWRENCEVILLE VORTAC70.843°112.90

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
ALL
 OXFRD597mi29°
 BEXGO571mi43°
 HURIC444mi85°
 ROZBO556mi170°
 HOOKZ554mi186°
RW05 (ALL)
 RDU156mi170°
 PACK9, SHPRD483mi262°
 LWOOD5108mi319°
RW14
 RDU156mi170°
RW23 (ALL)
 RDU156mi170°
 PACK9, SHPRD483mi262°
 LWOOD5108mi319°
RW32
 RDU156mi170°

STAR starting pointsdistanceinbound heading
ALL
 BUZZY136.758°
 BRADE630.2292°
RW05 (ALL)
 MALNR543.654°
 ALDAN332.0164°
 TAQLE129.4242°
 BLOGS320.8291°
RW23 (ALL)
 ALDAN332.0164°
 TAQLE129.4242°
 BLOGS320.8291°
RW23L
 MALNR543.654°
RW23R
 MALNR543.654°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05LYCHWDR (52°)CHWDR 5000ft
BOULE (3mi, 51°) 4000ft
SCHOO (3mi, 51°) 3000ft
RW05LYOTTOS (56°)OTTOS 6000ft
CHWDR (6mi, 64°) 5000ft
BOULE (3mi, 51°) 4000ft
SCHOO (3mi, 51°) 3000ft
 RNAVSCHOO 3000ft
WEPAS (3mi, 51°) 2200ft
KRDU (6mi, 54°) 424ft
(4861mi, 114°) 1000ft
DUHAM (4864mi, 295°) 2200ft
DUHAM (turn)
RW05LZCHWDR (52°)CHWDR
BOULE (3mi, 51°) 4000ft
SCHOO (3mi, 51°) 3000ft
WEPAS (3mi, 51°) 2200ft
RW05LZHEAVE (111°)HEAVE 6000ft
JEMMY (3mi, 231°) 5100ft
ZOSAP (2mi, 231°) 4700ft
WEPAS (5mi, 129°) 2200ft
RW05LZOTTOS (56°)OTTOS 6000ft
CHWDR (6mi, 64°) 5000ft
BOULE (3mi, 51°) 4000ft
SCHOO (3mi, 51°) 3000ft
WEPAS (3mi, 51°) 2200ft
 RNAVWEPAS 2200ft
KRDU (6mi, 54°) 424ft
(4861mi, 114°) 1000ft
DUHAM (4864mi, 295°) 2200ft
DUHAM (turn)
RW05RYBEICH (50°)BEICH 5000ft
RATTY (3mi, 51°) 4000ft
PECIT (3mi, 51°) 3000ft
RW05RYOTTOS (56°)OTTOS 6000ft
BEICH (6mi, 69°) 5000ft
RATTY (3mi, 51°) 4000ft
PECIT (3mi, 51°) 3000ft
 RNAVPECIT 3000ft
PURME (3mi, 51°) 2200ft
AMORT (4mi, 51°) 900ft
KRDU (2mi, 46°) 454ft
(4861mi, 114°) 1000ft
ZEBUL (4841mi, 295°) 2600ft
ZEBUL (turn)
RW05RZBEICH (50°)BEICH
RATTY (3mi, 51°) 4000ft
PECIT (3mi, 51°) 3000ft
PURME (3mi, 51°) 2200ft
RW05RZOTTOS (56°)OTTOS 6000ft
BEICH (6mi, 69°) 5000ft
RATTY (3mi, 51°) 4000ft
PECIT (3mi, 51°) 3000ft
PURME (3mi, 51°) 2200ft
RW05RZSTINT (333°)STINT 6000ft
DEFER (3mi, 231°) 5100ft
WOSBO (1mi, 230°) 4700ft
CATTZ (5mi, 295°) 2600ft
PURME (1mi, 36°) 2200ft
 RNAVPURME 2200ft
KRDU (6mi, 49°) 454ft
(4861mi, 114°) 1000ft
ZEBUL (4841mi, 295°) 2600ft
ZEBUL (turn)
RW23LYBUTTS (201°)BUTTS 6000ft
WARMS (6mi, 135°) 4000ft
DINTS (6mi, 197°) 4000ft
DOCAT (2mi, 231°) 3000ft
RW23LYDUWON (232°)DUWON 5000ft
DINTS (3mi, 231°) 4000ft
DOCAT (2mi, 231°) 3000ft
RW23LYESELL (236°)ESELL 6000ft
DUWON (9mi, 242°) 5000ft
DINTS (3mi, 231°) 4000ft
DOCAT (2mi, 231°) 3000ft
 RNAVDOCAT 3000ft
APUCU (3mi, 231°) 2200ft
LEPEC (3mi, 231°) 1200ft
KRDU (3mi, 235°) 487ft
(4861mi, 114°) 1100ft
ZEBUL (4841mi, 295°) 2600ft
ZEBUL (turn)
RW23LZBUTTS (201°)BUTTS 6000ft
WARMS (6mi, 135°) 4000ft
DINTS (6mi, 197°) 4000ft
DOCAT (2mi, 231°) 3000ft
APUCU (3mi, 231°) 2200ft
RW23LZDUWON (232°)DUWON
DINTS (3mi, 231°) 4000ft
DOCAT (2mi, 231°) 3000ft
APUCU (3mi, 231°) 2200ft
RW23LZESELL (236°)ESELL 6000ft
DUWON (9mi, 242°) 5000ft
DINTS (3mi, 231°) 4000ft
DOCAT (2mi, 231°) 3000ft
APUCU (3mi, 231°) 2200ft
RW23LZKENCH (295°)KENCH 6000ft
LEZZY (3mi, 54°) 5100ft
ZESBI (1mi, 54°) 4700ft
APUCU (5mi, 311°) 2200ft
 RNAVAPUCU 2200ft
KRDU (6mi, 233°) 487ft
(4861mi, 114°) 1100ft
ZEBUL (4841mi, 295°) 2600ft
ZEBUL (turn)
RW23RYBUTTS (201°)BUTTS 6000ft
WARMS (6mi, 135°) 4000ft
DABKE (5mi, 198°) 4000ft
PRSTN (3mi, 231°) 3000ft
RW23RYESELL (236°)ESELL 6000ft
MARBY (8mi, 246°) 5000ft
DABKE (3mi, 231°) 4000ft
PRSTN (3mi, 231°) 3000ft
RW23RYMARBY (230°)MARBY 5000ft
DABKE (3mi, 231°) 4000ft
PRSTN (3mi, 231°) 3000ft
 RNAVPRSTN 3000ft
BODLY (3mi, 231°) 2200ft
KRDU (6mi, 228°) 464ft
(4861mi, 114°) 1000ft
DUHAM (4864mi, 295°) 2200ft
DUHAM (turn)
RW23RZBUTTS (201°)BUTTS 6000ft
WARMS (6mi, 135°) 4000ft
DABKE (5mi, 198°) 4000ft
PRSTN (3mi, 231°) 3000ft
BODLY (3mi, 231°) 2200ft
RW23RZESELL (236°)ESELL 6000ft
MARBY (8mi, 246°) 5000ft
DABKE (3mi, 231°) 4000ft
PRSTN (3mi, 231°) 3000ft
BODLY (3mi, 231°) 2200ft
RW23RZGLEYS (154°)GLEYS 6000ft
JOLTY (3mi, 51°) 5100ft
NOBVE (1mi, 51°) 4700ft
BODLY (5mi, 129°) 2200ft
RW23RZMARBY (230°)MARBY
DABKE (3mi, 231°) 4000ft
PRSTN (3mi, 231°) 3000ft
BODLY (3mi, 231°) 2200ft
 RNAVBODLY 2200ft
KRDU (6mi, 228°) 464ft
(4861mi, 114°) 1000ft
DUHAM (4864mi, 295°) 2200ft
DUHAM (turn)
RW32CONCA (351°)CONCA
NOSIC (10mi, 50°) 3400ft
RW32NOSIC (309°)NOSIC 3400ft
RW32SINNO (276°)SINNO
NOSIC (10mi, 231°) 3400ft
 RNAVNOSIC 3400ft
RISSO (7mi, 309°) 2400ft
KRDU (6mi, 309°) 470ft
(4861mi, 114°) 820ft
KASLE (4863mi, 294°)
DUHAM (9mi, 354°) 2200ft
DUHAM (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALDAN3ALDANVHFright356 (176)°6001ft - 14000ft1.0min timed210
BLOGS3BLOGSVHFright129 (309)°DME 10.0miICAO rules
BRADE6BRADEVHFright125 (305)°6001ft - 14000ft1.0min timed210
BUZZY1BUZZYVHFright213 (33)°6001ft - 14000ft1.0min timed210
MALNR5MALNRVHFright195 (15)°DME 10.0miICAO rules
MALNR5NYGELVHFright244 (64)°DME 10.0miICAO rules
TAQLE1TAQLEVHFright75 (255)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
