Airports for X-Plane

Richmond - Richmond Intl

Airport details

CountryUnited States of America
StateVirginia
RegionK6
AirspaceWashington Ctr
MunicipalityHenrico County
Elevation166ft (51m)
TimezoneGMT -5
Coordinates37.49432, -77.30780
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKRIC
IATA codeRIC
FAA codeRIC

Communication

Richmond Intl ATIS119.150
Richmond Intl UNICOM122.950
Richmond Intl Clearance DEL127.550
Richmond Intl Ground Control121.900
Richmond Intl Tower121.100
Richmond Intl POTOMAC Approach/Departure126.400

Approach frequencies

ILS-cat-IIIRW34110.718.00mi
ILS-cat-IRW02110.918.00mi
ILS-cat-IRW16110.718.00mi
3° GSRW34110.718.00mi
3° GSRW02110.918.00mi
3° GSRW16110.718.00mi
Nearby Points of Interest:
Mankin Mansion
-
Beth Elon
-
Patrick Henry Building
-
Clarke-Palmore House
-
Robert Fulton School
-
Tree Hill (Richmond, Virginia)
-
Selwyn (Mechanicsville, Virginia)
-
James River Steam Brewery Cellars
-
Armitage Manufacturing Company
-
Woodward House (Richmond, Virginia)
-
Farmer's Rest
-
Springfield School
-
Hasker and Marcuse Factory
-
Fairmount School
-
Trinity Methodist Church (Richmond, Virginia)
-
Shockoe Valley
-
Pace-King House
-
Southern Stove Works, Manchester
-
Mason's Hall
-
Oakley Hill
-
Oliver Hill Building
-
Chesapeake Warehouses
-
William Beers House
-
Egyptian Building
-
Virginia Department of Highways Building

Runway info

Runway 16 / 34
 length2751m (9026ft)
 bearing141° / 321°
 width46m (151ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 2 / 20
 length2018m (6621ft)
 bearing17° / 197°
 width46m (151ft)
 surfaceasphalt
 blast zone61m (200ft) / 84m (276ft)

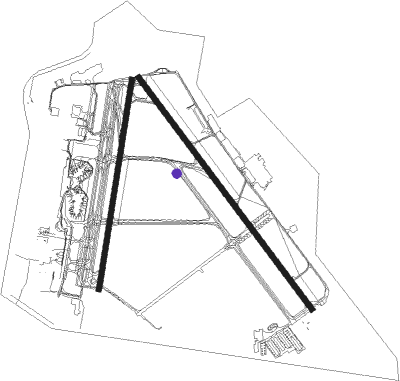

Airport layout - taxiway location L


Taxiway locations

 A  B  C  E  F  G  H  J
 K  L  M  M1  M2  M3  N  R
 T  U  U1  V
Parking locations

 Air  Dominion  Gate  Million  Ric  VA

Nearby beacons

codeidentifierdistbearingfrequency
RICRICHMOND VORTAC0.7303°114.10
HPWHOPEWELL VORTAC13.5131°112
FAKFLAT ROCK VORTAC24.8274°113.30
HCMHARCUM VORTAC28.594°108.80
AKQWAKEFIELD NDB34149°274
BKTBLACKSTONE NDB41.5244°326
EZFSHANNON (FREDERICKSBURG) NDB46.8350°237
FKNFRANKLIN VORTAC48.9159°110.60
LVLLAWRENCEVILLE VORTAC49.6221°112.90
BRVBROOKE VORTAC50.6357°114.50
GVEGORDONSVILLE VORTAC50.8302°115.60
LFILANGLEY (HAMPTON) TACAN51.5113°112.30
NHKNAS PATUXENT RIVER TACAN63.549°110.25
NHKPATUXENT NDB6449°400
PXTPATUXENT (PATUXENT RIVER) VORTAC64.149°117.60
MSQNAILR (CULPEPER) NDB64.2328°351

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW02
 COLIN847mi47°
 LUCYL647mi47°
 READE7, KALLI7111mi258°
RW16
 COLIN847mi47°
 LUCYL647mi47°
 KALLI7, READE7111mi258°
RW20
 COLIN847mi47°
 LUCYL647mi47°
 READE7, KALLI7111mi258°
RW34
 COLIN847mi47°
 LUCYL647mi47°
 KALLI7, READE7111mi258°

STAR starting pointsdistanceinbound heading
ALL
 DUCXS519.164°
RW02
 POWTN530.591°
 SPIDR427.4106°
RW16
 POWTN530.591°
 SPIDR427.4106°
RW20
 POWTN530.591°
 SPIDR427.4106°
RW34
 POWTN530.591°
 SPIDR427.4106°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02-YBEKKY (99°)BEKKY 4000ft
ACILI (3mi, 197°) 3200ft
EAARL (3mi, 143°) 2300ft
FISSR (3mi, 64°) 1300ft
RW02-YCASEE (23°)CASEE 2000ft
LJAAY (6mi, 17°) 2000ft
FISSR (3mi, 17°) 1300ft
RW02-YDUCXS (85°)DUCXS 4000ft
EMWHY (9mi, 101°) 3000ft
EAARL (3mi, 101°) 2300ft
FISSR (3mi, 64°) 1300ft
RW02-YEEMIL (307°)EEMIL 3000ft
COVSO (3mi, 243°) 2600ft
FISSR (4mi, 300°) 1300ft
 RNAVFISSR 1300ft
KRIC (4mi, 37°) 209ft
IMASE (12mi, 10°) 2100ft
IMASE (turn)
RW02-ZFAK (94°)FAK
MATOX (21mi, 128°) 2600ft
CASEE (6mi, 79°) 2000ft
RW02-ZHPW (311°)HPW
FEMAP (9mi, 243°) 2000ft
CASEE (6mi, 298°) 2000ft
RW02-ZMATOX (43°)MATOX
CASEE (6mi, 79°) 2000ft
 RNAVCASEE 2000ft
JESTY (7mi, 17°) 2000ft
KRIC (6mi, 30°) 209ft
(4802mi, 116°) 457ft
IMASE (4802mi, 296°) 2000ft
IMASE (turn)
RW16-YAYDEE (223°)AYDEE 4000ft
SKULK (3mi, 321°) 3200ft
UDADE (4mi, 266°) 1900ft
OPUKE (2mi, 174°) 1300ft
RW16-YDEEER (111°)DEEER 4000ft
SOOBY (6mi, 93°) 4000ft
ZAXET (7mi, 107°) 1700ft
OPUKE (2mi, 123°) 1300ft
RW16-YDUCXS (85°)DUCXS 4000ft
TONEO (9mi, 63°) 3000ft
SEZZZ (3mi, 63°) 2300ft
ZAXET (2mi, 86°) 1700ft
OPUKE (2mi, 123°) 1300ft
RW16-YIFPIG (142°)IFPIG 3000ft
AAVVA (7mi, 141°) 2000ft
OPUKE (3mi, 141°) 1300ft
RW16-YTIRTL (173°)TIRTL 3000ft
UDADE (5mi, 207°) 1900ft
OPUKE (2mi, 174°) 1300ft
 RNAVOPUKE 1300ft
KRIC (5mi, 142°) 221ft
HAGLI (11mi, 141°) 2500ft
HAGLI (turn)
RW16-ZEPICS (189°)EPICS
HIBOM (6mi, 268°) 3000ft
IFPIG (6mi, 224°) 3000ft
RW16-ZFAK (94°)FAK
WAKAL (15mi, 59°) 3000ft
IFPIG (5mi, 80°) 3000ft
 RNAVIFPIG 3000ft
FIBUG (6mi, 141°) 2500ft
GORDD (5mi, 141°) 920ft
KRIC (4mi, 143°) 221ft
(4802mi, 116°) 367ft
HAGLI (4795mi, 296°) 2500ft
HAGLI (turn)
RW20-YBECAB (264°)BECAB 4000ft
HUGHS (3mi, 17°) 3200ft
AANNN (3mi, 334°) 2500ft
MUGAW (4mi, 253°) 1300ft
RW20-YDEEER (111°)DEEER 4000ft
SOOBY (6mi, 93°) 4000ft
ESORE (8mi, 89°) 2600ft
MUGAW (4mi, 135°) 1300ft
RW20-YDUCXS (85°)DUCXS 4000ft
TTIMM (12mi, 59°) 4000ft
HORNR (3mi, 59°) 3200ft
ESORE (2mi, 75°) 2600ft
MUGAW (4mi, 135°) 1300ft
RW20-YIMASE (190°)IMASE 2000ft
TYROX (4mi, 197°) 2000ft
MUGAW (3mi, 197°) 1300ft
RW20-YJADNN (241°)JADNN 3000ft
AANNN (3mi, 299°) 2500ft
MUGAW (4mi, 253°) 1300ft
 RNAVMUGAW 1300ft
KRIC (5mi, 180°) 214ft
CASEE (12mi, 203°) 2000ft
CASEE (turn)
RW20-ZEPICS (189°)EPICS
IMASE (6mi, 186°) 2000ft
RW20-ZFAK (94°)FAK
TRUIT (21mi, 62°) 2000ft
IMASE (9mi, 101°) 2000ft
RW20-ZHPW (311°)HPW
BAYLY (20mi, 5°) 2000ft
IMASE (9mi, 279°) 2000ft
 RNAVIMASE 2000ft
FOBON (5mi, 197°) 2000ft
KRIC (7mi, 185°) 214ft
(4802mi, 116°) 464ft
CASEE (4804mi, 296°) 2000ft
CASEE (turn)
RW34-YBAIRR (4°)BAIRR 3000ft
MANDM (4mi, 42°) 2000ft
WOWSR (3mi, 2°) 1300ft
RW34-YDUCXS (85°)DUCXS 4000ft
VARMT (13mi, 103°) 3500ft
RUTLD (3mi, 104°) 2800ft
MANDM (3mi, 75°) 2000ft
WOWSR (3mi, 2°) 1300ft
RW34-YHAGLI (321°)HAGLI 2500ft
IDONE (4mi, 321°) 2000ft
WOWSR (3mi, 321°) 1300ft
RW34-YTRKEY (277°)TRKEY 3000ft
YEVUS (3mi, 233°) 2400ft
WOWSR (4mi, 276°) 1300ft
 RNAVWOWSR 1300ft
KRIC (3mi, 320°) 215ft
IFPIG (15mi, 322°) 2500ft
IFPIG (turn)
RW34-ZFAK (94°)FAK
IGANE (31mi, 118°) 3000ft
HAGLI (8mi, 44°) 2500ft
RW34-ZHPW (311°)HPW
HAGLI (4mi, 283°) 2500ft
 RNAVHAGLI 2500ft
JOMUS (6mi, 321°) 1700ft
YUTUP (3mi, 321°) 660ft
KRIC (1mi, 318°) 215ft
(4802mi, 116°) 361ft
IFPIG (4812mi, 296°) 2500ft
IFPIG (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DUCXS5KELCEVHFleft246 (66)°6001ft - 14000ftDME 6.0mi210
DUCXS5NEAVLVHFright217 (37)°6001ft - 14000ftDME 6.0mi210
POWTN5VETECVHFleft266 (86)°DME 10.0mi230
SPIDR4HEMMEVHFleft294 (114)°DME 10.0mi230
*) magnetic outbound (inbound) holding course
