Airports for X-Plane

Tulsa - Richard Lloyd Jones Jr

Airport details

CountryUnited States of America
StateOklahoma
RegionK4
AirspaceKansas City Ctr
MunicipalityTulsa
Elevation638ft (194m)
TimezoneGMT -6
Coordinates36.03868, -95.98821
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKRVS
IATA codeRVS
FAA codeRVS

Communication

Richard Lloyd Jones Jr ATIS126.500
Richard Lloyd Jones Jr UNICOM122.950
Richard Lloyd Jones Jr CTAF120.300
Richard Lloyd Jones Jr Clearance DEL124.500
Richard Lloyd Jones Jr Ground Control121.700
Richard Lloyd Jones Jr RIVERSIDE Tower119.200
Richard Lloyd Jones Jr RIVERSIDE Tower120.300
Richard Lloyd Jones Jr TULSA Approach/Departure134.700
Richard Lloyd Jones Jr TULSA Approach/Departure119.850

Approach frequencies

ILS-cat-IRW01L109.9518.00mi
3° GSRW01L109.9518.00mi

Runway info

Runway 1L / 19R
 length1558m (5112ft)
 bearing16° / 196°
 width30m (100ft)
 surfaceasphalt
Runway 1R / 19L
 length1285m (4216ft)
 bearing16° / 196°
 width30m (100ft)
 surfaceasphalt
 displ threshold0m (0ft) / 43m (141ft)
Runway 13 / 31
 length805m (2641ft)
 bearing127° / 307°
 width15m (50ft)
 surfaceasphalt

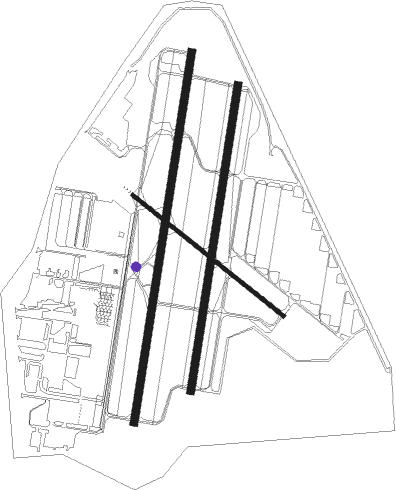

Airport layout - taxiway location A3


Taxiway locations

 A  A1  A2  A3  A4  A5  A6  BB
 H  J  J1  K  L  T  TT  Z
 Z1  Z2
Parking locations

 FBO  Midfield  SW

Nearby beacons

codeidentifierdistbearingfrequency
TUOILLR (TULSA) NDB5.959°338
GNP(TULSA) DME7.1171°110.60
TULTULSA VORTAC13.552°114.40
OKPRESO (OKMULGEE) NDB17.1172°388
OKMOKMULGEE VOR/DME21.5161°114.90
HETHENRYETTA NDB38.1182°267
BVOBARTLESVILLE VOR/DME47.8358°117.90
BVDEWIE (BARTLESVILLE) NDB48.1358°201
SRESEMINOLE NDB56.9222°278

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW01 (ALL)
 TUL912mi316°
RW13
 TUL912mi316°
RW19 (ALL)
 TUL912mi316°
RW31
 TUL912mi316°

STAR starting pointsdistanceinbound heading
ALL
 VINTA352.5231°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01LINHOF (16°)INHOF 2800ft
 RNAVINHOF 2800ft
ZEBEK (6mi, 16°) 2500ft
JALIP (3mi, 16°) 1540ft
KRVS (3mi, 14°) 662ft
(5696mi, 111°) 1100ft
KEVIL (5709mi, 291°) 2600ft
KEVIL (turn)
RW19RSTEBB (164°)STEBB
HAXED (7mi, 146°) 2800ft
 RNAVHAXED 2800ft
WUXIT (6mi, 165°) 2000ft
KRVS (4mi, 198°) 681ft
(5696mi, 111°) 1038ft
INHOF (5699mi, 290°) 2800ft
INHOF (turn)
