Airports for X-Plane

Seattle - Seattle Tacoma Intl

Airport details

CountryUnited States of America
StateWashington
RegionK1
AirspaceSeattle Ctr
MunicipalitySeaTac
Elevation433ft (132m)
TimezoneGMT -8
Coordinates47.44989, -122.31178
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKSEA
IATA codeSEA
FAA codeSEA

Communication

Seattle Tacoma Intl ATIS118.000
Seattle Tacoma Intl UNICOM122.950
Seattle Tacoma Intl Clearance DEL128.000
Seattle Tacoma Intl Ground Control121.700
Seattle Tacoma Intl Tower119.900
Seattle Tacoma Intl Approach/Departure120.100
Seattle Tacoma Intl Approach/Departure119.200

Approach frequencies

ILS-cat-IIIRW16R110.7518.00mi
ILS-cat-IIIRW16C111.718.00mi
ILS-cat-IIIRW16L110.318.00mi
ILS-cat-IIRW34C111.718.00mi
ILS-cat-IIRW34L110.7518.00mi
ILS-cat-IIRW34R110.318.00mi
3° GSRW34C111.718.00mi
3° GSRW34L110.7518.00mi
3° GSRW16R110.7518.00mi
3° GSRW16C111.718.00mi
3° GSRW16L110.318.00mi
2.7° GSRW34R110.318.00mi

Runway info

Runway 16L / 34R
 length3632m (11916ft)
 bearing181° / 1°
 width46m (151ft)
 surfaceconcrete
 blast zone114m (374ft) / 122m (400ft)
Runway 16C / 34C
 length2879m (9446ft)
 bearing180° / 0°
 width46m (151ft)
 surfaceconcrete
 blast zone113m (371ft) / 120m (394ft)
Runway 16R / 34L
 length2596m (8517ft)
 bearing181° / 1°
 width46m (151ft)
 surfaceconcrete
 blast zone60m (197ft) / 59m (194ft)

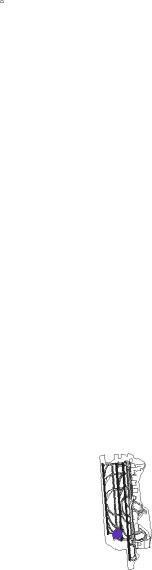

Airport layout - taxiway location T


Taxiway locations

 34R  A  B  C  D  E  F  H
 J  K  L  M  N  P  Q  R
 S  T  Z
Parking locations

 1  4  5  8  9  A1  A10  A11
 A12  A13  A14  A2  A3  A4  A5  A6
 A7  A8  A9  Alaska  B1  B10  B11  B12
 B14  B15  B3  B5  B6  B7  B8  B9
 C1  C11  C12  C15  C18  C1a  C2  C20
 C4  C9  Cargo  D1  D10  D11  D2  D3
 D4  D5  D7  D8  D9  Elite  GA  N1
 N11  N12  N13  N14  N15  N16  N17  N18
 N19  N2  N20  N3  N6  N7  N8  N9
 O10  O12  O13  O14  O15  O16  O5  O6
 O7  O9  S1  S10  S11  S12  S14  S16a
 S2  S3  S4  S5  S6  S7  S8  S9
 Weyerhauser

Nearby beacons

codeidentifierdistbearingfrequency
SEASEATTLE VORTAC0.8172°116.80
TCMMC CHORD (TACOMA) TACAN19.3208°109.60
PAEPAINE (EVERETT) VOR/DME28.24°110.60
OLMOLYMPIA VORTAC37.4231°113.40
AWWATON (ARLINGTON) NDB38.114°382
CVVPENN COVE VOR/DME50.5333°117.20
NUWWHIDBEY ISLAND (OAK HARBO TACAN56.1339°113.80

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW16C
 ELMAA3, HAROB681mi255°
 BANGR969mi297°
RW16L
 HAROB6, ELMAA381mi255°
 BANGR969mi297°
RW16R
 ELMAA3, HAROB681mi255°
 BANGR969mi297°
RW34C
 HAROB681mi255°
 OZWLD112mi289°
 BANGR969mi297°
 ISBRG116mi300°
 JEFPO118mi332°
RW34L
 HAROB681mi255°
 OZWLD112mi289°
 BANGR969mi297°
 ISBRG116mi300°
 JEFPO118mi332°
RW34R
 HAROB681mi255°
 OZWLD112mi289°
 BANGR969mi297°
 ISBRG116mi300°
 JEFPO118mi332°

STAR starting pointsdistanceinbound heading
RW16 (ALL)
 HAWKZ739.130°
 OLM237.451°
 MARNR741.5138°
 GLASR135.9234°
 CHINS439.4295°
RW16C
 JAWBN641.0138°
RW16L
 JAWBN641.0138°
RW16R
 JAWBN641.0138°
RW34 (ALL)
 HAWKZ739.130°
 OLM237.451°
 MARNR741.5138°
 GLASR135.9234°
 CHINS439.4295°
RW34C
 JAWBN641.0138°
RW34L
 JAWBN641.0138°
RW34R
 JAWBN641.0138°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16CYGRIFY (164°)GRIFY 6000ft
MGNUM (8mi, 143°) 4000ft
RW16CYPAE (184°)PAE
ERYKA (13mi, 188°) 5000ft
MGNUM (3mi, 181°) 4000ft
 RNAVMGNUM 4000ft
ANVIL (3mi, 181°) 3200ft
SODOE (4mi, 181°) 1900ft
KSEA (5mi, 181°) 487ft
(6678mi, 111°) 630ft
OTLIE (6679mi, 291°) 2000ft
MILLT (9mi, 179°) 5000ft
MILLT (turn)
RW16CZGRIFY (164°)GRIFY 6000ft
MGNUM (8mi, 143°) 4000ft
ANVIL (3mi, 181°) 3200ft
EPUDE (3mi, 181°) 2200ft
SODOE (turn) 1900ft
RW16CZPAE (184°)PAE
ERYKA (13mi, 188°) 5000ft
MGNUM (3mi, 181°) 4000ft
ANVIL (3mi, 181°) 3200ft
EPUDE (3mi, 181°) 2200ft
SODOE (turn) 1900ft
RW16CZPPAUL (146°)PPAUL 5900ft
FERIE (3mi, 155°) 5300ft
HEGEM (3mi, 155°) 5000ft
SEGAW (4mi, 116°) 3700ft
PINTR (1mi, 101°) 3200ft
EPUDE (3mi, 140°) 2200ft
SODOE (turn) 1900ft
RW16CZVASHN (113°)VASHN 6000ft
RAYUU (3mi, 0°) 5000ft
SEGAW (4mi, 56°) 3700ft
PINTR (1mi, 101°) 3200ft
EPUDE (3mi, 140°) 2200ft
SODOE (turn) 1900ft
 RNAVSODOE 1900ft
KSEA (5mi, 181°) 487ft
ZIVDI (5mi, 180°) 2000ft
MILLT (7mi, 178°) 5000ft
MILLT (turn)
RW16LYGRIFY (164°)GRIFY 6000ft
HELZR (8mi, 142°) 4000ft
RW16LYPAE (184°)PAE
KENMO (13mi, 187°) 5000ft
HELZR (3mi, 181°) 4000ft
 RNAVHELZR 4000ft
KARFO (3mi, 180°) 3200ft
DGLAS (4mi, 181°) 1900ft
KSEA (5mi, 183°) 487ft
(6678mi, 111°) 700ft
CAVOB (6679mi, 291°) 2000ft
MILLT (9mi, 180°) 5000ft
MILLT (turn)
RW16LZGRIFY (164°)GRIFY 6000ft
HELZR (8mi, 142°) 4000ft
KARFO (3mi, 180°) 3200ft
RW16LZPAE (184°)PAE
KENMO (13mi, 187°) 5000ft
HELZR (3mi, 181°) 4000ft
KARFO (3mi, 180°) 3200ft
 RNAVKARFO 3200ft
DGLAS (4mi, 181°) 1900ft
KSEA (5mi, 183°) 488ft
YORUC (5mi, 178°) 2000ft
MILLT (7mi, 180°) 5000ft
MILLT (turn)
RW16RYGRIFY (164°)GRIFY 6000ft
CELAK (8mi, 145°) 4000ft
RW16RYPAE (184°)PAE
AGANE (13mi, 190°) 5000ft
CELAK (3mi, 180°) 4000ft
 RNAVCELAK 4000ft
BUGNE (3mi, 180°) 3200ft
FINKA (4mi, 180°) 1900ft
KSEA (5mi, 176°) 470ft
(6678mi, 111°) 900ft
ZERLI (6692mi, 291°) 2000ft
ZERLI (turn)
RW16RZGRIFY (164°)GRIFY 6000ft
CELAK (8mi, 145°) 4000ft
BUGNE (3mi, 180°) 3200ft
WOTIK (3mi, 180°) 2300ft
FINKA (1mi, 180°) 1900ft
RW16RZPAE (184°)PAE
AGANE (13mi, 190°) 5000ft
CELAK (3mi, 180°) 4000ft
BUGNE (3mi, 180°) 3200ft
WOTIK (3mi, 180°) 2300ft
FINKA (1mi, 180°) 1900ft
RW16RZPPAUL (146°)PPAUL 5900ft
FERIE (3mi, 155°) 5300ft
HEGEM (3mi, 155°) 5000ft
SEGAW (4mi, 116°) 3700ft
PINTR (1mi, 101°) 3200ft
WOTIK (3mi, 140°) 2300ft
FINKA (1mi, 180°) 1900ft
RW16RZVASHN (113°)VASHN 6000ft
RAYUU (3mi, 0°) 5000ft
SEGAW (4mi, 56°) 3700ft
PINTR (1mi, 101°) 3200ft
WOTIK (3mi, 140°) 2300ft
FINKA (1mi, 180°) 1900ft
 RNAVFINKA 1900ft
KSEA (5mi, 176°) 470ft
(6678mi, 111°) 900ft
ZERLI (6692mi, 291°) 2000ft
ZERLI (turn)
RW34CYCIDUG (9°)CIDUG
ATEVE (4mi, 56°) 5000ft
LORIE (9mi, 0°) 5000ft
RW34CYSONDR (7°)SONDR 6000ft
LORIE (5mi, 26°) 5000ft
 RNAVLORIE 5000ft
ODBOE (3mi, 0°) 4000ft
TIFYS (5mi, 0°) 2400ft
RYBKA (4mi, 1°) 1020ft
KSEA (3mi, 360°) 419ft
(6678mi, 111°) 610ft
MGNUM (6673mi, 291°) 5000ft
MGNUM (turn)
RW34CZSHIPZ (59°)SHIPZ 7000ft
BELNE (3mi, 180°) 6000ft
LANGL (3mi, 140°) 5000ft
FAWNA (5mi, 77°) 3300ft
ZINUB (1mi, 17°) 2900ft
TIFYS (2mi, 0°) 2400ft
RW34CZSONDR (7°)SONDR 6000ft
LORIE (5mi, 26°) 5000ft
ZINUB (7mi, 0°) 2900ft
TIFYS (2mi, 0°) 2400ft
 RNAVTIFYS 2400ft
KSEA (7mi, 0°) 419ft
MGNUM (12mi, 1°) 5000ft
MGNUM (turn) 5000ft
RW34LYCIDUG (9°)CIDUG
HIPRO (12mi, 18°) 5000ft
RW34LYSONDR (7°)SONDR 6000ft
HIPRO (5mi, 21°) 5000ft
 RNAVHIPRO 5000ft
JOSTA (3mi, 0°) 4000ft
JALON (5mi, 0°) 2400ft
HOVOS (4mi, 0°) 1040ft
KSEA (3mi, 9°) 411ft
(6678mi, 111°) 900ft
LOFAL (6681mi, 291°) 5000ft
LOFAL (turn)
RW34LZSHIPZ (59°)SHIPZ 7000ft
BELNE (3mi, 180°) 6000ft
LANGL (3mi, 140°) 5000ft
BAKMN (5mi, 69°) 3000ft
JALON (2mi, 0°) 2400ft
RW34LZSONDR (7°)SONDR 6000ft
HIPRO (5mi, 21°) 5000ft
BAKMN (6mi, 0°) 3000ft
JALON (2mi, 0°) 2400ft
 RNAVJALON 2400ft
KSEA (7mi, 4°) 411ft
(6678mi, 111°) 900ft
LOFAL (6681mi, 291°) 5000ft
LOFAL (turn)
RW34RYCIDUG (9°)CIDUG
EBOCA (4mi, 56°) 5000ft
NEEAL (7mi, 0°) 5000ft
RW34RYSONDR (7°)SONDR 6000ft
NEEAL (3mi, 41°) 5000ft
 RNAVNEEAL 5000ft
KLEWS (3mi, 0°) 4000ft
BUCKK (6mi, 0°) 2200ft
CNNTI (4mi, 1°) 1040ft
KSEA (3mi, 356°) 407ft
(6678mi, 111°) 572ft
DODVE (6676mi, 291°) 3000ft
MGNUM (9mi, 359°) 5000ft
MGNUM (turn)
RW34RZSONDR (7°)SONDR 6000ft
NEEAL (3mi, 41°) 5000ft
BEKKR (7mi, 0°) 3000ft
 RNAVBEKKR 3000ft
BUCKK (3mi, 0°) 2200ft
KSEA (7mi, 359°) 407ft
CASDA (4mi, 4°)
MGNUM (8mi, 359°) 5000ft
MGNUM (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CHINS4BRUKKVHFright116 (296)°1.0min timedICAO rules
CHINS4RADDYVHFright104 (284)°1.0min timedICAO rules
CHINS4SUNEDVHFright108 (288)°1.0min timedICAO rules
EPH8EPHNDBright66 (246)°< 17999ft1.0min timedICAO rules
EPH8ODESSVHFright76 (256)°< 17999ft1.0min timedICAO rules
EPH8SKYKOVHFleft85 (265)°1.0min timedICAO rules
GLASR1JAKSNVHFright75 (255)°< 17999ft1.0min timedICAO rules
GLASR1LOSTTVHFright42 (222)°< 17999ft1.0min timedICAO rules
GLASR1TEMPLVHFright77 (257)°18000ft - 45000ft1.5min timedICAO rules
HAWKZ7AAYRRVHFleft239 (59)°DME 10.0miICAO rules
HAWKZ7BLYTZVHFleft140 (320)°DME 10.0miICAO rules
HAWKZ7BTGNDBright163 (343)°18000ft - 45000ft1.5min timedICAO rules
HAWKZ7ESLEYVHFright139 (319)°DME 10.0miICAO rules
HAWKZ7HAWKZVHFleft163 (343)°DME 10.0miICAO rules
HAWKZ7KNGDMVHFleft154 (334)°DME 10.0miICAO rules
HAWKZ7LKVNDBleft140 (320)°DME 10.0miICAO rules
HAWKZ7LMTNDBright250 (70)°1.0min timedICAO rules
HAWKZ7WRUSLVHFleft154 (334)°DME 10.0miICAO rules
JAWBN6JAWBNVHFright310 (130)°< 17999ft1.0min timedICAO rules
MARNR7MARNRVHFright312 (132)°DME 10.0miICAO rules
OLM2BTGNDBright163 (343)°18000ft - 45000ft1.5min timedICAO rules
OLM2OLMNDBleft151 (331)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
