San Diego/el Cajon - Gillespie Field
Airport details
| Country | United States of America |
| State | California |
| Region | K2 |
| Airspace | Los Angeles Ctr |
| Municipality | El Cajon |
| Elevation | 388ft (118m) |
| Timezone | GMT -8 |
| Coordinates | 32.82529, -116.97102 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KSEE |
| IATA code | SEE |
| FAA code | SEE |
Communication
| Gillespie Field ATIS | 125.450 |
| Gillespie Field UNICOM | 123.050 |
| Gillespie Field CTAF | 120.700 |
| Gillespie Field DEL | 125.100 |
| Gillespie Field Ground Control | 121.700 |
| Gillespie Field Tower | 120.700 |
| Gillespie Field SOCAL Approach/Departure | 124.350 |
Approach frequencies
| LOC | RW27R | 110.5 | 18.00mi |
Nearby Points of Interest:
Edgemoor Farm Dairy Barn
-Hubert H. Bancroft Ranch House
-Hepner Hall
-Aztec Bowl
-Granger Hall
-El Prado Complex
-California Quadrangle
-Johnson-Taylor Ranch Headquarters
-Park Place Methodist Episcopal Church South
-Ford Building
-Spruce Street Suspension Bridge
-San Diego Athletic Club
-Eagles Hall
-San Diego Trust and Savings Bank Building
-Independent Order of Odd Fellows Building
-Mission Brewery
-Jacob Weinberger United States Courthouse
-Presidio of San Diego
-Pilot
-Casa de Estudillo
-Old Police Headquarters
-Cosmopolitan Hotel and Restaurant
-Marine Corps Recruit Depot San Diego
-Heilman Villas
-Naval Training Center San Diego

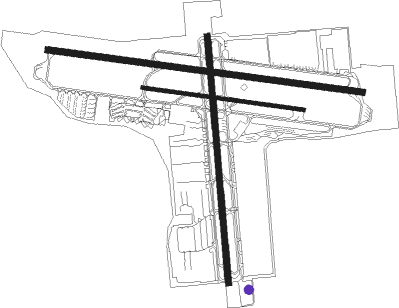

Runway info
Runway 17 / 35  | ||
| length | 1267m (4157ft) | |
| bearing | 180° / 360° | |
| width | 30m (98ft) | |
| surface | asphalt | |
| displ threshold | 137m (449ft) / 209m (686ft) | |
| Runway 9L / 27R | ||
| length | 1626m (5335ft) | |
| bearing | 100° / 280° | |
| width | 30m (98ft) | |
| surface | asphalt | |
| displ threshold | 0m (0ft) / 215m (705ft) | |
| blast zone | 91m (299ft) / 91m (299ft) | |
| Runway 9R / 27L | ||
| length | 834m (2736ft) | |
| bearing | 100° / 280° | |
| width | 18m (59ft) | |
| surface | asphalt | |
| blast zone | 70m (230ft) / 30m (98ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| NKX | MIRAMAR (SAN DIEGO) TACAN | 9.6 | 284° | 109.60 |
| PGY | POGGI (SAN DIEGO) VORTAC | 12.9 | 182° | 116.45 |
| MZB | MISSION BAY (SAN DIEGO) VORTAC | 13.1 | 260° | 117.80 |
| NZY | NORTH ISLAND (SAN DIEGO) TACAN | 14.4 | 243° | 117 |
| NRS | IMPERIAL BEACH TACAN | 17.1 | 208° | 109.20 |
| TIJ | TIJUANA VOR/DME | 17.1 | 176° | 116.50 |
| JLI | JULIAN VORTAC | 27.1 | 51° | 114 |
| OCN | OCEANSIDE VORTAC | 33.5 | 313° | 115.30 |
| NFG | CAMP PENDLETON (OCEANSIDE TACAN | 34.1 | 317° | 111.80 |
| HDF | HOMELAND (RIVERSIDE) VOR | 58.1 | 347° | 113.40 |
| TRM | THERMAL VORTAC | 63.1 | 45° | 116.20 |
| ELB | EL TORO (SANTA ANA) VOR/DME | 63.7 | 318° | 117.20 |
Departure and arrival routes
| Transition altitude | 18000ft |
| Transition level | 18000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW09 (ALL) | |||
| MZB2 | 13mi | 260° | |
| CWARD2 | 79mi | 311° | |
| PADRZ2 | 128mi | 313° | |
| RW17 | |||
| MZB2 | 13mi | 260° | |
| CWARD2 | 79mi | 311° | |
| PADRZ2 | 128mi | 313° | |
| RW27 (ALL) | |||
| MZB2 | 13mi | 260° | |
| CWARD2 | 79mi | 311° | |
| PADRZ2 | 128mi | 313° | |
| RW35 | |||
| MZB2 | 13mi | 260° | |
| CWARD2 | 79mi | 311° | |
| PADRZ2 | 128mi | 313° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW09L | CARIF (121°) | CARIF TOCOD (12mi, 149°) 2400ft |
| RNAV | TOCOD 2400ft TILRE (8mi, 97°) 2400ft ISOKE (4mi, 100°) 613ft (6752mi, 106°) 1900ft MZB (6764mi, 286°) 2700ft MZB (turn) | |
| RW17 | ROBNN (161°) | ROBNN ASIXY (8mi, 179°) 5000ft |
| RNAV | ASIXY 5000ft JUGAL (9mi, 148°) 2500ft TOMTY (3mi, 156°) 1580ft HIRAK (3mi, 156°) 575ft (6751mi, 106°) 1500ft TOCOD (6763mi, 286°) 3000ft TOCOD (turn) |
