Airports for X-Plane

Orlando - Orlando Sanford

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceJacksonville Ctr
MunicipalitySanford
Elevation55ft (17m)
TimezoneGMT -5
Coordinates28.77697, -81.23492
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKSFB
IATA codeSFB
FAA codeSFB

Communication

Orlando Sanford ATIS125.975
Orlando Sanford CTAF120.300
Orlando Sanford Clearance DEL123.975
Orlando Sanford Ground Control121.350
Orlando Sanford SANFORD Tower135.250
Orlando Sanford SANFORD Tower120.300
Orlando Sanford Approach/Departure119.775

Approach frequencies

ILS-cat-IRW27R110.1518.00mi
ILS-cat-IRW09R111.5518.00mi
ILS-cat-IRW09L108.918.00mi
3° GSRW27R110.1518.00mi
3° GSRW09R111.5518.00mi
3° GSRW09L108.918.00mi

Runway info

Runway 9C / 27C
 length1089m (3573ft)
 bearing90° / 270°
 width23m (75ft)
 surfaceasphalt
 blast zone15m (49ft) / 15m (49ft)
Runway 9R / 27L
 length1781m (5843ft)
 bearing90° / 270°
 width23m (75ft)
 surfaceasphalt
 displ threshold256m (840ft) / 0m (0ft)
 blast zone61m (200ft) / 0m (0ft)
Runway 9L / 27R
 length3348m (10984ft)
 bearing90° / 270°
 width46m (150ft)
 surfaceasphalt
 displ threshold305m (1001ft) / 0m (0ft)
 blast zone255m (837ft) / 122m (400ft)
Runway 18 / 36
 length1836m (6024ft)
 bearing180° / 360°
 width46m (150ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)

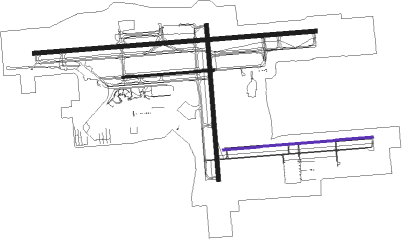

Airport layout - runway 9R / 27L


Taxiway locations

 A  A3  B  B1  B10  B2  B3  B4
 B7  B8  C  E  K  K1  L  M
 P  R  S  S1  S2  S3  S4  S5
 U
Parking locations

 AFA  Cargo  Constant  Gate  Hanger  L3  Million  North
 Overflow  Seminole  Southeast

Nearby beacons

codeidentifierdistbearingfrequency
ORLORLANDO VORTAC15203°112.20
ORHERNY (ORLANDO) NDB19.3216°221
OMNORMOND BEACH VORTAC32.213°112.60
COFPATRICK (COCOA) TACAN46.1131°115
MLBMELBOURNE VOR/DME51.2138°115.85
OCFOCALA VORTAC57.3292°113.70
LALLAKELAND VORTAC62.8225°116
GNWYNDS (GAINESVILLE) NDB72.7314°269

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW09 (ALL)
 SFB123mi95°
RW18
 SFB123mi95°
RW27 (ALL)
 SFB123mi95°
RW36
 SFB123mi95°

STAR starting pointsdistanceinbound heading
ALL
 JOKRS251.533°
 MINEE547.838°
 PRICY158.045°
 SHREK238.2108°
 TTHOR253.3180°
 ALYNA110.7268°
 RIDES152.1351°
 GOOFY750.1352°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09LIPNEC (64°)IPNEC 2800ft
UGMAH (7mi, 360°) 2000ft
RW09LUDUZI (115°)UDUZI 2800ft
UGMAH (6mi, 180°) 2000ft
RW09LUGMAH (91°)UGMAH 2000ft
 RNAVUGMAH 2000ft
OLNAF (6mi, 90°) 1600ft
CUNPA (3mi, 90°) 600ft
KSFB (3mi, 96°) 110ft
(4944mi, 110°) 255ft
UXFIM (4932mi, 290°) 1600ft
UXFIM (turn)
RW09RIPNEC (64°)IPNEC 2800ft
JORVU (6mi, 360°) 2000ft
RW09RJORVU (88°)JORVU 2000ft
RW09RUDUZI (115°)UDUZI 2800ft
JORVU (7mi, 180°) 2000ft
 RNAVJORVU 2000ft
COYVA (7mi, 90°) 1600ft
KSFB (5mi, 85°) 84ft
(4944mi, 110°) 239ft
WEPAT (4933mi, 290°) 1600ft
WEPAT (turn)
RW18DIGGR (194°)DIGGR
GOPCE (7mi, 216°) 2000ft
RW18SMYRA (227°)SMYRA
GOPCE (13mi, 260°) 2000ft
RW18WORMS (148°)WORMS
GOPCE (8mi, 108°) 2000ft
 RNAVGOPCE 2000ft
ZUBAV (6mi, 180°) 1600ft
KSFB (5mi, 180°) 93ft
(4944mi, 110°) 600ft
GOPCE (4945mi, 290°) 2100ft
GOPCE (turn)
RW27LGACNO (293°)GACNO
WEPAT (6mi, 345°) 1600ft
RW27LSMYRA (227°)SMYRA
VOFOS (8mi, 182°) 2000ft
WEPAT (6mi, 191°) 1600ft
RW27LWEPAT (272°)WEPAT 1600ft
 RNAVWEPAT 1600ft
ONBEW (6mi, 270°) 1600ft
LOBPI (3mi, 270°) 700ft
KSFB (3mi, 277°) 69ft
(4944mi, 110°) 420ft
JORVU (4956mi, 289°) 2000ft
JORVU (turn)
RW27RGACNO (293°)GACNO
UXFIM (7mi, 351°) 1600ft
RW27RSMYRA (227°)SMYRA
VOFOS (8mi, 182°) 2000ft
UXFIM (5mi, 187°) 1600ft
RW27RUXFIM (269°)UXFIM 1600ft
 RNAVUXFIM 1600ft
UTIMY (6mi, 270°) 1600ft
KSFB (5mi, 267°) 86ft
(4944mi, 110°) 245ft
UGMAH (4956mi, 289°) 2000ft
UGMAH (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALYNA1GRDONVHFright19 (199)°DME 10.0miICAO rules
ALYNA1SURFRVHFleft79 (259)°DME 10.0miICAO rules
ALYNA1TIMIEVHFleft19 (199)°DME 10.0miICAO rules
GOOFY7BAIRNVHFright162 (342)°< 17999ft1.0min timedICAO rules
JOKRS2FAZESVHFleft169 (349)°DME 10.0miICAO rules
JOKRS2MOANSVHFleft183 (3)°< 17999ft1.0min timedICAO rules
MINEE5DOWNNVHFleft183 (3)°1.0min timedICAO rules
MINEE5MINEEVHFright240 (60)°< 17999ft1.0min timedICAO rules
MINEE5MOANSVHFleft183 (3)°< 17999ft1.0min timedICAO rules
PRICY1CHIVEVHFright273 (93)°DME 10.0miICAO rules
PRICY1DAAWGVHFright272 (92)°DME 10.0miICAO rules
PRICY1DECKSVHFright276 (96)°DME 10.0miICAO rules
PRICY1DOZESVHFright250 (70)°DME 10.0miICAO rules
PRICY1PRICYVHFright252 (72)°DME 10.0miICAO rules
RIDES1RIDESVHFleft164 (344)°DME 10.0miICAO rules
RIDES1ZALUPVHFright125 (305)°DME 10.0miICAO rules
SHREK2BITTEVHFright304 (124)°DME 10.0miICAO rules
SHREK2WANDDVHFright310 (130)°DME 10.0miICAO rules
TTHOR2LPERDVHFright14 (194)°DME 10.0miICAO rules
TTHOR2WEEEKVHFleft2 (182)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
