Airports for X-Plane

San Francisco - San Francisco Intl

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceOakland Ctr
MunicipalitySan Mateo County
Elevation13ft (4m)
TimezoneGMT -8
Coordinates37.63287, -122.38917
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKSFO
IATA codeSFO
FAA codeSFO

Communication

San Francisco Intl ATIS118.850
San Francisco Intl AWOS 1127.275
San Francisco Intl ATIS113.700
San Francisco Intl ATIS115.800
San Francisco Intl UNICOM122.950
San Francisco Intl Clearance DEL118.200
San Francisco Intl Ground Control121.800
San Francisco Intl Ground Control128.650
San Francisco Intl Tower120.500
San Francisco Intl NORCAL Approach128.325
San Francisco Intl NORCAL Approach134.500
San Francisco Intl NORCAL Approach135.650
San Francisco Intl NORCAL Approach133.950
San Francisco Intl NORCAL Departure120.900
San Francisco Intl NORCAL Departure135.100

Approach frequencies

ILS-cat-IIIRW28R111.718.00mi
ILS-cat-IIRW28L109.5518.00mi
ILS-cat-IRW19L108.918.00mi
3° GSRW28R111.718.00mi
3° GSRW19L108.918.00mi
2.8° GSRW28L109.5518.00mi

Runway info

Runway 10L / 28R
 length3618m (11870ft)
 bearing113° / 293°
 width61m (200ft)
 surfaceasphalt
 displ threshold0m (0ft) / 90m (295ft)
 blast zone250m (820ft) / 100m (328ft)
Runway 10R / 28L
 length3465m (11368ft)
 bearing113° / 293°
 width61m (200ft)
 surfaceasphalt
 displ threshold0m (0ft) / 90m (295ft)
 blast zone250m (820ft) / 100m (328ft)
Runway 1R / 19L
 length2644m (8675ft)
 bearing34° / 214°
 width61m (200ft)
 surfaceasphalt
 displ threshold170m (558ft) / 0m (0ft)
Runway 1L / 19R
 length2339m (7674ft)
 bearing34° / 214°
 width61m (200ft)
 surfaceasphalt
 displ threshold195m (640ft) / 0m (0ft)

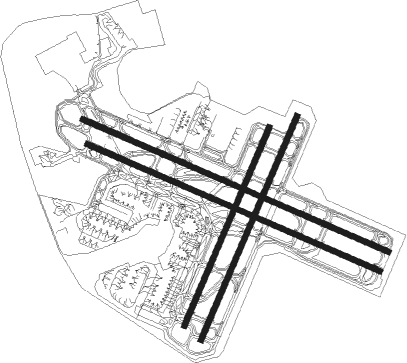

Airport layout


Taxiway locations

 A  A1  A2  B  B1  C  C1  D
 E  F  F1  F2  G  H  K  L
 M  M1  N  P  Q  R  S  S1
 S3  S4  T  U  V  W  Z  Z1
Parking locations

 Corporate  East  GA  Gate  North  Ramp  West

Nearby beacons

codeidentifierdistbearingfrequency
SFOSAN FRANCISCO VOR/DME1131°115.80
OAKOAKLAND VOR/DME9.661°116.80
SAUSAUSALITO VOR/DME14.7329°116.20
OSIWOODSIDE VOR/DME15.3156°113.90
NUQMOFFETT (MOUNTAIN VIEW) TACAN19.8121°117.60
SJCSAN JOSE VOR/DME26.2120°114.10
CCRCONCORD VOR/DME29.640°117
SGDSCAGGS ISLAND (NAPA) VORTAC32.82°112.10
LVREIGA (LIVERMORE) NDB33.785°374
PYEPOINT REYES VOR/DME35.1313°113.70
SUUTRAVIS (FAIRFIELD) TACAN42.336°116.60
STSROSA DME56.2334°116.15
SACSACRAMENTO VORTAC62.746°115.20
SNSSALINAS VORTAC69.2141°117.30

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW01 (ALL)
 NIITE3, TRUKN273mi67°
 SSTIK5142mi148°
 GAPP7, SFO412mi291°
RW10 (ALL)
 GAPP712mi291°
 MOLEN895mi328°
RW10L
 CIITY373mi67°
 SAHEY496mi132°
RW10R
 CIITY373mi67°
 SAHEY496mi132°
RW19 (ALL)
 CIITY373mi67°
 SAHEY496mi132°
 GAPP712mi291°
 MOLEN895mi328°
RW28 (ALL)
 TRUKN2, SNTNA2, NIITE373mi67°
 WESLA5142mi148°
 GNNRR2229mi256°
 SFO4, GAPP712mi291°
 MOLEN895mi328°

STAR starting pointsdistanceinbound heading
ALL
 PIRAT231.952°
 BDEGA320.9133°
 PYE3, STINS435.1133°
 MOD968.0270°
 RISTI140.7272°
 SERFR4106.0327°
 BSR394.2333°
RW19 (ALL)
 STLER320.9133°
 ALWYS267.9270°
 WWAVS158.5331°
RW28 (ALL)
 DYAMD594.4268°
 YOSEM3172.3268°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10LSTINS (117°)STINS
NORMM (9mi, 126°) 3500ft
 RNAVNORMM 3500ft
XATTU (6mi, 112°) 1800ft
KSFO (6mi, 110°) 61ft
(6913mi, 107°) 413ft
DUMBA (6902mi, 287°) 4000ft
DUMBA (turn)
RW10RYSTINS (117°)STINS
DOTNE (9mi, 126°) 3500ft
 RNAVDOTNE 3500ft
JULOS (6mi, 113°) 1900ft
KSFO (6mi, 109°) 67ft
(6913mi, 107°) 413ft
DUMBA (6902mi, 287°) 4000ft
DUMBA (turn)
RW10RZSTINS (117°)STINS
DOTNE (9mi, 126°) 3500ft
 RNAVDOTNE 3500ft
JULOS (6mi, 113°) 1900ft
KSFO (6mi, 109°) 67ft
IGUKE (7mi, 116°)
DUMBA (9mi, 112°) 3600ft
DUMBA (turn)
RW19LUPEND (216°)UPEND
BERKS (12mi, 214°) 5000ft
 RNAVBERKS 5000ft
SHAKE (7mi, 214°) 2800ft
ROGGE (3mi, 214°) 1800ft
KSFO (6mi, 225°) 66ft
(6913mi, 107°) 500ft
DUMBA (6902mi, 287°) 3000ft
DUMBA (turn)
RW19RUPEND (216°)UPEND
HITOD (11mi, 214°) 4000ft
 RNAVHITOD 4000ft
ESUME (8mi, 214°) 2800ft
FOBOT (5mi, 214°) 1100ft
KSFO (3mi, 231°) 65ft
(6913mi, 107°) 600ft
KATFH (6901mi, 287°) 3000ft
KATFH (turn)
RW28LARCHI (285°)ARCHI 7000ft
PONKE (6mi, 255°) 6000ft
WETOR (3mi, 293°) 5000ft
ROKME (3mi, 293°) 4000ft
HEMAN (3mi, 293°) 3100ft
RW28LEDDYY (314°)EDDYY 6000ft
SIDBY (5mi, 341°) 4000ft
HEMAN (5mi, 341°) 3100ft
RW28LFAITH (294°)FAITH
DIVEC (4mi, 293°) 7000ft
PONKE (3mi, 293°) 6000ft
WETOR (3mi, 293°) 5000ft
ROKME (3mi, 293°) 4000ft
HEMAN (3mi, 293°) 3100ft
RW28LSIDBY (307°)SIDBY
HEMAN (5mi, 341°) 3100ft
 RNAVHEMAN 3100ft
DUYET (4mi, 293°) 1800ft
NEPIC (2mi, 293°) 1080ft
KSFO (5mi, 297°) 66ft
(6913mi, 107°) 1020ft
OLYMM (6923mi, 287°) 4000ft
OLYMM (turn) 4000ft
RW28RXANETE (291°)ANETE 7000ft
FATUS (3mi, 290°) 6000ft
HEGOT (3mi, 290°) 5000ft
 RNAVHEGOT 5000ft
WASOP (3mi, 290°) 4000ft
MIUKE (3mi, 290°) 3000ft
GOBEC (4mi, 290°) 1800ft
DARNE (2mi, 290°) 1140ft
CFFKC (3mi, 290°) 68ft
(6912mi, 107°) 3000ft
OAK (6903mi, 287°)
OAK (turn)
RW28RYARCHI (285°)ARCHI 7000ft
WIBNI (8mi, 279°) 4900ft
GUTTS (6mi, 283°) 3400ft
RW28RYEDDYY (314°)EDDYY 6000ft
SIDBY (5mi, 341°) 4000ft
GUTTS (6mi, 353°) 3400ft
RW28RYSIDBY (307°)SIDBY
GUTTS (6mi, 353°) 3400ft
 RNAVGUTTS 3400ft
DONNG (5mi, 293°) 1800ft
JOSUF (2mi, 279°)
FABLA (2mi, 279°)
KSFO (4mi, 297°) 68ft
VIKYU (11mi, 291°) 3000ft
VIKYU (turn)
RW28RZARCHI (285°)ARCHI 7000ft
ZILED (4mi, 273°) 6000ft
GIRRR (3mi, 273°) 5000ft
DUMBA (3mi, 273°) 4000ft
CEPIN (4mi, 293°) 3000ft
RW28RZDUMBA (294°)DUMBA
CEPIN (4mi, 293°) 3000ft
RW28RZEDDYY (314°)EDDYY 6000ft
SIDBY (5mi, 341°) 4000ft
CEPIN (5mi, 342°) 3000ft
RW28RZSIDBY (307°)SIDBY
CEPIN (5mi, 342°) 3000ft
 RNAVCEPIN 3000ft
AXMUL (5mi, 293°) 1800ft
KSFO (7mi, 295°) 68ft
(6913mi, 107°) 213ft
VIKYU (6920mi, 287°) 3200ft
VIKYU (turn) 3200ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALWYS2ALWYSVHFleft67 (247)°DME 10.0miICAO rules
ALWYS2HEFLYVHFleft89 (269)°DME 10.0miICAO rules
ALWYS2INYOEVHFleft66 (246)°DME 6.0miICAO rules
BDEGA3AMAKRVHFright301 (121)°DME 10.0miICAO rules
BDEGA3BGGLOVHFright333 (153)°DME 10.0miICAO rules
BDEGA3LOZITVHFright333 (153)°DME 10.0miICAO rules
BDEGA3MLBECVHFright333 (153)°DME 10.0miICAO rules
BSR3ANJEEVHFleft151 (331)°< 17999ft1.0min timedICAO rules
BSR3BSRNDBleft141 (321)°< 17999ft1.0min timedICAO rules
BSR3SKUNKVHFleft151 (331)°< 17999ft1.0min timedICAO rules
DYAMD5ALWYSVHFleft67 (247)°DME 10.0miICAO rules
DYAMD5FLOWZVHFleft67 (247)°DME 10.0miICAO rules
DYAMD5INYOEVHFleft66 (246)°DME 6.0miICAO rules
MOD9CEDESVHFleft65 (245)°1.0min timedICAO rules
MOD9GROANVHFleft107 (287)°1.0min timedICAO rules
MOD9INYOEVHFleft66 (246)°DME 6.0miICAO rules
MOD9MODNDBleft64 (244)°1.0min timedICAO rules
PIRAT2HUNTS0180 (0)°DME timedICAO rules
PIRAT2PASIFVHFleft239 (59)°DME 10.0miICAO rules
PIRAT2PIRATVHFleft239 (59)°DME 10.0miICAO rules
PIRAT2SUPERVHFleft274 (94)°DME 11.0miICAO rules
PYE3PYENDBright325 (145)°1.0min timedICAO rules
PYE3STINSVHFright324 (144)°1.0min timedICAO rules
SERFR4EPICKVHFleft153 (333)°DME 10.0miICAO rules
SERFR4NRRLIVHFleft134 (314)°DME 10.0miICAO rules
SERFR4SERFRVHFleft134 (314)°DME 10.0miICAO rules
SERFR4WWAVSVHFleft133 (313)°DME 10.0miICAO rules
STINS4ENINDBright202 (22)°1.0min timedICAO rules
STINS4PYENDBright325 (145)°1.0min timedICAO rules
STINS4STINSVHFright324 (144)°1.0min timedICAO rules
STLER3AMAKRVHFright301 (121)°DME 10.0miICAO rules
STLER3BGGLOVHFright333 (153)°DME 10.0miICAO rules
STLER3LOZITVHFright333 (153)°DME 10.0miICAO rules
STLER3MLBECVHFright333 (153)°DME 10.0miICAO rules
WWAVS1NRRLIVHFleft134 (314)°DME 10.0miICAO rules
WWAVS1SERFRVHFleft134 (314)°DME 10.0miICAO rules
WWAVS1WPOUTVHFleft126 (306)°DME 10.0miICAO rules
WWAVS1WWAVSVHFleft133 (313)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
