Airports for X-Plane

San Jose - Norman Y Mineta San Jose Intl

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceOakland Ctr
MunicipalitySan Jose
Elevation62ft (19m)
TimezoneGMT -8
Coordinates37.36267, -121.92911
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKSJC
IATA codeSJC
FAA codeSJC

Communication

Norman Y Mineta San Jose Intl ATIS126.950
Norman Y Mineta San Jose Intl CTAF124.000
Norman Y Mineta San Jose Intl Clearance DEL118.000
Norman Y Mineta San Jose Intl Ground Control121.700
Norman Y Mineta San Jose Intl Tower124.000
Norman Y Mineta San Jose Intl NORCAL Approach126.475
Norman Y Mineta San Jose Intl NORCAL Approach134.500
Norman Y Mineta San Jose Intl NORCAL Approach120.100
Norman Y Mineta San Jose Intl NORCAL Approach124.525
Norman Y Mineta San Jose Intl NORCAL Approach125.350
Norman Y Mineta San Jose Intl NORCAL Departure121.300

Approach frequencies

ILS-cat-IIRW30L110.918.00mi
ILS-cat-IRW12R110.918.00mi
3° GSRW30L110.918.00mi
3° GSRW12R110.918.00mi

Runway info

Runway 12R / 30L
 length3354m (11004ft)
 bearing132° / 312°
 width46m (151ft)
 surfaceconcrete
 displ threshold395m (1296ft) / 773m (2536ft)
 blast zone61m (200ft) / 18m (59ft)
Runway 12L / 30R
 length3354m (11004ft)
 bearing132° / 312°
 width46m (151ft)
 surfaceconcrete
 displ threshold398m (1306ft) / 773m (2536ft)
 blast zone40m (131ft) / 44m (144ft)

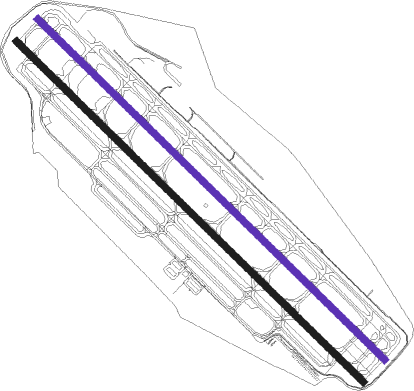

Airport layout - runway 12L / 30R


Taxiway locations

 A  A1  B  C  D  E  F  G
 H  J  K  L  M  N  V  W
 W1  Y  Z
Parking locations

 Atlantic  GA  Gate  Landmark  LSG  Menzies  North  San
 South  Transient

Nearby beacons

codeidentifierdistbearingfrequency
SJCSAN JOSE VOR/DME1308°114.10
NUQMOFFETT (MOUNTAIN VIEW) TACAN7.4299°117.60
OSIWOODSIDE VOR/DME16.9275°113.90
LVREIGA (LIVERMORE) NDB22.937°374
OAKOAKLAND VOR/DME25.9321°116.80
SFOSAN FRANCISCO VOR/DME26.2300°115.80
SAUSAUSALITO VOR/DME40.9310°116.20
CCRCONCORD VOR/DME41.3350°117
MRMUNSO (MONTEREY) NDB44.5181°385
SNSSALINAS VORTAC44.7155°117.30
MODMODESTO VOR/DME48.975°114.60
SUUTRAVIS (FAIRFIELD) TACAN53359°116.60
SGDSCAGGS ISLAND (NAPA) VORTAC53.3331°112.10
UADCHUALAR (SALINAS) NDB56.7152°263
LINLINDEN VOR/DME61.352°114.80
PYEPOINT REYES VOR/DME61.9307°113.70

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW12 (ALL)
 ALMDN4, BMRNG466mi47°
 TECKY3130mi128°
RW30L
 SJC367mi119°
 TECKY3130mi128°
 LOUPE515mi352°
RW30R
 SJC367mi119°
 TECKY3130mi128°
 LOUPE515mi352°

STAR starting pointsdistanceinbound heading
ALL
 BRIXX326.1120°
 FRLON250.8120°
 BRINY2, PYE361.9127°
 RISTI123.9238°
 ROBIE594.0326°
RW12 (ALL)
 RAZRR441.5288°
 SILCN557.1330°
RW30 (ALL)
 RAZRR441.5288°
 SILCN557.1330°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12LZARTAQ (132°)ARTAQ
OMSEE (2mi, 129°) 1800ft
HINIR (2mi, 132°) 1100ft
RW12LZHITIR (63°)HITIR 4000ft
ZORSA (3mi, 312°) 3000ft
NIBUY (4mi, 20°) 1800ft
HINIR (2mi, 103°) 1100ft
RW12LZWADVA (96°)WADVA 4500ft
RERAE (4mi, 88°) 3500ft
NIBUY (5mi, 77°) 1800ft
HINIR (2mi, 103°) 1100ft
 RNAVHINIR 1100ft
KSJC (4mi, 134°) 95ft
COKOR (6mi, 132°)
GILRO (19mi, 131°) 4600ft
GILRO (turn)
RW12RZARTAQ (132°)ARTAQ
SUNNE (2mi, 132°) 1800ft
FOXAG (2mi, 132°) 1100ft
RW12RZHITIR (63°)HITIR 4000ft
ZORSA (3mi, 312°) 3000ft
PUAKO (4mi, 21°) 1800ft
FOXAG (2mi, 104°) 1100ft
RW12RZWADVA (96°)WADVA 4500ft
RERAE (4mi, 88°) 3500ft
PUAKO (5mi, 78°) 1800ft
FOXAG (2mi, 104°) 1100ft
 RNAVFOXAG 1100ft
KSJC (4mi, 132°) 96ft
HOSBO (8mi, 133°)
GILRO (17mi, 131°) 4600ft
GILRO (turn)
RW30LYBORED (277°)BORED
SWIGS (10mi, 240°) 5200ft
KLIDE (4mi, 240°) 4000ft
ZULUP (3mi, 313°) 2800ft
RW30LYKLIDE (313°)KLIDE 4000ft
ZULUP (3mi, 313°) 2800ft
 RNAVZULUP 2800ft
HIVAK (4mi, 313°) 2600ft
FORUL (5mi, 312°) 1000ft
KSJC (3mi, 313°) 111ft
(6898mi, 107°) 257ft
MUSSK (6901mi, 287°) 2300ft
MUSSK (turn)
RW30LZBORED (277°)BORED 5200ft
SWIGS (10mi, 240°) 5200ft
KLIDE (4mi, 240°) 4000ft
ZULUP (3mi, 313°) 3600ft
HOSBO (4mi, 313°) 2600ft
WOXAR (3mi, 312°) 1600ft
RW30LZJILNA (61°)JILNA 7000ft
YADUT (7mi, 103°) 5300ft
HEPAP (2mi, 86°) 4700ft
FODPA (3mi, 68°) 3400ft
JEGSA (3mi, 68°) 2800ft
WOXAR (3mi, 14°) 1600ft
RW30LZKLIDE (313°)KLIDE 4000ft
ZULUP (3mi, 313°) 3600ft
HOSBO (4mi, 313°) 2600ft
WOXAR (3mi, 312°) 1600ft
 RNAVWOXAR 1600ft
KSJC (5mi, 313°) 111ft
ARTAQ (8mi, 312°) 2000ft
ARTAQ (turn)
RW30RYBORED (277°)BORED
SWIGS (10mi, 240°) 5200ft
KLIDE (4mi, 240°) 4000ft
ZULUP (3mi, 313°) 3600ft
RW30RYKLIDE (313°)KLIDE 4000ft
ZULUP (3mi, 313°) 3600ft
 RNAVZULUP 3600ft
KIRVE (4mi, 314°) 2600ft
COKOR (2mi, 313°) 2000ft
HILUD (3mi, 312°) 960ft
KSJC (3mi, 311°) 110ft
(6898mi, 107°) 255ft
MUSSK (6901mi, 287°) 2300ft
MUSSK (turn)
RW30RZBORED (277°)BORED 5200ft
SWIGS (10mi, 240°) 5200ft
KLIDE (4mi, 240°) 4000ft
ZULUP (3mi, 313°) 3600ft
KIRVE (4mi, 314°) 2600ft
TUZGY (4mi, 313°) 1600ft
RW30RZJILNA (61°)JILNA 7000ft
YADUT (7mi, 103°) 5300ft
HEPAP (2mi, 86°) 4700ft
FODPA (3mi, 68°) 3400ft
SIBAE (3mi, 68°) 2800ft
TUZGY (3mi, 14°) 1600ft
RW30RZKLIDE (313°)KLIDE 4000ft
ZULUP (3mi, 313°) 3600ft
KIRVE (4mi, 314°) 2600ft
TUZGY (4mi, 313°) 1600ft
 RNAVTUZGY 1600ft
KSJC (5mi, 311°) 110ft
(6898mi, 107°) 600ft
ARTAQ (6901mi, 287°) 2000ft
ARTAQ (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BRINY2BRINYVHFright237 (57)°< 17999ft1.0min timedICAO rules
BRINY2PYENDBright325 (145)°1.0min timedICAO rules
BRIXX3ZINNNVHFright345 (165)°DME 10.0miICAO rules
PYE3PYENDBright325 (145)°1.0min timedICAO rules
PYE3STINSVHFright324 (144)°1.0min timedICAO rules
RAZRR4RAZRRVHFleft70 (250)°DME 10.0miICAO rules
RAZRR4SCOPRVHFleft85 (265)°DME 8.0miICAO rules
ROBIE5GILROVHFleft121 (301)°< 17999ft1.0min timedICAO rules
ROBIE5ROBIEVHFright128 (308)°1.5min timedICAO rules
SILCN5TROXXVHFleft129 (309)°DME 10.0miICAO rules
SILCN5WLSSNVHFleft148 (328)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
