Airports for X-Plane

San Antonio - Lackland Afb / Kelly Field

Airport details

CountryUnited States of America
StateTexas
RegionK4
AirspaceHouston Oceanic Ctr
MunicipalitySan Antonio
Elevation687ft (209m)
TimezoneGMT -6
Coordinates29.38423, -98.58112
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKSKF
IATA codeSKF
FAA codeSKF

Communication

Lackland AFB / Kelly Field ATIS120.450
Lackland AFB / Kelly Field Ground Control121.800
Lackland AFB / Kelly Field KELLY Tower124.300
Lackland AFB / Kelly Field SAN ANTONIO Approach124.500
Lackland AFB / Kelly Field SAN ANTONIO Approach127.100
Lackland AFB / Kelly Field SAN ANTONIO Approach118.050
Lackland AFB / Kelly Field SAN ANTONIO Approach125.100
Lackland AFB / Kelly Field SAN ANTONIO Departure125.700

Approach frequencies

ILS-cat-IRW34110.718.00mi
ILS-cat-IRW16110.118.00mi
3° GSRW34110.718.00mi
3° GSRW16110.118.00mi

Runway info

Runway 16 / 34
 length3531m (11585ft)
 bearing160° / 340°
 width46m (150ft)
 surfaceconcrete
 blast zone46m (151ft) / 255m (837ft)

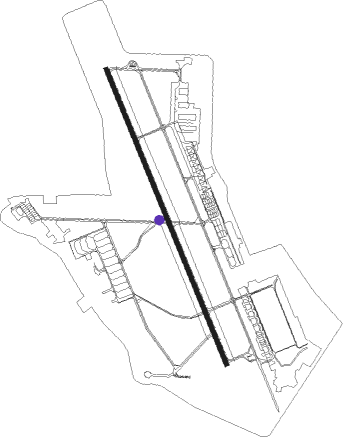

Airport layout - taxiway location G


Taxiway locations

 A  A1  A2  A3  B  C  D  E
 F  G  J  K
Parking locations

 149  AFRS  Atlantic  Boeing  Cargo  Terminal

Nearby beacons

codeidentifierdistbearingfrequency
KSYKELLY (SAN ANTONIO) TACAN0.40°112
SSFSTINSON (SAN ANTONIO) VOR10.4132°108.40
ANALAMO (SAN ANTONIO) NDB13.43°368
SATSAN ANTONIO VORTAC16.825°116.80
RNDRANDOLPH VORTAC17.465°112.30
DHKRANDOLPH TACAN18.764°109.90
HHHDEVINE NDB23.8236°359
CSICENTER POINT (KERRVILLE) VORTAC46.2310°117.50
RUGARYS (AUSTIN) NDB47.748°272
STVSTONEWALL VORTAC49.8351°113.80
THXTHREE RIVERS VORTAC57.4154°111.40
COTCOTULLA VORTAC62.1210°115.80

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
ALL
 CSI246.2130°
 STV149.8171°
 BRAUN3, MARCS148.6234°
 LEMIG124.8349°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16KICED (122°)KICED 4100ft
WURON (10mi, 101°) 4100ft
ODUYU (4mi, 100°) 3100ft
FAMDO (4mi, 100°) 3000ft
RW16REUBE (154°)REUBE 3100ft
SODEE (7mi, 141°) 3100ft
FAMDO (5mi, 160°) 3000ft
 RNAVFAMDO 3000ft
ZILEN (6mi, 160°) 2400ft
KSKF (6mi, 160°) 747ft
(5854mi, 107°) 1500ft
FITER (5851mi, 286°) 3000ft
FITER (turn) 4000ft
RW34CEPRO (340°)CEPRO 2700ft
RW34ZEGVI (16°)ZEGVI 2700ft
CEPRO (9mi, 74°) 2700ft
 RNAVCEPRO 2700ft
WUKEN (8mi, 340°) 2600ft
KSKF (7mi, 340°) 720ft
(5854mi, 107°) 1090ft
MONST (5856mi, 287°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CSI2CSINDBleft280 (100)°1.0min timedICAO rules
LEMIG1LEMIGVHFright175 (355)°< 17999ft1.0min timedICAO rules
MARCS1CRAYSVHFright79 (259)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
