Airports for X-Plane

Sarasota/bradenton - Sarasota Bradenton Intl

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceMiami Oceanic Ctr
MunicipalityManatee County
Elevation28ft (9m)
TimezoneGMT -5
Coordinates27.39544, -82.55439
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKSRQ
IATA codeSRQ
FAA codeSRQ

Communication

Sarasota Bradenton Intl ATIS124.750
Sarasota Bradenton Intl CTAF120.100
Sarasota Bradenton Intl UNICOM122.950
Sarasota Bradenton Intl Clearance DEL118.250
Sarasota Bradenton Intl Ground Control121.900
Sarasota Bradenton Intl Tower120.100
Sarasota Bradenton Intl TAMPA Approach119.650
Sarasota Bradenton Intl TAMPA Approach124.950
Sarasota Bradenton Intl TAMPA Departure119.650
Sarasota Bradenton Intl TAMPA Departure124.950

Approach frequencies

ILS-cat-IRW14111.318.00mi
ILS-cat-IRW32109.718.00mi
3° GSRW14111.318.00mi
3° GSRW32109.718.00mi

Runway info

Runway 14 / 32
 length2905m (9531ft)
 bearing131° / 311°
 width46m (150ft)
 surfaceasphalt
 displ threshold411m (1348ft) / 351m (1152ft)
 blast zone61m (200ft) / 61m (200ft)
Runway 4 / 22
 length1528m (5013ft)
 bearing41° / 221°
 width46m (150ft)
 surfaceasphalt

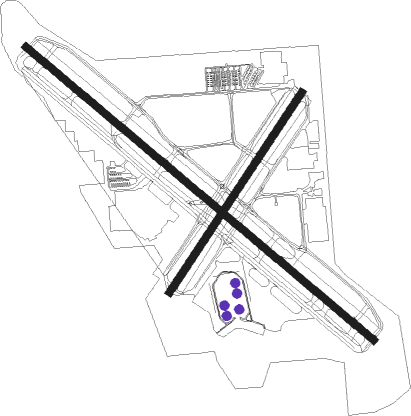

Airport layout - parking location GATE


Taxiway locations

 04  32  A  B  C  F
Parking locations

 GA1  GA2  GA3  GA4  GA5  GA6  GATE  MIL1
 MIL2  New

Nearby beacons

codeidentifierdistbearingfrequency
SRQSARASOTA VOR/DME0.8321°117
MCFMACDILL (TAMPA) TACAN285°111
PIESAINT PETERSBURG VORTAC31.5346°116.40
PICAPOK(ST PETERSBURG-CLEARWATER NDB36.8346°360
TPCOSME (TAMPA) NDB41.42°368
PGDPUNTA GORDA VOR41.6130°110.20
LALLAKELAND VORTAC45.642°116
FMCALOO (FORT MYERS) NDB61.9146°341
RSWLEE COUNTY (FORT MYERS) VORTAC66.6138°111.80

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW14
 SRKUS491mi283°
RW22
 SRKUS491mi283°
RW32
 SRKUS491mi283°

STAR starting pointsdistanceinbound heading
ALL
 RAYZZ245.1130°
RW14
 TEEGN358.6143°
 LUBBR251.5216°
 TRAPR345.6222°
RW32
 TEEGN358.6143°
 LUBBR251.5216°
 TRAPR345.6222°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04SRQ (141°)SRQ
BAYDA (12mi, 217°) 3000ft
BAYDA (turn) 3000ft
RW04VIOLA (333°)VIOLA
WERPI (21mi, 306°) 3000ft
BAYDA (5mi, 325°) 3000ft
 RNAVBAYDA 3000ft
CALCA (6mi, 41°) 1700ft
OSAXE (2mi, 41°) 1000ft
KSRQ (3mi, 40°) 79ft
(5008mi, 108°) 317ft
RITLE (5006mi, 288°)
PAIRS (8mi, 15°) 3000ft
PAIRS (turn) 3000ft
RW14PIE (166°)PIE
PASOE (22mi, 186°) 2000ft
RW14SRQ (141°)SRQ
PASOE (12mi, 310°) 2000ft
PASOE (turn) 2000ft
 RNAVPASOE 2000ft
FRUGL (6mi, 131°) 2000ft
ETIGY (5mi, 131°) 560ft
KSRQ (2mi, 130°) 77ft
(5008mi, 108°) 223ft
GINSE (5006mi, 288°)
MURDO (10mi, 101°) 3000ft
MURDO (turn)
RW22BRDGE (262°)BRDGE
ERICO (16mi, 290°) 2000ft
RW22PIE (166°)PIE
ERICO (26mi, 143°) 2000ft
 RNAVERICO 2000ft
DIRAY (6mi, 221°) 1800ft
RITLE (3mi, 221°) 1000ft
KSRQ (3mi, 222°) 81ft
(5008mi, 108°) 303ft
BAYDA (5015mi, 288°) 2000ft
BAYDA (turn)
RW32SABEE (310°)SABEE
FAXID (15mi, 309°) 2000ft
RW32SRQ (141°)SRQ
FAXID (13mi, 132°) 2000ft
FAXID (turn) 2000ft
 RNAVFAXID 2000ft
RINGY (6mi, 311°) 1800ft
ZALDI (4mi, 311°) 540ft
KSRQ (2mi, 312°) 80ft
(5008mi, 108°) 227ft
ACIPU (5011mi, 288°)
PAIRS (10mi, 45°) 3000ft
PAIRS (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
LUBBR2LUBBRVHFright4 (184)°DME 8.0miICAO rules
RAYZZ2DAAWGVHFright272 (92)°DME 10.0miICAO rules
RAYZZ2RAYZZVHFright270 (90)°DME 10.0miICAO rules
TEEGN3AVTARVHFright347 (167)°DME 7.0miICAO rules
TRAPR3TRAPRVHFright357 (177)°DME 8.0miICAO rules
*) magnetic outbound (inbound) holding course
