Airports for X-Plane

Santa Rosa - Charles M. Schulz - Sonoma Co

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceOakland Ctr
MunicipalitySonoma County
Elevation125ft (38m)
TimezoneGMT -8
Coordinates38.50968, -122.81290
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKSTS
IATA codeSTS
FAA codeSTS

Communication

Charles M. Schulz - Sonoma Co ATIS120.550
Charles M. Schulz - Sonoma Co CTAF118.500
Charles M. Schulz - Sonoma Co UNICOM122.950
Charles M. Schulz - Sonoma Co Ground Control121.900
Charles M. Schulz - Sonoma Co Tower118.500
Charles M. Schulz - Sonoma Co Oakland ARTCC127.800

Approach frequencies

ILS-cat-IRW32109.318.00mi
3° GSRW32109.318.00mi

Runway info

Runway 14 / 32
 length1832m (6010ft)
 bearing152° / 332°
 width46m (151ft)
 surfaceasphalt
 blast zone61m (200ft) / 61m (200ft)
Runway 2 / 20
 length1587m (5207ft)
 bearing35° / 215°
 width30m (100ft)
 surfaceasphalt
 blast zone0m (0ft) / 58m (190ft)

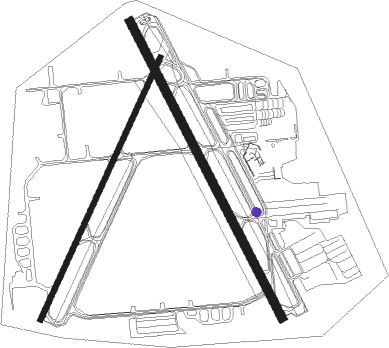

Airport layout - taxiway location A


Taxiway locations

 A  A1  A2  A3  A4  A5  A6  B
 B1  B2  D  E  H  K  Q  R
 Z
Parking locations

 Gate  Kaiser  North-East  Sonoma

Nearby beacons

codeidentifierdistbearingfrequency
STSROSA DME0.1123°116.15
PYEPOINT REYES VOR/DME25.9187°113.70
SGDSCAGGS ISLAND (NAPA) VORTAC28.6127°112.10
ENIMENDOCINO (UKIAH) VORTAC39.1320°112.30
SAUSAUSALITO VOR/DME41.6156°116.20
SUUTRAVIS (FAIRFIELD) TACAN43.8107°116.60
CCRCONCORD VOR/DME45.7121°117
ILAWILLIAMS VORTAC49.854°114.40
UKKEARN (UKIAH) NDB50.1331°371
OAKOAKLAND VOR/DME54.6143°116.80
SFOSAN FRANCISCO VOR/DME57.3154°115.80

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW02
 CHRLY743mi328°
RW14
 CHRLY743mi328°
RW20
 CHRLY743mi328°
RW32
 CHRLY743mi328°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02BOARS (48°)BOARS
YAPUB (10mi, 62°) 3000ft
RW02PYE (7°)PYE
YAPUB (15mi, 341°) 3000ft
 RNAVYAPUB 3000ft
NAYIR (7mi, 35°) 2000ft
ZASBU (4mi, 35°) 800ft
ZIVMA (1mi, 35°) 448ft
(6913mi, 107°) 500ft
UVNOQ (6907mi, 287°)
CABEX (19mi, 300°) 6000ft
CABEX (turn)
RW14ENI (140°)ENI
CABEX (18mi, 140°) 5600ft
LOZWU (5mi, 109°) 5000ft
RW14LAPED (182°)LAPED
FIPUM (14mi, 208°) 6500ft
LOZWU (5mi, 215°) 5000ft
RW14LOZWU (150°)LOZWU 5000ft
 RNAVLOZWU 5000ft
EHETY (7mi, 169°) 3300ft
UCEVE (5mi, 135°) 1700ft
ACUTI (4mi, 135°) 313ft
(6912mi, 107°) 529ft
WDSTC (6911mi, 287°) 5000ft
WDSTC (turn)
RW32PYE (7°)PYE
WDSTC (13mi, 63°) 5000ft
LUSEE (8mi, 332°) 3000ft
RW32ROZZA (303°)ROZZA
LUSEE (12mi, 151°) 3000ft
LUSEE (turn) 3000ft
RW32SAU (336°)SAU
WDSTC (21mi, 341°) 5000ft
LUSEE (8mi, 332°) 3000ft
RW32SGD (307°)SGD
WDSTC (13mi, 273°) 5000ft
LUSEE (8mi, 332°) 3000ft
 RNAVLUSEE 3000ft
PIGPN (6mi, 332°) 2000ft
KSTS (6mi, 330°) 173ft
(6912mi, 107°) 322ft
TUGUC (6912mi, 287°)
CABEX (19mi, 317°) 6000ft
CABEX (turn) 6000ft
