Airports for X-Plane

Travis Afb

Airport details

CountryUnited States of America
StateCalifornia
RegionK2
AirspaceOakland Ctr
MunicipalityFairfield
Elevation62ft (19m)
TimezoneGMT -8
Coordinates38.26454, -121.92413
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKSUU
IATA codeSUU
FAA codeSUU

Communication

Travis AFB Clearance DEL127.550
Travis AFB Ground Control121.800
Travis AFB Tower120.750
Travis AFB Approach128.400
Travis AFB Approach119.900
Travis AFB Departure119.900

Approach frequencies

ILS-cat-IIRW21L110.118.00mi
ILS-cat-IRW03L108.3518.00mi
2.8° GSRW21L110.118.00mi
2.5° GSRW03L108.3518.00mi
Nearby Points of Interest:
Suisun Masonic Lodge No. 55
-
Vacaville Town Hall
-
Hastings Adobe
-
USCGC Storis
-
Port Chicago Naval Magazine National Memorial
-
Downtown Winters Historic District
-
Riverview Union High School Building
-
Roswell Butler Hard House
-
Benicia Arsenal
-
Isleton Chinese and Japanese Commercial Districts
-
Old Masonic Hall
-
First Street Bridge
-
Capt. N. H. Wulff House
-
Napa County Courthouse Plaza
-
Semorile Building
-
Napa Valley Opera House
-
Bank of Napa
-
Gordon Building
-
Goodman Library
-
Sam Kee Laundry Building
-
U.S. Post Office
-
Benicia Southern Pacific Railroad Passenger Depot
-
Eliza G. Yount House
-
William Andrews House
-
Tucker House

Runway info

Runway 3L / 21R
 length3356m (11010ft)
 bearing54° / 234°
 width91m (300ft)
 surfaceasphalt
 blast zone255m (837ft) / 42m (138ft)
Runway 3R / 21L
 length3355m (11007ft)
 bearing54° / 234°
 width46m (150ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)
Runway 4 / 22
 length1068m (3504ft)
 bearing54° / 234°
 width27m (90ft)
 surfaceconcrete

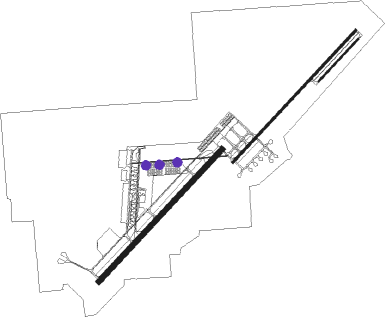

Airport layout - parking location M


Parking locations

 C  GA  GA1  J  M

Nearby beacons

codeidentifierdistbearingfrequency
SUUTRAVIS (FAIRFIELD) TACAN1.5228°116.60
CCRCONCORD VOR/DME14.3209°117
SACSACRAMENTO VORTAC20.564°115.20
SGDSCAGGS ISLAND (NAPA) VORTAC21.7259°112.10
MCCMC CLELLAN (SACRAMENTO) VOR/DME34.352°109.20
OAKOAKLAND VOR/DME35.3209°116.80
LVREIGA (LIVERMORE) NDB36.2157°374
SAUSAUSALITO VOR/DME37.4236°116.20
SFOSAN FRANCISCO VOR/DME44.2215°115.80
STSROSA DME44.2285°116.15
LINLINDEN VOR/DME44.9102°114.80
PYEPOINT REYES VOR/DME45.9259°113.70
ILAWILLIAMS VORTAC48.6353°114.40
NUQMOFFETT (MOUNTAIN VIEW) TACAN50.3189°117.60
MYVMARYSVILLE VOR/DME52.723°110.80
SJCSAN JOSE VOR/DME53.4181°114.10
OSIWOODSIDE VOR/DME55202°113.90
BABBEALE (MARYSVILLE) TACAN56.929°108.60
MODMODESTO VOR/DME59.6123°114.60

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW03 (ALL)
 REJOY145mi102°
 BESSA149mi353°
RW21 (ALL)
 REJOY145mi102°
 BESSA149mi353°

STAR starting pointsdistanceinbound heading
ALL
 SEATO413.0169°
 BMBER152.7287°
RW03 (ALL)
 SWR331.4193°
RW03L
 PEBLL137.1124°
 SUTHU122.9166°
 WEBGO122.2182°
RW21 (ALL)
 SWR331.4193°
RW21R
 PEBLL137.1124°
 SUTHU122.9166°
 WEBGO122.2182°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW21LIGGEY (209°)IGGEY 2000ft
HILLT (7mi, 152°) 2000ft
 RNAVHILLT 2000ft
SOPEE (6mi, 235°) 1500ft
KSUU (6mi, 235°) 107ft
(6878mi, 107°) 2200ft
SEATO (6876mi, 288°) 4400ft
SEATO (turn) 10000ft
RW21RIGGEY (209°)IGGEY 2000ft
HILLT (7mi, 152°) 2000ft
 RNAVHILLT 2000ft
JORAT (6mi, 236°) 1800ft
KSUU (6mi, 233°) 102ft
(6878mi, 107°) 2100ft
SEATO (6876mi, 288°) 4400ft
SEATO (turn) 10000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
PEBLL1SEATOVHFleft339 (159)°1.0min timedICAO rules
SEATO4ENINDBright202 (22)°1.0min timedICAO rules
SEATO4SEATOVHFleft339 (159)°1.0min timedICAO rules
SUTHU1SEATOVHFleft339 (159)°1.0min timedICAO rules
WEBGO1SEATOVHFleft339 (159)°1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
