Airports for X-Plane

Newburgh - New York Stewart

Airport details

CountryUnited States of America
StateNew York
RegionK6
AirspaceBoston Ctr
MunicipalityTown of Newburgh
Elevation491ft (150m)
TimezoneGMT -5
Coordinates41.50411, -74.10484
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKSWF
IATA codeSWF
FAA codeSWF

Communication

New York Stewart Stewart ATIS124.575
New York Stewart Stewart Unicom122.950
New York Stewart Stewart Ground121.900
New York Stewart Stewart Tower121.000
New York Stewart New York Departure132.750

Approach frequencies

ILS-cat-IIIRW09110.118.00mi
ILS-cat-IRW27109.9518.00mi
3° GSRW27109.9518.00mi
3° GSRW09110.118.00mi
Nearby Points of Interest:
James "Squire" Patton House
-
Colden Mansion Ruins
-
Thomas McDowell House
-
Orange Mill Historic District
-
Silas Gardner House
-
Brown Farmstead
-
Belknap Stone House
-
Haskell House
-
Nathaniel Hill Brick House
-
Walsh-Havemeyer House
-
Benjamin Haines House
-
A. Walsh Stone House and Farm Complex
-
New York State Armory
-
East End Historic District
-
Montgomery-Grand-Liberty Streets Historic District
-
Woodruff House
-
Maple Lawn
-
David Crawford House
-
United States Post Office
-
Bloomer–Dailey House and Balmville Tree
-
Firthcliffe Firehouse
-
John Blake House
-
Oliver Brewster House
-
Gilbert Millspaugh House
-
Isaac Cocks House

Runway info

Runway 9 / 27
 length3596m (11798ft)
 bearing81° / 261°
 width46m (151ft)
 surfaceasphalt
 displ threshold610m (2001ft) / 610m (2001ft)
 blast zone61m (200ft) / 69m (226ft)
Runway 16 / 34
 length1831m (6007ft)
 bearing142° / 322°
 width46m (151ft)
 surfaceasphalt
 blast zone52m (171ft) / 91m (299ft)

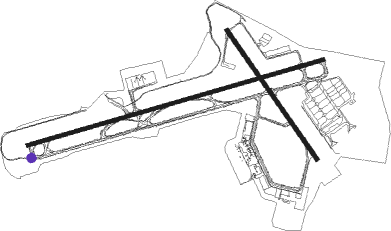

Airport layout - taxiway location A1


Taxiway locations

 A  A1  A2  A3  A4  A5  A6  A7
 A8  B  C  F  G  H  J  K
 L  M
Parking locations

 ANG  Atlantic  Cargo  Gate  Hanger  Signature  Textron  USGlobal

Nearby beacons

codeidentifierdistbearingfrequency
SKUSTANWYCK (NEWBURGH) NDB368°261
SWNEELY (NEWBURGH) NDB5.6262°335
IGNKINGSTON VOR/DME15.960°117.60
HUOHUGUENOT VOR/DME22.6259°116.10
CMKCARMEL VOR/DME27.1113°116.60
PWLPAWLING (POUGHKEEPSIE) VOR/DME27.662°114.30
SAXSPARTA VORTAC32.7225°115.70
MMMOREE (MORRISTOWN) NDB38.8200°392
TEBTETERBORO VOR/DME39.4176°108.40
TETORBY (TETERBORO) NDB42182°214
LGALA GUARDIA (NEW YORK) VOR/DME44.5162°113.10
STWSTILLWATER VOR/DME46236°109.60
CATCHATHAM NDB48.1203°254
PFHPHILMONT (HUDSON) NDB48.127°272
BDRBRIDGEPORT VOR/DME48.7109°108.80
FRFRIKK (FARMINGDALE) NDB51.9139°407
BWZBROADWAY (SCHOOLEY'S MT) VOR/DME53.3225°114.20
CRICANARSIE VOR/DME54.3167°112.30
JFKKENNEDY (NEW YORK) VOR/DME54.4159°115.90
DNYDE LANCEY VOR/DME55.6308°112.10
DPKDEER PARK VOR/DME56132°117.70
SBJSOLBERG VOR/DME62.3215°112.90

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
ALL
 HUD456.0312°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09CAMMO (105°)CAMMO
GAGDE (9mi, 115°) 3900ft
EKETE (5mi, 164°) 3000ft
RW09FALUT (63°)FALUT
EKETE (5mi, 345°) 3000ft
RW09HELON (133°)HELON
GAGDE (9mi, 220°) 3900ft
EKETE (5mi, 164°) 3000ft
 RNAVEKETE 3000ft
CEVAX (6mi, 81°) 2100ft
KSWF (6mi, 82°) 542ft
(4694mi, 119°) 682ft
ETUGE (4683mi, 299°) 3100ft
ETUGE (turn)
RW16CAMMO (105°)CAMMO
ITOME (9mi, 76°) 4000ft
FINPI (5mi, 66°) 4000ft
RW16TRESA (217°)TRESA
GEBDE (17mi, 251°) 4000ft
FINPI (5mi, 246°) 4000ft
 RNAVFINPI 4000ft
ENAXE (6mi, 142°) 3200ft
SINUE (6mi, 142°) 1320ft
KSWF (3mi, 150°) 511ft
(4694mi, 119°) 891ft
MEPTE (4685mi, 299°) 4000ft
MEPTE (turn) 4000ft
RW27FOROR (277°)FOROR
ETUGE (5mi, 345°) 3000ft
RW27PWL (242°)PWL
GOKRE (14mi, 241°) 4000ft
ETUGE (5mi, 165°) 3000ft
RW27WEETS (165°)WEETS
GOKRE (21mi, 124°) 4000ft
ETUGE (5mi, 165°) 3000ft
 RNAVETUGE 3000ft
POPOW (6mi, 261°) 2500ft
KSWF (7mi, 261°) 524ft
EKETE (12mi, 261°) 3000ft
EKETE (turn)
RW34CRANK (73°)CRANK
HELEP (18mi, 112°) 3900ft
MEPTE (5mi, 66°) 3000ft
RW34SAX (45°)SAX
HELEP (26mi, 67°) 3000ft
MEPTE (5mi, 66°) 3000ft
 RNAVMEPTE 3000ft
FILGA (6mi, 322°) 2500ft
QADED (2mi, 322°) 1700ft
KSWF (5mi, 317°) 512ft
(4694mi, 119°) 737ft
FINPI (4704mi, 299°) 3900ft
FINPI (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
HUD4PWLNDBright21 (201)°< 17999ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
