Airports for X-Plane

Syracuse - Syracuse Hancock Intl

Airport details

CountryUnited States of America
StateNew York
RegionK6
AirspaceBoston Ctr
MunicipalityTown of De Witt
Elevation417ft (127m)
TimezoneGMT -5
Coordinates43.11119, -76.10631
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKSYR
IATA codeSYR
FAA codeSYR

Communication

Syracuse Hancock Intl ATIS124.225
Syracuse Hancock Intl UNICOM122.950
Syracuse Hancock Intl Clearance DEL125.050
Syracuse Hancock Intl Ground Control121.700
Syracuse Hancock Intl Tower120.300
Syracuse Hancock Intl Approach/Departure126.125

Approach frequencies

ILS-cat-IIRW28109.918.00mi
ILS-cat-IRW10109.918.00mi
3° GSRW10109.918.00mi
3° GSRW28109.918.00mi

Runway info

Runway 10 / 28
 length2737m (8980ft)
 bearing88° / 268°
 width46m (150ft)
 surfaceasphalt
 blast zone46m (151ft) / 0m (0ft)
Runway 15 / 33
 length2285m (7497ft)
 bearing125° / 305°
 width46m (150ft)
 surfaceasphalt

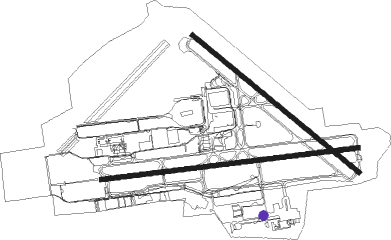

Airport layout - parking location Mil_D_2


Taxiway locations

 A  B  D  H  J  M  S  W
 Y
Parking locations

 ANG_Stt  FEDEX_Rmp_Stt  GA_Prop_Stt  Mil_D_1  Mil_D_2  North  South

Nearby beacons

codeidentifierdistbearingfrequency
SYRSYRACUSE VORTAC5.2297°117
FZFALLN (FULTON) NDB13.6312°220
GGTGEORGETOWN TACAN22.9139°117.80
ITHDME40.1210°111.80
UCAUTICA TACAN41.695°111.20
ITVRNAH (ITHACA) NDB42.5201°266
PYAPENN YAN NDB50.3244°260
ARTWATERTOWN VORTAC50.53°109.80
RKAROCKDALE VOR/DME54.4127°112.60
CFBBINGHAMTON VOR/DME57.2182°112.20
ALPALPINE (ELMIRA) NDB59.9217°245

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW10
 SYR227mi61°
RW15
 SYR227mi61°
RW28
 SYR227mi61°
RW33
 SYR227mi61°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10-YCORTA (356°)CORTA
JEMKA (20mi, 332°) 3800ft
MELTY (4mi, 332°) 2800ft
VROOM (4mi, 41°) 1900ft
RW10-YFATUP (335°)FATUP
HETEL (4mi, 268°) 3400ft
GLUON (3mi, 268°) 2800ft
MELTY (3mi, 295°) 2800ft
VROOM (4mi, 41°) 1900ft
RW10-YRODAN (80°)RODAN
MOYIK (5mi, 60°) 2400ft
CEDSA (4mi, 88°) 2400ft
VROOM (3mi, 88°) 1900ft
 RNAVVROOM 1900ft
KSYR (5mi, 87°) 474ft
STODA (11mi, 89°) 3000ft
STODA (turn)
RW10-ZRODAN (80°)RODAN
MOYIK (5mi, 60°) 3200ft
RW10-ZWIFFY (95°)WIFFY
MOYIK (8mi, 107°) 3200ft
 RNAVMOYIK 3200ft
SOLVA (6mi, 88°) 2100ft
TANUE (3mi, 88°) 980ft
KSYR (2mi, 86°) 474ft
(4799mi, 120°) 621ft
STODA (4788mi, 300°) 3200ft
STODA (turn) 3200ft
RW15PAGER (171°)PAGER
ELESE (12mi, 221°) 3000ft
RW15WIFFY (95°)WIFFY
ELESE (12mi, 67°) 3000ft
 RNAVELESE 3000ft
NADSY (6mi, 125°) 2300ft
KSYR (6mi, 127°) 468ft
(4799mi, 120°) 1600ft
STODA (4788mi, 300°) 3200ft
STODA (turn) 3200ft
RW28-YCORTA (356°)CORTA
HADAS (20mi, 18°) 3600ft
ACIDY (3mi, 18°) 3200ft
JAVTU (2mi, 357°) 2600ft
ZIMBI (3mi, 297°) 1600ft
RW28-YSTODA (269°)STODA
ZULIS (4mi, 268°) 2000ft
ZIMBI (3mi, 268°) 1600ft
RW28-YSYR (117°)SYR
PRIMS (5mi, 78°) 4000ft
MOTEY (3mi, 78°) 4000ft
ZIMBI (5mi, 168°) 1600ft
RW28-YTUMPS (35°)TUMPS
RILIE (4mi, 88°) 4000ft
CONET (3mi, 88°) 4000ft
JAVTU (4mi, 43°) 2600ft
ZIMBI (3mi, 297°) 1600ft
 RNAVZIMBI 1600ft
KSYR (4mi, 270°) 460ft
MOYIK (12mi, 268°)
WIFFY (8mi, 287°) 3000ft
WIFFY (turn)
RW28-ZTEBOR (288°)TEBOR
EBUXE (3mi, 316°) 3300ft
JAMDI (6mi, 316°) 2700ft
RW28-ZWEEPY (230°)WEEPY
YAVGU (8mi, 186°) 2700ft
JAMDI (6mi, 186°) 2700ft
 RNAVJAMDI 2700ft
ZIMBI (7mi, 268°) 1600ft
KSYR (4mi, 270°) 460ft
(4799mi, 120°) 600ft
SOLVA (4805mi, 299°)
WIFFY (14mi, 279°) 3000ft
WIFFY (turn)
RW33GTOWN (319°)GTOWN
FESUM (9mi, 338°) 3800ft
LOLYE (2mi, 343°) 3100ft
 RNAVLOLYE 3100ft
JAMLU (3mi, 305°) 2700ft
XANTY (3mi, 305°) 2300ft
MATCK (2mi, 305°) 1580ft
KSYR (4mi, 302°) 452ft
(4799mi, 120°) 715ft
ELESE (4809mi, 300°) 3000ft
ELESE (turn)

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
