Airports for X-Plane

Miami - Miami Executive

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceMiami Oceanic Ctr
MunicipalityMiami-Dade County
Elevation4ft (1m)
TimezoneGMT -5
Coordinates25.65135, -80.42018
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKTMB
IATA codeTMB
FAA codeTMB

Communication

Miami Executive ATIS124.000
Miami Executive CTAF118.900
Miami Executive Clearance DEL133.000
Miami Executive Ground Control121.700
Miami Executive Tower134.600
Miami Executive MIAMI Approach125.500
Miami Executive MIAMI Departure125.500

Approach frequencies

ILS-cat-IRW09R108.718.00mi
3° GSRW09R108.718.00mi
Nearby Points of Interest:
Ferdinand Magellan
-
Florida East Coast Railway 153
-
Silver Palm Schoolhouse
-
William Anderson General Merchandise Store
-
Charles Deering Estate
-
Arden Doc Thomas House
-
Hervey Allen Study
-
Coral Castle
-
Marjory Stoneman Douglas House
-
MacFarlane Homestead Historic District
-
The Kampong
-
Lincoln Memorial Park
-
Ace Theatre
-
El Jardin
-
Coral Gables City Hall
-
First Coconut Grove School
-
Coral Gables Police and Fire Station
-
McMinn-Horne House
-
Lindeman–Johnson House
-
Homestead Multiple Property Submission
-
Coast Guard Air Station Dinner Key
-
Lily Lawrence Bow Library
-
Trapp Homestead
-
Seminole Cafe and Hotel
-
Homestead Historic Downtown District

Runway info

Runway 9L / 27R
 length1522m (4993ft)
 bearing88° / 268°
 width46m (150ft)
 surfaceasphalt
Runway 9R / 27L
 length1830m (6004ft)
 bearing88° / 268°
 width46m (150ft)
 surfaceasphalt
 blast zone55m (180ft) / 0m (0ft)
Runway 13 / 31
 length1220m (4003ft)
 bearing125° / 305°
 width46m (150ft)
 surfaceasphalt

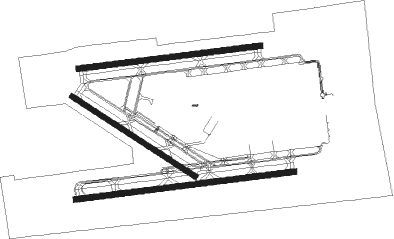

Airport layout


Taxiway locations

 09L  11  12  13  15  3  4  5
 6  7  A  A1  A2  A3  A5  A6
 C  C1  C2  CC  D  D1  D2  E
 E1  E2  E3  E4  E5  F  G  H
 H1  H3
Parking locations

 Air  C.R.  Covered  Flying  Hughes  International  Miami  Miami-Dade
 Ramp  Reliance  Signature  U.S.

Nearby beacons

codeidentifierdistbearingfrequency
DHPDOLPHIN (MIAMI) VORTAC9.726°113.90
HSTHOMESTEAD TACAN9.9166°108.20
VKZVIRGINIA KEY VOR/DME15.569°117.10
FLLFORT LAUDERDALE VOR/DME28.831°114.40
FXPRAIZ (FT LAUDERDALE) NDB32.713°221
MTHMARATHON NDB67.3216°260

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW09 (ALL)
 FOLZZ1255mi28°
 MELLZ1124mi141°
 MHITO1151mi232°
 BNGOS167mi316°
 HURCN1172mi325°
 VACAY1103mi345°
 AARPS1166mi347°
RW13
 FOLZZ1255mi28°
 MELLZ1124mi141°
 MHITO1151mi232°
 BNGOS167mi316°
 HURCN1172mi325°
 VACAY1103mi345°
 AARPS1166mi347°
RW27 (ALL)
 FOLZZ1255mi28°
 MELLZ1124mi141°
 MHITO1151mi232°
 BNGOS167mi316°
 HURCN1172mi325°
 VACAY1103mi345°
 AARPS1166mi347°
RW31
 FOLZZ1255mi28°
 MELLZ1124mi141°
 MHITO1151mi232°
 BNGOS167mi316°
 HURCN1172mi325°
 VACAY1103mi345°
 AARPS1166mi347°

STAR starting pointsdistanceinbound heading
ALL
 SNDBR128.659°
 DVALL332.477°
 PALMZ261.1104°
 FROGZ136.8113°
 CSTAL152.0203°
 ANNEY452.8204°
 BLUFI481.0205°
 TARPN157.1207°
 VIICE140.8291°
 FOWEE279.2300°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09LDHP (206°)DHP
JULED (18mi, 241°) 2000ft
JULED (turn) 2000ft
RW09LFOGSO (86°)FOGSO
JULED (6mi, 82°) 2300ft
JULED (turn) 2000ft
RW09LVKZ (249°)VKZ
JULED (27mi, 257°) 2100ft
JULED (turn) 2000ft
 RNAVJULED 2000ft
HASDU (6mi, 88°) 1500ft
JOGNO (3mi, 88°) 500ft
KTMB (2mi, 90°) 58ft
HOTMA (12mi, 87°) 2000ft
HOTMA (turn)
RW09RDHP (206°)DHP
HAXAM (18mi, 240°) 2000ft
HAXAM (turn) 2000ft
RW09RFOGSO (86°)FOGSO
HAXAM (5mi, 88°) 2000ft
RW09RVKZ (249°)VKZ
HAXAM (27mi, 256°) 2100ft
HAXAM (turn) 2000ft
 RNAVHAXAM 2000ft
LAYDN (6mi, 88°) 1500ft
KTMB (6mi, 83°) 60ft
(4887mi, 108°) 210ft
JURER (4877mi, 288°) 3000ft
JURER (turn) 3000ft
RW27LLUVLY (268°)LUVLY
CACSA (3mi, 261°) 2000ft
 RNAVCACSA 2000ft
ZAGUN (6mi, 268°) 2000ft
JINGI (4mi, 268°) 580ft
KTMB (2mi, 283°) 58ft
(4887mi, 108°) 208ft
HAXAM (4899mi, 288°) 2000ft
HAXAM (turn)
RW27RLUVLY (268°)LUVLY
HOTMA (3mi, 270°) 2000ft
 RNAVHOTMA 2000ft
FITOL (6mi, 268°) 2000ft
ELJOM (5mi, 268°) 500ft
KTMB (1mi, 262°) 58ft
JULED (12mi, 268°) 2000ft
JULED (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ANNEY4PBINDBright90 (270)°1.0min timedICAO rules
ANNEY4PCMANVHFleft341 (161)°1.5min timedICAO rules
ANNEY4TRVNDBleft347 (167)°< 17999ft1.0min timedICAO rules
BLUFI4LEBURVHFleft10 (190)°< 17999ftDME 8.0miICAO rules
CSTAL1BEEINVHFright347 (167)°DME 10.0miICAO rules
CSTAL1CSTALVHFleft352 (172)°DME 10.0miICAO rules
CSTAL1XPRSOVHFleft346 (166)°DME 10.0miICAO rules
CSTAL1YEPPAVHFleft346 (166)°DME 10.0miICAO rules
DVALL3CARNUVHFleft217 (37)°< 17999ft1.0min timedICAO rules
DVALL3WEVERVHFright248 (68)°1.0min timedICAO rules
FOWEE2FOWEEVHFleft137 (317)°DME 7.0miICAO rules
FOWEE2JUNURVHFleft137 (317)°DME 10.0miICAO rules
FROGZ1BETTLVHFright325 (145)°DME 10.0miICAO rules
FROGZ1DANSEVHFright344 (164)°DME 10.0miICAO rules
FROGZ1FROGZVHFright319 (139)°DME 10.0miICAO rules
FROGZ1GAWKSVHFleft287 (107)°DME 15.0miICAO rules
FROGZ1HARAPVHFright317 (137)°DME 10.0miICAO rules
FROGZ1MATCYVHFright317 (137)°DME 10.0miICAO rules
PALMZ2DUMDYVHFright340 (160)°DME 4.0miICAO rules
PALMZ2PRIVYVHFright281 (101)°DME 10.0miICAO rules
SNDBR1PAMPRVHFleft240 (60)°DME 10.0miICAO rules
SNDBR1PEAKYVHFleft191 (11)°DME 10.0miICAO rules
SNDBR1SNDBRVHFright209 (29)°DME 10.0miICAO rules
VIICE1CLYERVHFleft129 (309)°DME 10.0miICAO rules
VIICE1MADIZVHFright129 (309)°DME 10.0miICAO rules
VIICE1MULYNVHFright154 (334)°DME 10.0miICAO rules
VIICE1SUTONVHFright93 (273)°DME 10.0miICAO rules
VIICE1VIICEVHFleft128 (308)°DME 10.0miICAO rules
*) magnetic outbound (inbound) holding course
