New Castle - New Castle Muni
Airport details
| Country | United States of America |
| State | Pennsylvania |
| Region | K6 |
| Airspace | Cleveland Ctr |
| Municipality | Union Township |
| Elevation | 1069ft (326m) |
| Timezone | GMT -5 |
| Coordinates | 41.02539, -80.41344 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | KUCP |
| IATA code | n/a |
| FAA code | UCP |
Communication
| New Castle Muni ASOS | 124.175 |
| New Castle Muni CTAF/UNICOM | 123.000 |
| New Castle Muni YOUNGSTOWN Approach/Departure | 133.950 |

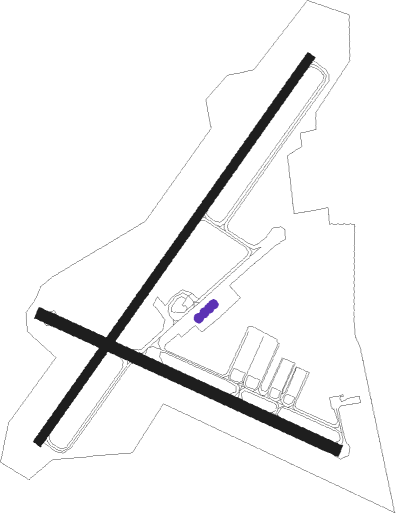

Runway info
Runway 5 / 23  | ||
| length | 1218m (3996ft) | |
| bearing | 48° / 228° | |
| width | 23m (75ft) | |
| surface | asphalt | |
| Runway 13 / 31 | ||
| length | 840m (2756ft) | |
| bearing | 113° / 293° | |
| width | 30m (100ft) | |
| surface | asphalt | |
| displ threshold | 0m (0ft) / 30m (98ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| UCP | CASTLE (NEW CASTLE) NDB | 0.1 | 225° | 272 |
| YN | FETCH (YOUNGSTOWN/WARREN) NDB | 13.3 | 314° | 338 |
| EWC | ELLWOOD CITY VOR/DME | 15.1 | 135° | 115.80 |
| YNG | YOUNGSTOWN VORTAC | 21.8 | 319° | 109 |
| MMJ | (PITTSBURGH) DME | 33.7 | 158° | 112 |
| FKL | FRANKLIN VOR | 35.3 | 53° | 109.60 |
| ACO | AKRON VOR/DME | 36 | 276° | 114.40 |
| CIP | DME | 43.8 | 83° | 112.90 |
| AK | AKRON NDB | 44.1 | 273° | 362 |
| CXR | CHARDON VOR/DME | 44.9 | 303° | 112.70 |
| HLG | WHEELING VOR/DME | 46.5 | 191° | 112.20 |
| JFN | JEFFERSON VOR/DME | 46.6 | 336° | 115.20 |
| AGC | ALLEGHENY (PITTSBURGH) VOR/DME | 47.9 | 153° | 110 |
| CFX | CADIZ NDB | 54.6 | 217° | 239 |
| LQL | LAKELAND (WILLOUGHBY) NDB | 58.7 | 304° | 263 |
| ERI | ERIE VORTAC | 59.8 | 7° | 109.40 |
| TDT | DME | 61 | 55° | 117.60 |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW05 | FIVEG (48°) | FIVEG 3600ft |
| RW05 | ZUTIV (73°) | ZUTIV FIVEG (9mi, 104°) 3600ft |
| RNAV | FIVEG 3600ft ZULAX (6mi, 48°) 2700ft BUCTA (2mi, 48°) 2000ft KUCP (3mi, 49°) 1075ft (4972mi, 117°) 1307ft ZARTO (4965mi, 297°) 3000ft ZARTO (turn) | |
| RW23 | MERCY (216°) | MERCY ZARTO (6mi, 189°) 3000ft |
| RW23 | VOLAN (248°) | VOLAN ZARTO (5mi, 290°) 3000ft |
| RW23 | ZARTO (228°) | ZARTO 3000ft |
| RNAV | ZARTO 3000ft WOBUT (6mi, 228°) 2600ft KUCP (5mi, 227°) 1066ft (4972mi, 117°) 1288ft FIVEG (4978mi, 297°) 3600ft FIVEG (turn) |
