Airports for X-Plane

Jacksonville - Cecil Fld

Airport details

CountryUnited States of America
StateFlorida
RegionK7
AirspaceJacksonville Ctr
MunicipalityJacksonville
Elevation81ft (25m)
TimezoneGMT -5
Coordinates30.21878, -81.87717
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeKVQQ
IATA codeVQQ
FAA codeVQQ

Communication

Cecil Fld ATIS125.275
Cecil Fld UNICOM122.950
Cecil Fld CTAF126.100
Cecil Fld Ground Control121.625
Cecil Fld Tower126.100
Cecil Fld JACKSONVILLE Approach123.800
Cecil Fld JACKSONVILLE Departure123.800

Approach frequencies

ILS-cat-IRW36R109.518.00mi
3° GSRW36R109.518.00mi

Runway info

Runway 18L / 36R
 length3824m (12546ft)
 bearing179° / 359°
 width61m (200ft)
 surfaceasphalt
 blast zone0m (0ft) / 255m (837ft)
Runway 9R / 27L
 length2435m (7989ft)
 bearing90° / 270°
 width61m (200ft)
 surfaceasphalt
Runway 18R / 36L
 length2447m (8028ft)
 bearing179° / 359°
 width61m (200ft)
 surfaceasphalt
 blast zone31m (102ft) / 34m (112ft)
Runway 9L / 27R
 length1351m (4432ft)
 bearing90° / 270°
 width61m (200ft)
 surfaceasphalt
 blast zone0m (0ft) / 255m (837ft)

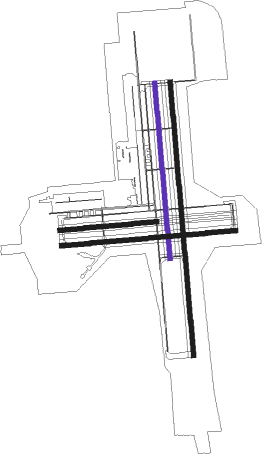

Airport layout - runway 18R / 36L


Taxiway locations

 A  A4  B  B3  D
Parking locations

 M1  M2  RAMP

Nearby beacons

codeidentifierdistbearingfrequency
NZCCECIL TACAN0.376°114.10
NIPJACKSONVILLE TACAN10.585°108.20
JADINNS (JACKSONVILLE) NDB15.217°344
RYDREYNOLDS (GREEN COVE SPRINGS) NDB18.9139°338
CRGCRAIG (JACKSONVILLE) VORTAC20.372°114.50
NRBMAYPORT TACAN25.669°111.40
SGJSAINT AUGUSTINE VOR/DME32.4116°109.40
GNWYNDS (GAINESVILLE) NDB36.3208°269
LCQLAKE CITY NDB36.4267°204
GNVGATORS VORTAC37.7217°116.20
TAYTAYLOR VORTAC38.9293°112.90
SSIBRUNSWICK (ST SIMONS I) VORTAC54.627°109.80
OMNORMOND BEACH VORTAC67.9140°112.60
HOEHOMERVILLE NDB68.2313°209

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
STAR starting pointsdistanceinbound heading
ALL
 AMG285.5154°
 HOTAR154.0233°
 POGIE2104.5342°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09RIMAHA (112°)IMAHA 2100ft
ZORMI (6mi, 179°) 2000ft
RW09RLIKFO (65°)LIKFO 2100ft
ZORMI (6mi, 359°) 2000ft
RW09RZORMI (89°)ZORMI 2000ft
 RNAVZORMI 2000ft
SHARL (6mi, 90°) 1800ft
TOTWY (3mi, 90°) 760ft
KVQQ (3mi, 86°) 130ft
(4984mi, 110°) 700ft
COURA (4977mi, 290°) 2000ft
COURA (turn)
RW18LBRAET (150°)BRAET 2000ft
COTAP (6mi, 90°) 2000ft
RW18LCOTAP (180°)COTAP 2000ft
RW18LESLAC (210°)ESLAC 2100ft
COTAP (6mi, 270°) 2000ft
 RNAVCOTAP 2000ft
MAUGA (6mi, 179°) 1700ft
SOLSE (3mi, 179°) 760ft
KVQQ (3mi, 183°) 129ft
(4984mi, 110°) 1000ft
ZORMI (4996mi, 290°) 2000ft
ZORMI (turn)
RW27LEXKAF (297°)EXKAF
JUZSO (6mi, 360°) 2100ft
RW27LJUZSO (271°)JUZSO 2100ft
RW27LOZICO (244°)OZICO
JUZSO (6mi, 180°) 2100ft
 RNAVJUZSO 2100ft
OSTAF (6mi, 270°) 1300ft
HATFI (2mi, 270°) 680ft
KVQQ (2mi, 273°) 114ft
(4984mi, 110°) 393ft
ZORMI (4996mi, 290°) 2000ft
ZORMI (turn)
RW36RCOURA (330°)COURA 2100ft
ROGSY (6mi, 270°) 2000ft
RW36RPOTGE (28°)POTGE 2000ft
ROGSY (6mi, 90°) 2000ft
RW36RROGSY (359°)ROGSY 2000ft
 RNAVROGSY 2000ft
ACETI (6mi, 359°) 1800ft
OJJEK (3mi, 359°) 780ft
KVQQ (3mi, 356°) 121ft
(4984mi, 110°) 1000ft
ZORMI (4996mi, 290°) 2000ft
ZORMI (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
POGIE2SHINRVHFright175 (355)°DME 8.0miICAO rules
*) magnetic outbound (inbound) holding course
