Airports for X-Plane

Larnaca

Airport details

CountryCyprus
StateSouth Cyprus
RegionLC
AirspaceNicosia Ctr
MunicipalityLarnaca Municipality
Elevation4ft (1m)
TimezoneGMT +2
Coordinates34.87484, 33.61847
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLCLK
IATA codeLCA
FAA coden/a

Communication

Larnaca ATIS126.550
Larnaca Delivery120.575
Larnaca Ground119.400
Larnaca Tower130.200
Larnaca Approach121.200
Larnaca Tower Dep121.200

Approach frequencies

ILS-cat-IRW22110.318.00mi
2.7° GSRW22110.318.00mi
Nearby Points of Interest:
Painted Churches in the Troödos Region
-
Church of Ayia Sotira (of the Transfiguration of the Savior) tou Soteros

Runway info

Runway 04 / 22
 length2986m (9797ft)
 bearing51° / 231°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 180m (591ft)
 blast zone65m (213ft) / 65m (213ft)

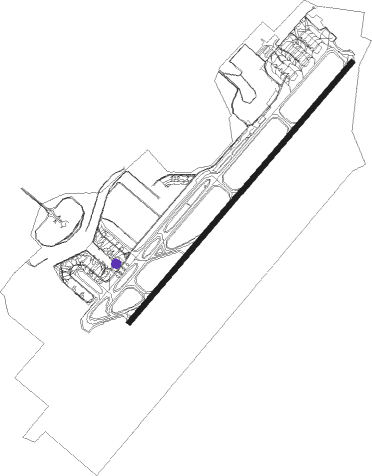

Airport layout - parking location 33


Taxiway locations

 A  B  C  E  G  H  L  L5
 L6  LA  LB  U  W
Parking locations

 11  11A  11B  12  12A  12B  13  13A
 13B  14  15  16  17  21  22  22A
 23  24  25  25A  26A  27  27A  28
 31  31A  32  32A  33  42  42A  43A
 44A  45  46  47  47A  61  62  63
 64  65  66  67  71  71A  72  73
 74  74B  75  76  81  82  83  84
 85  86A  86B  87  92  93  94  Aviator
 C1  C2  C3  Engine  G  G1  G10  G12
 G12A  G13  G13A  G14  G14A  G15  G15A  G16
 G16A  G17A  G18  G19  G2  G20  G21  G3
 G4  G5  G6  G7  G8  G9  H1  H2
 H3  H4  H5  H6  H7  H8

Nearby beacons

codeidentifierdistbearingfrequency
LCALARNACA VOR/DME0.3106°112.80
LCALARNACA NDB4.5230°432
DKADHEKELIA NDB9.545°343
IECRDME-ILS17.3339°108.30
ECNERCAN VOR/DME18336°117
GKEGECITKALE NDB22.219°435
GKEFAMAGUSTA GECITKALE VOR/DME23.327°114.30
AKRAKROTIRI TACAN36.9246°116

Departure and arrival routes

Transition altitude9000ft
Transition level11000ft
SID end pointsdistanceoutbound heading
RW04
 RUDE2C, RUDE1W25mi81°
 KOBE1W25mi105°
 EMIL2C, EMIL1W25mi119°
 EMED1W25mi155°
 NORD1W27mi262°
 PHA2D56mi262°
 BONE2W, BONE2D, BONE2C36mi286°
RW22
 RUDE1D25mi81°
 KOBE1D25mi105°
 EMIL1D25mi119°
 EMED1D25mi155°
 PHA1W, PHA2B56mi262°
 LUBE1W43mi273°
 BONE2B36mi286°

STAR starting pointsdistanceinbound heading
RW04
 BETI1A40.857°
 PHA2A, PHA1R55.782°
 LUBE1R43.193°
 RUDE1A25.3261°
 KOBE1A25.3285°
 EMIL1A25.3299°
 EMED1A25.3335°
RW22
 PHA1C55.782°
 LUBE1A43.193°
 BONE1R35.6106°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04BOSIS (334°)BOSIS 4000ft
RINNA (11mi, 283°) 3000ft
LK404 (5mi, 310°) 2000ft
RW04RIMEX (51°)RIMEX 4000ft
LK404 (5mi, 55°) 2000ft
 RNAVLK404 2000ft
LK403 (5mi, 51°) 2000ft
LCLK (7mi, 49°) 61ft
LK400 (3mi, 55°)
AMAKO (15mi, 114°) 2000ft
AMAKO (turn) 2000ft
RW22-VADLAS (106°)ADLAS 6000ft
KUKUS (6mi, 90°) 5000ft
LK511 (7mi, 87°) 3100ft
LK509 (4mi, 85°) 2200ft
LK505 (3mi, 130°) 1600ft
 RNAVLK505 1600ft
LCLK (6mi, 233°) 58ft
LK600 (3mi, 226°)
BOSIS (15mi, 144°) 2000ft
RW22BOSIS (334°)BOSIS 4000ft
ROKIK (13mi, 17°) 3000ft
LK522 (6mi, 17°) 1500ft
LK502 (5mi, 295°) 1500ft
RW22OTESA (106°)OTESA 5000ft
LK526 (10mi, 98°) 4000ft
LK525 (6mi, 98°) 3000ft
LK502 (5mi, 339°) 1500ft
RW22REXAL (299°)REXAL 4000ft
ROKIK (8mi, 318°) 3000ft
LK522 (6mi, 17°) 1500ft
LK502 (5mi, 295°) 1500ft
RW22SOBOS (261°)SOBOS 4000ft
LK524 (8mi, 288°) 1500ft
LK502 (3mi, 260°) 1500ft
 RNAVLK502 1500ft
LK501 (2mi, 231°) 1500ft
LCLK (6mi, 233°) 58ft
LK600 (3mi, 226°)
BOSIS (15mi, 144°) 2000ft
BOSIS (turn) 2000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BETI1ARIMEXVHFright222 (42)°> 4000ft1.0min timed210
BONE1ADAROSVHFright284 (104)°> 9000ft1.0min timedICAO rules
BONE1ALCANDBright221 (41)°> 4000ft1.0min timed210
BONE1RLCANDBright221 (41)°> 4000ft1.0min timed210
EMED1ARIMEXVHFright222 (42)°> 4000ft1.0min timed210
EMIL1ARIMEXVHFright222 (42)°> 4000ft1.0min timed210
KOBE1ARIMEXVHFright222 (42)°> 4000ft1.0min timed210
LUBE1ALCANDBright221 (41)°> 4000ft1.0min timed210
LUBE1RRIMEXVHFright222 (42)°> 4000ft1.0min timed210
PHA1CLCANDBright221 (41)°> 4000ft1.0min timed210
PHA1RRIMEXVHFright222 (42)°> 4000ft1.0min timed210
PHA2ARIMEXVHFright222 (42)°> 4000ft1.0min timed210
RUDE1ARIMEXVHFright222 (42)°> 4000ft1.0min timed210
*) magnetic outbound (inbound) holding course
