Airports for X-Plane

Brač Island - Brac

Airport details

CountryCroatia
StateSplit-Dalmatia County
RegionLD
AirspaceZagreb Ctr
MunicipalityOpćina Pučišća
Elevation1780ft (543m)
TimezoneGMT +1
Coordinates43.28572, 16.67972
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeLDSB
IATA codeBWK
FAA coden/a

Communication

Brac Brac Tower118.025
Brac Split Radar120.875
Nearby Points of Interest:
Historical Complex of Split with the Palace of Diocletian
-
Splitska sinagoga
-
Crljivica

Runway info

Runway 04 / 22
 length1757m (5764ft)
 bearing44° / 224°
 width30m (98ft)
 surfaceasphalt
 displ threshold140m (459ft) / 60m (197ft)

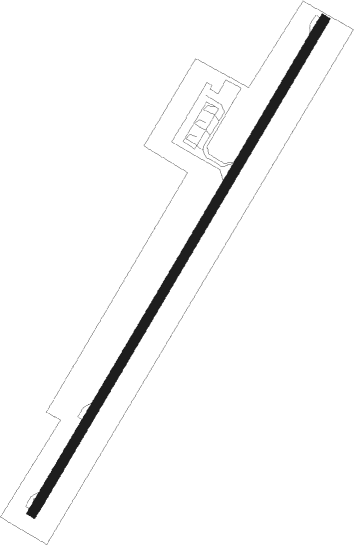

Airport layout


Parking locations

 GA  Stand

Nearby beacons

codeidentifierdistbearingfrequency
HUMHUMAC (BRAC) NDB0.1319°412
BRCDME2.5267°115.45
SPLSPLIT VOR/DME20.6299°115.70
TRITROGIR NDB23.6295°378
DVNDRVENIK NDB25.3287°418
VRLVRLIKA NDB40.3339°283

Departure and arrival routes

Transition altitude9500ft
SID end pointsdistanceoutbound heading
RW03
 SIPA7S, SIPA1Q19mi111°
 SPL1Q, SPL5T, SPL6U, SPL7S21mi299°
RW21
 SIPA1T, SIPA6R19mi111°
 SPL1M, SPL5R21mi299°

STAR starting pointsdistanceinbound heading
ALL
 SPL1P, SPL6N20.6119°
 SIPA1X, SIPA6N, SIPA6P19.4291°
 ORAK1X50.4325°
 RILI1X38.1348°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03HUM (139°)HUM 5000ft
SB511 (5mi, 117°) 4000ft
SB510 (10mi, 224°) 4000ft
SB509 (5mi, 297°) 3600ft
RW03PERIP (321°)PERIP 5000ft
SB510 (9mi, 275°) 4000ft
SB509 (5mi, 297°) 3600ft
 RNAVSB509 3600ft
DAFRO (4mi, 44°) 3500ft
LDSB (6mi, 44°) 1829ft
SB508 (4mi, 44°)
SB507 (6mi, 111°)
SB506 (9mi, 224°)
PERIP (7mi, 128°) 5000ft
PERIP (turn) 5000ft
RW21HUM (139°)HUM 5000ft
SB408 (6mi, 115°) 4000ft
SB409 (8mi, 40°) 4000ft
SB410 (5mi, 285°) 3000ft
RW21PERIP (321°)PERIP 5000ft
SB408 (9mi, 340°) 4000ft
SB409 (8mi, 40°) 4000ft
SB410 (5mi, 285°) 3000ft
 RNAVSB410 3000ft
SAJLO (3mi, 224°) 2800ft
LDSB (4mi, 224°) 1751ft
SB407 (3mi, 224°)
PERIP (13mi, 128°) 5000ft
PERIP (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ORAK1XPERIPVHFleft132 (312)°> 5000ft1.0min timed190
RILI1XPERIPVHFleft132 (312)°> 5000ft1.0min timed190
SIPA1XPERIPVHFleft132 (312)°> 5000ft1.0min timed190
SIPA6NHUMFIXright207 (27)°> 4000ft1.0min timed190
SIPA6PFF124VHFright303 (123)°> 5000ft1.0min timed190
SPL1PHUMFIXright207 (27)°> 4000ft1.0min timed190
SPL6NFF124VHFright303 (123)°> 5000ft1.0min timed190
SPL6NHUMFIXright207 (27)°> 4000ft1.0min timed190
*) magnetic outbound (inbound) holding course
