Airports for X-Plane

Zadar

Airport details

CountryCroatia
StateZadar County
RegionLD
AirspaceZagreb Ctr
MunicipalityOpćina Zemunik Donji
Elevation289ft (88m)
TimezoneGMT +1
Coordinates44.10827, 15.34670
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLDZD
IATA codeZAD
FAA coden/a

Communication

Zadar Tower123.700
Zadar Approach118.600

Approach frequencies

ILS-cat-IRW13110.118.00mi
3° GSRW13110.118.00mi
Nearby Points of Interest:
Masters Road
-
Velebit

Runway info

Runway 13 / 31
 length2496m (8189ft)
 bearing126° / 306°
 width45m (148ft)
 surfaceasphalt
Runway 04 / 22
 length1997m (6552ft)
 bearing51° / 231°
 width45m (148ft)
 surfaceasphalt

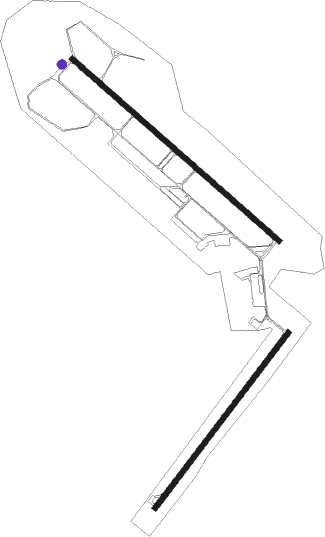

Airport layout - taxiway location A


Taxiway locations

 A  B  C  D  E  F  K
Parking locations

 Gate  Mil  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
ZDAZADAR VOR/DME1126°108.60
ZKZADAR NDB1.1127°348
BOBOKANJAC NDB5.1306°385
ZRAKAKMA NDB9.2127°330
SALSALI NDB12.8226°421
LSJDME44.1295°108.45
LOSLOSINJ NDB45.1296°429
NTLLOSINJ VOR/DME49.4296°117.35
DVNDRVENIK NDB52.6130°418
TRITROGIR NDB52.8125°378
SPLSPLIT VOR/DME55.4123°115.70
CRECRES NDB62.1311°433

Departure and arrival routes

Transition altitude10000ft
SID end pointsdistanceoutbound heading
RW04
 PALE2A, PALE2W29mi22°
 SPL3W, SPL5F55mi123°
 RAVN2A, RAVN2W33mi311°
RW13
 PALE1X, PALE1V, PALE1B29mi22°
 SPL4D, SPL1V55mi123°
 RAVN1X, RAVN1V, RAVN1B33mi311°
RW22
 PALE1C, PALE2U29mi22°
 SPL3G, SPL1U55mi123°
 RAVN1U, RAVN1C33mi311°
RW31
 PALE1D, PALE2T29mi22°
 SPL1T, SPL5E55mi123°
 RAVN1D, RAVN1T33mi311°

STAR starting pointsdistanceinbound heading
ALL
 KUDU1A, KUDU1B35.8153°
 SPL6B55.4303°
RW04
 ELGU1Z37.434°
 KUDU1Z35.8153°
 SPL2Z55.4303°
RW13
 ELGU1Y37.434°
 KUDU1Y35.8153°
 SPL2Y55.4303°
RW31
 ELGU1X37.434°
 KUDU1X35.8153°
 SPL2X55.4303°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04OSTAK (79°)OSTAK 4000ft
ZD401 (7mi, 123°) 2200ft
RW04RIMUG (2°)RIMUG 4000ft
ZD401 (7mi, 303°) 2200ft
RW04SOGRA (47°)SOGRA 3000ft
ZD401 (7mi, 51°) 2200ft
 RNAVZD401 2200ft
DINKO (4mi, 51°) 1700ft
LDZD (6mi, 41°) 339ft
(2773mi, 199°) 1000ft
ZRA (2769mi, 19°)
RODGO (5mi, 127°) 4000ft
RODGO (turn) 4000ft
RW13-YEDADI (349°)EDADI 4000ft
ZD502 (23mi, 306°)
ZD503 (7mi, 55°) 3000ft
 RNAVZD503 3000ft
LEBDI (5mi, 126°) 3000ft
LDZD (9mi, 126°) 295ft
ZD504 (4mi, 126°) 1100ft
SAL (13mi, 244°)
SOGRA (3mi, 231°) 3000ft
SOGRA (turn) 3000ft
RW13-ZNEDID (146°)NEDID 8000ft
LUKAV (7mi, 235°) 6000ft
RW13-ZNOBRU (110°)NOBRU 6000ft
LUKAV (7mi, 55°) 6000ft
 RNAVLUKAV 6000ft
LEBDI (12mi, 126°) 3000ft
LDZD (9mi, 126°) 295ft
ZD504 (4mi, 126°) 1100ft
SAL (13mi, 244°)
SOGRA (3mi, 231°) 3000ft
SOGRA (turn) 3000ft
RW31ANAKO (336°)ANAKO 5000ft
RODGO (7mi, 55°) 4000ft
RW31BEPTU (284°)BEPTU 6000ft
RODGO (7mi, 235°) 4000ft
RW31RODGO (307°)RODGO 4000ft
 RNAVRODGO 4000ft
LEVPA (5mi, 307°) 3000ft
LDZD (9mi, 307°) 308ft
BO (5mi, 306°) 1300ft
SAL (14mi, 203°)
SOGRA (3mi, 231°) 3000ft
SOGRA (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ELGU1XRODGOVHFright132 (312)°> 4000ft1.0min timed210
ELGU1YEDADIVHFright132 (312)°> 4000ft1.0min timed230
ELGU1ZSOGRAVHFright217 (37)°> 3000ft1.0min timed210
KUDU1ALUKAVVHFright312 (132)°> 6000ftDME 5.0mi250
KUDU1BZRAFIXleft132 (312)°> 3000ftDME 4.0miICAO rules
KUDU1XKUDULVHFright5 (185)°> 9000ft1.0min timed250
KUDU1XRODGOVHFright132 (312)°> 4000ft1.0min timed210
KUDU1YKUDULVHFright5 (185)°> 9000ft1.0min timed250
KUDU1YLUKAVVHFright312 (132)°> 6000ftDME 5.0mi250
KUDU1ZKUDULVHFright5 (185)°> 9000ft1.0min timed250
KUDU1ZSOGRAVHFright217 (37)°> 3000ft1.0min timed210
LOS2XMINTUVHFright315 (135)°> 6000ft1.0min timed250
LOS2XRODGOVHFright132 (312)°> 4000ft1.0min timed210
LOS2YLUKAVVHFright312 (132)°> 6000ftDME 5.0mi250
LOS2YMINTUVHFright315 (135)°> 6000ft1.0min timed250
LOS2ZMINTUVHFright315 (135)°> 6000ft1.0min timed250
LOS2ZSOGRAVHFright217 (37)°> 3000ft1.0min timed210
LOS6ALUKAVVHFright312 (132)°> 6000ftDME 5.0mi250
SPL2XRODGOVHFright132 (312)°> 4000ft1.0min timed210
SPL2YEDADIVHFright132 (312)°> 4000ft1.0min timed230
SPL2ZSOGRAVHFright217 (37)°> 3000ft1.0min timed210
SPL6BZRAFIXleft132 (312)°> 3000ftDME 4.0miICAO rules
*) magnetic outbound (inbound) holding course
