Airports for X-Plane

Alicante

Airport details

CountrySpain
StateValencian Community
RegionLE
AirspaceBarcelona Ctr
MunicipalityElx / Elche
Elevation142ft (43m)
TimezoneGMT +1
Coordinates38.28677, -0.56357
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeLEAL
IATA codeALC
FAA coden/a

Communication

Alicante ATIS120.080
Alicante Ground Control130.650
Alicante Tower118.150
Alicante Approach120.400
Alicante Departure120.400

Approach frequencies

ILS-cat-IRW10110.318.00mi
3° GSRW10110.318.00mi
Nearby Points of Interest:
Casa de les Bruixes
-
La Unión y el Fénix building, Alicante
-
Edificio Roma
-
Casa Campos Carrera
-
Torre Atalayola
-
Casa Lamaignere
-
Casa Carbonell
-
Casa consistorial de Alicante
-
City walls of Alacant
-
Convent de les Monges de la Sang, Alacant
-
Gravina Museum of Fine Arts
-
Torre de Ressemblanch
-
Mystery Play of Elche
-
Torre del Pinet
-
Castillo del Río
-
El Fondo Natural Park
-
Ermita de l'Àngel de Crevillent
-
Albatera-Catral Railway Station
-
Torre Reixes
-
church of Saint John the Baptist
-
Castellet de Xinorla
-
Castle of Monòver
-
Ermita de Santa Bàrbara de Monòver
-
El Poblet
-
Town Hall of Castalla

Runway info

Runway 10 / 28
 length2997m (9833ft)
 bearing98° / 278°
 width45m (149ft)
 surfaceasphalt

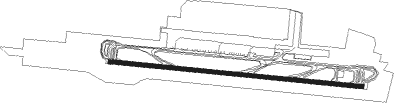

Airport layout


Taxiway locations

 A4  A5  A6  B1  B2  C1  C3  C5
 C7  C8  C9
Parking locations

 10  11  11A  12  13  14  15  16
 17  18  18A  19  1A  1B  1C  2
 20  21  21A  22  23  25  27  29
 31  33  35  35A  35B  37  39  3A
 3B  41  43  45  47  49  4A  4B
 4C  5  6A  6B  6C  7  8  9
 9A  D1  D2  D3  D4  D5  D6  E1
 E2  E3

Nearby beacons

codeidentifierdistbearingfrequency
ATEALICANTE VOR/DME1268°114.65
ALTALTET VOR/DME1.1199°113.80
AIALICANTE NDB4.5276°330
VSJSAN JAVIER VORTAC32.6206°113
TRLALCANTARILLA (MURCIA) TACAN37.4243°116.60
MURMURCIA VOR/DME39.2229°114.85

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW10
 VLC4A72mi4°
 SOPE2G96mi20°
 MITO3A28mi74°
 MAGA3A20mi123°
 REST3A52mi249°
 YES3A84mi272°
 ASTR4A55mi317°
 CATO4A96mi337°
RW28
 VLC3D72mi4°
 SOPE2F96mi20°
 MITO2C28mi74°
 MAGA2D20mi123°
 REST2B52mi249°
 YES2D84mi272°
 ASTR4D55mi317°
 CATO3C96mi337°

STAR starting pointsdistanceinbound heading
RW10
 REST2K, REST2Q, REST2P, REST2M52.269°
 ASTR2K, ASTR2L55.1137°
 MABU1K, MABU3L80.6155°
 GERV2M, GERV2K, GERV2P, GERV2L58.6243°
 MAGA2L, MAGA2K20.2303°
RW28
 REST2N, REST2R52.269°
 ASTR3N, ASTR2R55.1137°
 MABU2S, MABU1N, MABU1R, MABU2P80.6155°
 VLC3N, VLC2R72.0184°
 GERV2N, GERV2R58.6243°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASTR2LVILNAVHFright324 (144)°> 7000ftDME 5.0miICAO rules
ASTR3NBESORVHFleft57 (237)°> 6500ftDME 5.0miICAO rules
CLS2LVILNAVHFright324 (144)°> 7000ftDME 5.0miICAO rules
CLS3NBESORVHFleft57 (237)°> 6500ftDME 5.0miICAO rules
GERV2LALTNDBright280 (100)°> 4500ft1.0min timedICAO rules
GERV2MVILNAVHFright324 (144)°> 7000ftDME 5.0miICAO rules
GERV2NBESORVHFleft57 (237)°> 6500ftDME 5.0miICAO rules
MABU1NBESORVHFleft57 (237)°> 6500ftDME 5.0miICAO rules
MABU2PBESORVHFleft57 (237)°> 6500ftDME 5.0miICAO rules
MABU3LVILNAVHFright324 (144)°> 7000ftDME 5.0miICAO rules
MAGA2LALTNDBright280 (100)°> 4500ft1.0min timedICAO rules
MAGA2LMAGALVHFright125 (305)°> 7000ftDME 5.1miICAO rules
REST2MVILNAVHFright324 (144)°> 7000ftDME 5.0miICAO rules
REST2NALTNDBright280 (100)°> 4500ft1.0min timedICAO rules
REST2QALTNDBright280 (100)°> 4500ft1.0min timedICAO rules
REST2RALTNDBright280 (100)°> 4500ft1.0min timedICAO rules
VLC3LVILNAVHFright324 (144)°> 7000ftDME 5.0miICAO rules
VLC3NBESORVHFleft57 (237)°> 6500ftDME 5.0miICAO rules
VLC3NVLC37VHFright348 (168)°> 8000ftDME 6.0miICAO rules
*) magnetic outbound (inbound) holding course
