Airports for X-Plane

Almería - Almeria

Airport details

CountrySpain
StateAndalusia
RegionLE
AirspaceMadrid Ctr
MunicipalityAlmeria
Elevation67ft (20m)
TimezoneGMT +1
Coordinates36.84389, -2.37000
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeLEAM
IATA codeLEI
FAA coden/a

Communication

Almeria LEAM-Ground Control121.700
Almeria LEAM-Tower118.350

Approach frequencies

ILS-cat-IRW25109.918.00mi
3° GSRW25109.918.00mi
Nearby Points of Interest:
Torre Torregarcía
-
Toblerone, Almería
-
Biblioteca Pública Provincial de Almería Francisco Villaespesa
-
Edificio de la Diputación Provincial
-
Casa de la Peña
-
Delegación de la AEAT
-
Rambla de Almería
-
Edificio Banesto
-
Casa Montoya
-
Edificio de la Subdelegación de Gobierno (Almería)
-
Edificio en Plaza Flores, nº 1
-
Archivo Histórico Provincial de Almería
-
Palacio Episcopal
-
Liceo Artístico y Literario
-
Convento de la Purísima Concepción
-
Murallas del Cerro de San Cristóbal
-
Hospital de Santa María Magdalena
-
Acueducto y aljibe de Las Cumbres
-
Conjunto Histórico Artístico Casco Antiguo, Almería
-
Torre La Garrofa
-
Coto minero Baños de Sierra Alhamilla
-
Alcazaba
-
El Cerrón
-
Mausoleo romano
-
Plaza de toros de Berja

Runway info

Runway 07 / 25
 length3196m (10486ft)
 bearing76° / 256°
 width43m (141ft)
 surfaceasphalt
 displ threshold153m (502ft) / 0m (0ft)
 blast zone0m (0ft) / 50m (164ft)

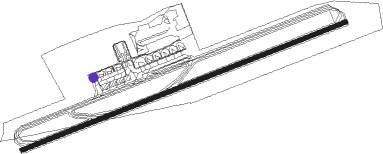

Airport layout - parking location 1


Taxiway locations

 S1  S4  T1  T2  T3
Parking locations

 1  2  20  21  22  23  24  25
 3  30  31  32  33  4  40  41
 43  44  5  50  51  52  53  54
 55  56  57  58  59  6  60  61
 62  63  64  7  8

Nearby beacons

codeidentifierdistbearingfrequency
AMNALMERIA NDB0.4299°310
AMRALMERIA VOR/DME5.396°114.10
AMALMERIA NDB6.576°284
ALBALBORAN NDB63.1216°519

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW07
 RISP1B, RISP1X, RISP1T28mi10°
 DOSE1T, DOSE2B30mi44°
 VADA2B26mi214°
 KUNE2B, KUNE1T23mi269°
 ESIL2V, ESIL1X, ESIL1T, ESIL1B23mi297°
 AGID1B, AGID1T, AGID1X24mi324°
RW25
 RISP1Y, RISP1S, RISP1A28mi10°
 DOSE2Y, DOSE2A, DOSE1S30mi44°
 VADA2A, VADA2S26mi214°
 KUNE1S, KUNE1E, KUNE1A23mi269°
 ESIL1S, ESIL1E, ESIL1A23mi297°
 AGID1A, AGID1S24mi324°

STAR starting pointsdistanceinbound heading
RW07
 VADA2R, VADA2D25.534°
 KUNE2R, KUNE2Z22.689°
 ESIL2Z, ESIL2R23.0117°
 AGID2R, AGID2Z24.4144°
 RISP2Z, RISP2R, RISP2D27.6190°
 DOSE2Z, DOSE2R, DOSE2D30.3224°
RW25
 VADA2C, VADA2E, VADA2Q25.534°
 KUNE2Q, KUNE2G, KUNE2C22.689°
 ESIL2Q, ESIL2C23.0117°
 AGID2C, AGID2Q24.4144°
 RISP2Q, RISP2C27.6190°
 DOSE2C, DOSE2Q30.3224°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07-YELVEX (76°)ELVEX 5800ft
AM11W (6mi, 76°) 3000ft
RW07-YMOLUV (57°)MOLUV 4000ft
AM11W (6mi, 3°) 3000ft
 RNAVAM11W 3000ft
AM07W (4mi, 76°) 2200ft
LEAM (7mi, 76°) 75ft
AM370 (4mi, 76°)
AM371 (8mi, 159°)
MOLUV (18mi, 261°) 4000ft
MOLUV (turn) 4000ft
RW07-ZELVEX (76°)ELVEX 5800ft
AM11W (6mi, 76°) 3000ft
RW07-ZMOLUV (57°)MOLUV 4000ft
AM11W (6mi, 3°) 3000ft
 RNAVAM11W 3000ft
AM07W (4mi, 76°) 2200ft
LEAM (7mi, 76°) 75ft
AM370 (4mi, 76°)
AM371 (8mi, 159°)
MOLUV (18mi, 261°) 4000ft
MOLUV (turn) 4000ft
RW25-YNIDON (229°)NIDON
AM13E (10mi, 180°) 3600ft
RW25-YRIXAL (280°)RIXAL
AM13E (8mi, 329°) 3600ft
 RNAVAM13E 3600ft
AM08E (5mi, 256°) 3000ft
LEAM (9mi, 256°) 119ft
AM380 (4mi, 256°)
AM381 (8mi, 159°)
RIXAL (19mi, 78°) 4000ft
RIXAL (turn) 5000ft
RW25-ZNIDON (229°)NIDON
AM13E (10mi, 180°) 3600ft
RW25-ZRIXAL (280°)RIXAL
AM13E (8mi, 329°) 3600ft
 RNAVAM13E 3600ft
AM08E (5mi, 256°) 2700ft
LEAM (9mi, 256°) 119ft
AM380 (4mi, 256°)
AM381 (8mi, 159°)
RIXAL (19mi, 78°) 4000ft
RIXAL (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AGID2CNIDONVHFright29 (209)°> 7000ftDME 5.0miICAO rules
AGID2CRIXALVHFleft105 (285)°4000ft - 5000ftDME 5.0mi220
AGID2QNIDONVHFright29 (209)°> 7000ftDME 5.0miICAO rules
AGID2RASNEPVHFleft67 (247)°> 9000ft1.0min timed230
DOSE2CNIDONVHFright29 (209)°> 7000ftDME 5.0miICAO rules
DOSE2CRIXALVHFleft105 (285)°4000ft - 5000ftDME 5.0mi220
DOSE2DROBIPVHFright243 (63)°< 4000ftDME 5.0miICAO rules
DOSE2QNIDONVHFright29 (209)°> 7000ftDME 5.0miICAO rules
DOSE2RASNEPVHFleft67 (247)°> 9000ft1.0min timed230
ESIL2CNIDONVHFright29 (209)°> 7000ftDME 5.0miICAO rules
ESIL2CRIXALVHFleft105 (285)°4000ft - 5000ftDME 5.0mi220
ESIL2QNIDONVHFright29 (209)°> 7000ftDME 5.0miICAO rules
KUNE2CAMRNDBleft105 (285)°> 5000ft1.0min timedICAO rules
KUNE2CRIXALVHFleft105 (285)°4000ft - 5000ftDME 5.0mi220
KUNE2GNIDONVHFright29 (209)°> 7000ftDME 5.0miICAO rules
KUNE2QRIXALVHFleft105 (285)°4000ft - 5000ftDME 5.0mi220
KUNE2RMOLUVVHFright183 (3)°4000ft - 4000ft1.0min timedICAO rules
RISP2CNIDONVHFright29 (209)°> 7000ftDME 5.0miICAO rules
RISP2CRIXALVHFleft105 (285)°4000ft - 5000ftDME 5.0mi220
RISP2DROBIPVHFright243 (63)°< 4000ftDME 5.0miICAO rules
RISP2QNIDONVHFright29 (209)°> 7000ftDME 5.0miICAO rules
RISP2RASNEPVHFleft67 (247)°> 9000ft1.0min timed230
VADA2CRIXALVHFleft105 (285)°4000ft - 5000ftDME 5.0mi220
VADA2DROBIPVHFright243 (63)°< 4000ftDME 5.0miICAO rules
VADA2EAMFIXright254 (74)°> 5000ft1.0min timed210
VADA2QRIXALVHFleft105 (285)°4000ft - 5000ftDME 5.0mi220
VADA2RMOLUVVHFright183 (3)°4000ft - 4000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
