Airports for X-Plane

Bilbao

Airport details

CountrySpain
StateAutonomous Community of the Basque Count
RegionLE
AirspaceMadrid Ctr
MunicipalitySondika
Elevation136ft (41m)
TimezoneGMT +1
Coordinates43.30103, -2.92257
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLEBB
IATA codeBIO
FAA coden/a

Communication

Bilbao BILBAO ATIS118.825
Bilbao BILBAO Ground Control121.700
Bilbao BILBAO Tower118.500
Bilbao BILBAO Approach127.450
Bilbao BILBAO Departure128.575

Approach frequencies

ILS-cat-IRW30110.318.00mi
ILS-cat-IRW12111.5518.00mi
3.4° GSRW30110.318.00mi
3.1° GSRW12111.5518.00mi
Nearby Points of Interest:
Bengoetxe baserria
-
Deusto Business School (Bilbao)
-
Bilbao City Hall
-
Casa Teofilo Guiard 1
-
Casa Montero
-
La Equitativa, Bilbao
-
Casa Lezama-Leguizamón, Bilbao
-
Caserío Cadalso
-
Chavarri Palace
-
Casas de Sota
-
FESA pabiloia
-
Biscay Foral Delegation Palace
-
Molinos Vascos, Bilbao
-
Palacio B. Gomez De La Torre
-
Sociedad Bilbaina
-
Edificio de la Sociedad Bilbaina
-
Kiosco del Arenal
-
Euskaltzaindia's headquarters
-
Edificio La Unión y el Fénix, Bilbao
-
Palacio Gortazar
-
Biblioteca Municipal de Bidebarrieta
-
Mallona Galtzada
-
Palacio Allende - Salazar
-
Fuente del Perro
-
Torre Zamudio

Runway info

Runway 10 / 28
 length1912m (6273ft)
 bearing95° / 275°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 560m (1837ft)
 blast zone144m (472ft) / 0m (0ft)
Runway 12 / 30
 length2591m (8501ft)
 bearing110° / 290°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 459m (1506ft)
 blast zone67m (220ft) / 60m (197ft)

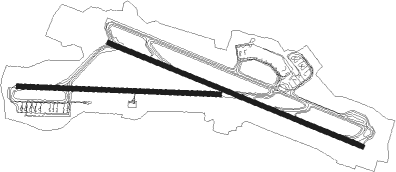

Airport layout


Taxiway locations

 C2  D1  D3  T2  T4  T5  T6
Parking locations

 1  10  10S  11  111  11A  11S  12
 123  13  14  15  16  17  18  19
 2  20  21  3  4  5  6  7
 7B  7S  8  89  9  9S  G1  G10
 G11  G12  G13  G14  G15  G16  G17  G18
 G2  G3  G4  G5  G6

Nearby beacons

codeidentifierdistbearingfrequency
BLVBILBAO VOR/DME0.6284°115.90
BBILBAO NDB6.5303°395
VTAVITORIA NDB24.8147°345
VFDVITORIA-FORONDA VOR/DME26.7155°112.90
VTVITORIA NDB30.4167°308
VRAVITORIA VOR/DME34.2174°116.60
SASANTANDER NDB41.2278°416
SNRSANTANDER VOR/DME43.6279°115.30
DGODOMINGO VOR/DME50.9177°112.60
LPALOGRONO VOR/DME56.8145°115.45
EAGLOGRONO NDB57.6144°399
BURBURGOS VOR/DME64.4216°111.40

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW10
 BISK2R23mi16°
 SSN1R48mi89°
 PPN1R64mi115°
 AMTO2R, AMTO2X22mi225°
 CALC3R18mi279°
 DOSU2R29mi314°
 MAPA2R24mi342°
RW12
 BISK4B23mi16°
 SSN2B48mi89°
 PPN2G, PPN1H64mi115°
 AMTO4B, AMTO4D22mi225°
 CALC4B18mi279°
 DOSU3B29mi314°
 MAPA3B24mi342°
RW28
 BISK2S23mi16°
 SSN1S48mi89°
 PPN1S64mi115°
 AMTO2S22mi225°
 CALC3S18mi279°
 DOSU2S29mi314°
 MAPA2S24mi342°
RW30
 BISK4A23mi16°
 SSN2A, SSN2C48mi89°
 PPN2E, PPN2F64mi115°
 AMTO4C, AMTO3A22mi225°
 CALC5A18mi279°
 DOSU3A29mi314°
 MAPA3A24mi342°

STAR starting pointsdistanceinbound heading
RW12
 SNR3T, SNR3Z43.699°
 DOSU2T, DOSU2Z28.5134°
 MAPA2T, MAPA2Z23.5162°
 CEGA3T35.6295°
 DGO1T34.2354°
RW30
 SNR3K, SNR3Q43.699°
 DOSU3K, DOSU3Q28.5134°
 MAPA2Q, MAPA2K23.5162°
 DGO1Q, DGO1L, CEGA2Q, CEGA2K35.6295°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CEGA2KALBIZVHFright111 (291)°> 6000ftDME 4.0miICAO rules
CEGA2QSARRAVHFright117 (297)°> 6000ftDME 4.0miICAO rules
CEGA3TBLVNDBleft121 (301)°> 5000ftDME 6.0miICAO rules
DGO1LALBIZVHFright111 (291)°> 6000ftDME 4.0miICAO rules
DGO1QSARRAVHFright117 (297)°> 6000ftDME 4.0miICAO rules
DGO1TBLVNDBleft121 (301)°> 5000ftDME 6.0miICAO rules
DGO1ZSUNIRVHFleft301 (121)°> 4000ftDME 4.0miICAO rules
DGO2XROSTOVHFleft304 (124)°> 4000ftDME 4.0miICAO rules
DOSU2TSUNIRVHFleft301 (121)°> 4000ftDME 4.0miICAO rules
DOSU2ZROSTOVHFleft304 (124)°> 4000ftDME 4.0miICAO rules
DOSU3KALBIZVHFright111 (291)°> 6000ftDME 4.0miICAO rules
DOSU3QSARRAVHFright117 (297)°> 6000ftDME 4.0miICAO rules
MAPA2QSARRAVHFright117 (297)°> 6000ftDME 4.0miICAO rules
MAPA2TSUNIRVHFleft301 (121)°> 4000ftDME 4.0miICAO rules
MAPA2ZROSTOVHFleft304 (124)°> 4000ftDME 4.0miICAO rules
SNR3KALBIZVHFright111 (291)°> 6000ftDME 4.0miICAO rules
SNR3QSARRAVHFright117 (297)°> 6000ftDME 4.0miICAO rules
SNR3TSUNIRVHFleft301 (121)°> 4000ftDME 4.0miICAO rules
SNR3ZROSTOVHFleft304 (124)°> 4000ftDME 4.0miICAO rules
*) magnetic outbound (inbound) holding course
