Airports for X-Plane

Getafe

Airport details

CountrySpain
StateCommunity of Madrid
RegionLE
AirspaceMadrid Ctr
MunicipalityGetafe
Elevation2027ft (618m)
TimezoneGMT +1
Coordinates40.29762, -3.71496
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLEGT
IATA coden/a
FAA coden/a

Communication

Getafe Approach119.950
Getafe Approach127.100
Getafe MADRID Departure127.100

Approach frequencies

ILS-cat-IRW05110.918.00mi
3° GSRW05110.918.00mi

Runway info

Runway 05 / 23
 length2479m (8133ft)
 bearing53° / 233°
 width60m (197ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

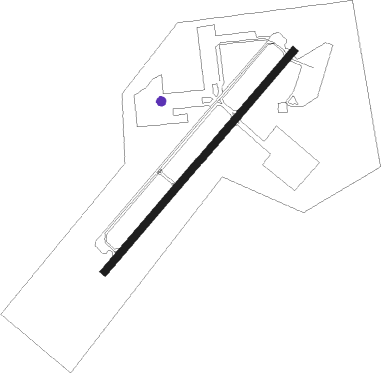

Airport layout - parking location P1-2


Parking locations

 Hangar  P1-1  P1-2  P1-3  P2-1  P2-2  P3-1

Nearby beacons

codeidentifierdistbearingfrequency
VGEGETAFE (MADRID) VORTAC0.6235°112.05
CVTCUATRO VIENTOS NDB4.9320°417
GEGETAFE (MADRID) NDB8.3233°421
BRABARAJAS VOR/DME12.543°116.45
VTZTORREJON (MADRID) VOR/DME15.454°115.10
SSYS.S.REYES VOR/DME16.229°117.85
PDTPERALES VOR/DME1797°116.95
TJZTORREJON (MADRID) TACAN17.253°112.50
CNRCOLMENAR VIEJO VOR/DME20.9357°117.30
ECVCOLMENAR VIEJO NDB24.2353°319
NVSNAVAS DEL REY VOR/DME24.8278°114.95
VTBVILLATOBAS VOR/DME33.1154°112.70
TLDTOLEDO VOR/DME34.7242°113.20
RBOROBLEDILLO VOR/DME39.640°113.95
SIESOMOSIERRA VOR/DME51.57°115.40

Departure and arrival routes

Transition altitude13000ft
SID end pointsdistanceoutbound heading
RW05
 SIE2J52mi7°
 RBO1J40mi40°
 PINA2J65mi59°
 VTB2H33mi154°
 TLD2H35mi242°
 NVS2H25mi278°
RW23
 SIE2J52mi7°
 RBO1J40mi40°
 PINA2J65mi59°
 VTB2H33mi154°
 TLD2H35mi242°
 NVS2H25mi278°

STAR starting pointsdistanceinbound heading
ALL
 TLD1X34.762°
 NVS2Y24.898°
 VTB1Y33.1334°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CJN3YCJNNDBright145 (325)°> 17000ft1.0min timedICAO rules
CJN3YGEFIXright226 (46)°> 4000ft1.0min timedICAO rules
NVS2YGEFIXright226 (46)°> 4000ft1.0min timedICAO rules
NVS2YNVSNDBright289 (109)°9000ft - 24000ft1.0min timedICAO rules
TLD1XGEFIXright226 (46)°> 4000ft1.0min timedICAO rules
TLD1XTLDNDBright256 (76)°> 17000ft1.0min timedICAO rules
VTB1YGEFIXright226 (46)°> 4000ft1.0min timedICAO rules
VTB1YVTBNDBright186 (6)°10000ft - 24000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
