San Javier - Murcia San Javier
Airport details
| Country | Spain |
| State | Region of Murcia |
| Region | LE |
| Airspace | Barcelona Ctr |
| Municipality | San Javier |
| Elevation | 27ft (8m) |
| Timezone | GMT +1 |
| Coordinates | 37.77646, -0.81411 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | LELC |
| IATA code | MJV |
| FAA code | n/a |
Communication
| Murcia San Javier SAN JAVIER Ground Control | 121.600 |
| Murcia San Javier SAN JAVIER Tower CIV | 130.300 |
| Murcia San Javier SAN JAVIER Approach | 133.000 |
Approach frequencies
| ILS-cat-I | RW05R | 110.5 | 18.00mi |
| ILS-cat-I | RW23L | 109.3 | 18.00mi |
| 3° GS | RW23L | 109.3 | 18.00mi |
| 2.8° GS | RW05R | 110.5 | 18.00mi |
Nearby Points of Interest:
Mar Menor
-Casa del Reloj, San Pedro del Pinatar
-Apolo Theatre, El Algar
-Hermitages of Mount Miral
-Salinas de Marchamalo y playa de Las Amoladeras
-Casa del Piñón
-Windmills in Cartagena, Spain
-Torre Llagostera
-Villa Calamari
-Castillito de Los Dolores
-Fábrica de Fluido Eléctrico Hispania
-Escuelas Graduadas de Cartagena
-Cartagena
-Casino of Cartagena
-City Hall of Cartagena, Spain
-Antiguo Club de Regatas
-Basílica del Llano del Olivar
-Vélez chapel
-Palacio Episcopal de Murcia
-Orihuela Walls
-Casa Villaescusa, Orihuela
-Archivos de Orihuela
-Arco de Santo Domingo
-Paseo del Malecón
-Palacio Vinader

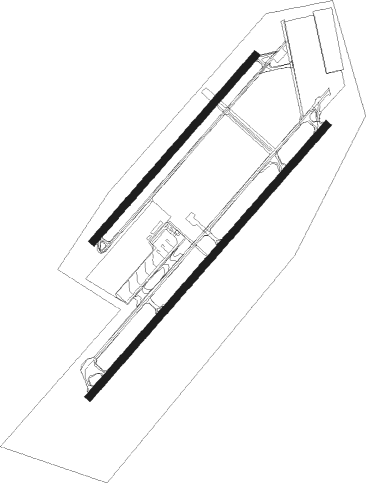

Runway info
Runway 05R / 23L  | ||
| length | 2315m (7595ft) | |
| bearing | 52° / 232° | |
| width | 45m (148ft) | |
| surface | asphalt | |
| blast zone | 196m (643ft) / 195m (640ft) | |
| Runway 05L / 23R | ||
| length | 1581m (5187ft) | |
| bearing | 52° / 232° | |
| width | 46m (150ft) | |
| surface | asphalt | |
| blast zone | 196m (643ft) / 226m (741ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| VSJ | SAN JAVIER VORTAC | 0.2 | 22° | 113 |
| MUR | MURCIA VOR/DME | 14.6 | 275° | 114.85 |
| TRL | ALCANTARILLA (MURCIA) TACAN | 22.3 | 293° | 116.60 |
| ALT | ALTET VOR/DME | 31.7 | 26° | 113.80 |
| AI | ALICANTE NDB | 32 | 17° | 330 |
| ATE | ALICANTE VOR/DME | 32.4 | 24° | 114.65 |
Departure and arrival routes
| Transition altitude | 6000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW05R | |||
| ALT2E | 32mi | 26° | |
| PALO1A | 18mi | 126° | |
| RW23L | |||
| PALO1B | 18mi | 126° | |
| DIME2A | 33mi | 217° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| RW05R | |||
| DINC2A | 38.5 | 42° | |
| PALO1C | 17.9 | 306° | |
| RW23L | |||
| ALT3F | 31.7 | 206° | |
| PALO1D | 17.9 | 306° | |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| ALT3F | DITRE | VHF | left | 54 (234)° | > 4000ft | DME 5.0mi | ICAO rules |
| DINC2A | SANSI | VHF | right | 216 (36)° | > 3500ft | DME 4.1mi | 210 |
| PALO1C | SANSI | VHF | right | 216 (36)° | > 3500ft | DME 4.1mi | 210 |
| PALO1D | DITRE | VHF | left | 54 (234)° | > 4000ft | DME 5.0mi | ICAO rules |
| *) magnetic outbound (inbound) holding course | |||||||
