Airports for X-Plane

San Javier - Murcia San Javier

Airport details

CountrySpain
StateRegion of Murcia
RegionLE
AirspaceBarcelona Ctr
MunicipalitySan Javier
Elevation27ft (8m)
TimezoneGMT +1
Coordinates37.77646, -0.81411
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLELC
IATA codeMJV
FAA coden/a

Communication

Murcia San Javier SAN JAVIER Ground Control121.600
Murcia San Javier SAN JAVIER Tower CIV130.300
Murcia San Javier SAN JAVIER Approach133.000

Approach frequencies

ILS-cat-IRW05R110.518.00mi
ILS-cat-IRW23L109.318.00mi
3° GSRW23L109.318.00mi
2.8° GSRW05R110.518.00mi

Runway info

Runway 05R / 23L
 length2315m (7595ft)
 bearing52° / 232°
 width45m (148ft)
 surfaceasphalt
 blast zone196m (643ft) / 195m (640ft)
Runway 05L / 23R
 length1581m (5187ft)
 bearing52° / 232°
 width46m (150ft)
 surfaceasphalt
 blast zone196m (643ft) / 226m (741ft)

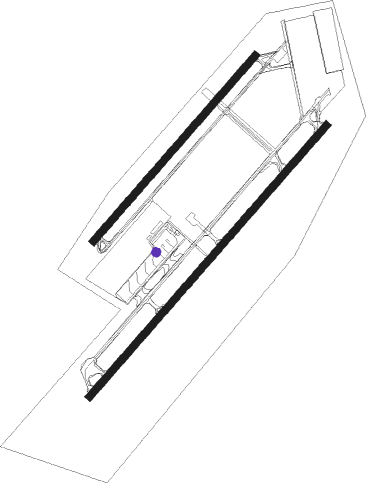

Airport layout - parking location 98


Taxiway locations

 A  B  C  D  E  F  G  H
 J  K  M  Q  R  T1  T2  T3
 T4
Parking locations

 1  108  118  13  23  45  67  78
 98  Military

Nearby beacons

codeidentifierdistbearingfrequency
VSJSAN JAVIER VORTAC0.222°113
MURMURCIA VOR/DME14.6275°114.85
TRLALCANTARILLA (MURCIA) TACAN22.3293°116.60
ALTALTET VOR/DME31.726°113.80
AIALICANTE NDB3217°330
ATEALICANTE VOR/DME32.424°114.65

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW05R
 ALT2E32mi26°
 PALO1A18mi126°
RW23L
 PALO1B18mi126°
 DIME2A33mi217°

STAR starting pointsdistanceinbound heading
RW05R
 DINC2A38.542°
 PALO1C17.9306°
RW23L
 ALT3F31.7206°
 PALO1D17.9306°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALT3FDITREVHFleft54 (234)°> 4000ftDME 5.0miICAO rules
DINC2ASANSIVHFright216 (36)°> 3500ftDME 4.1mi210
PALO1CSANSIVHFright216 (36)°> 3500ftDME 4.1mi210
PALO1DDITREVHFleft54 (234)°> 4000ftDME 5.0miICAO rules
*) magnetic outbound (inbound) holding course
