Airports for X-Plane

Sabadell

Airport details

CountrySpain
StateCatalonia
RegionLE
AirspaceBarcelona Ctr
MunicipalitySabadell
Elevation459ft (140m)
TimezoneGMT +1
Coordinates41.52083, 2.10500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLELL
IATA codeQSA
FAA coden/a

Communication

Sabadell Tower121.600
Sabadell Tower120.800

Runway info

Runway 13 / 31
 length1047m (3435ft)
 bearing120° / 300°
 width30m (98ft)
 surfaceasphalt
 displ threshold0m (0ft) / 147m (482ft)

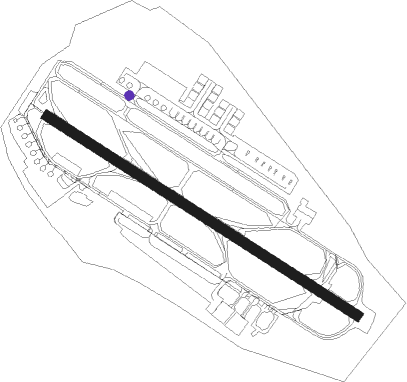

Airport layout - taxiway location Y1


Taxiway locations

 A  B  C  D  E5  E6  E7  M1
 S1  S2  T2  T3  T4  T5  T6  TA
 TB  W  W2  Y1  Y2

Nearby beacons

codeidentifierdistbearingfrequency
SLLSABADELL VOR/DME0.2102°112
BCNBARCELONA VOR/DME12.8179°116.70
PRAEL PRAT VOR/DME14.3186°114.30
CLECALELLA VOR/DME24.877°115.35
VNVVILLANUEVA NDB25.8232°380
VLAVILLAFRANCA VOR/DME27.2252°113.15
GGIRONA NDB38.459°330
GIRGERONA (GIRONA) VOR/DME38.758°114.10
GRNGERONA (GIRONA) NDB43.654°412
RESREUS VOR/DME47.6248°114.20
RUSREUS NDB48.6249°424
SALSAINTE LEOCADIE NDB55.7354°418
