Airports for X-Plane

Madrid - Madrid Barajas

Airport details

CountrySpain
StateCommunity of Madrid
RegionLE
AirspaceMadrid Ctr
MunicipalityMadrid
Elevation1998ft (609m)
TimezoneGMT +1
Coordinates40.47222, -3.56083
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLEMD
IATA codeMAD
FAA coden/a

Communication

Madrid Barajas ATIS ARR118.250
Madrid Barajas ATIS Departure130.850
Madrid Barajas CLR East130.075
Madrid Barajas CLR West130.350
Madrid Barajas Ground Control C South121.975
Madrid Barajas Ground Control E North121.750
Madrid Barajas Ground Control C North123.150
Madrid Barajas Ground Control E South121.625
Madrid Barajas BARAJAS Tower 36L118.675
Madrid Barajas BARAJAS Tower 36L118.075
Madrid Barajas BARAJAS Tower 14R118.150
Madrid Barajas BARAJAS Tower 14L118.975
Madrid Barajas MADRID Approach124.025
Madrid Barajas MADRID Approach127.500
Madrid Barajas RWY 36L Departure118.080
Madrid Barajas RWY 14R Departure118.155
Madrid Barajas RWY 14L Departure118.980
Madrid Barajas RWY 36R Departure118.680

Approach frequencies

ILS-cat-IIIRW18L111.518.00mi
ILS-cat-IIIRW18R110.718.00mi
ILS-cat-IIIRW32L109.918.00mi
ILS-cat-IIIRW32R109.118.00mi
3° GSRW18L111.518.00mi
3° GSRW18R110.718.00mi
3° GSRW32L109.918.00mi
3° GSRW32R109.118.00mi

Runway info

Runway 14R / 32L
 length3995m (13107ft)
 bearing135° / 315°
 width60m (197ft)
 surfaceasphalt
 displ threshold0m (0ft) / 930m (3051ft)
 blast zone178m (584ft) / 168m (551ft)
Runway 18R / 36L
 length4183m (13724ft)
 bearing180° / 360°
 width60m (197ft)
 surfaceasphalt
 displ threshold808m (2651ft) / 0m (0ft)
 blast zone255m (837ft) / 0m (0ft)
Runway 14L / 32R
 length3503m (11493ft)
 bearing135° / 315°
 width60m (197ft)
 surfaceasphalt
 displ threshold0m (0ft) / 500m (1640ft)
 blast zone255m (837ft) / 255m (837ft)
Runway 18L / 36R
 length3499m (11480ft)
 bearing180° / 360°
 width60m (197ft)
 surfaceasphalt
 displ threshold494m (1621ft) / 0m (0ft)
 blast zone255m (837ft) / 140m (459ft)

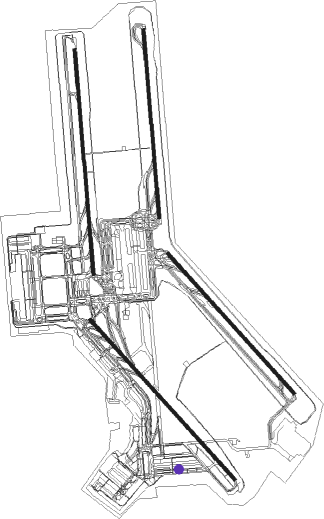

Airport layout - parking location 207


Taxiway locations

 A1  A10  A11  A12  A13  A18  A2  A24
 A25  A26  A27  A3  A31  A4  A7  A8
 A9  AY  AZ3  B4  B6  B7  B8  B9
 BY11  BY12  BY13  C2  C3  C5  D1  E3
 E4  EA5  EA6  EC9  F3  G1  G2  GATE1
 GATE11  GATE5  GATE6  J2  J3  J4  J5  K1
 K2  K3  KA5  KA6  KA7  KA9  L1  L2
 L3  L42  LA  LB  LC  LE  LF  M1
 M10  M11  M12  M13  M19  M2  M27  M28
 M3  M30  M4  M5  M6  M8  M9  ME2
 MZ4  N4  N5  N6  R6  R7  R8  W3
 W5  W6  WN1  Y1  Y2  Y3  Y4  Y7
 Z1  Z10  Z2  Z3  Z4  Z6  Z7  Z8
 ZW3
Parking locations

 0  1  10  100  101  102  103  104
 105  106  108  109  11  110  111  112
 113  114  115  116  117  118  119  12
 120  121  122  123  124  125  126  13
 130  131  132  133  134  135  136  138
 14  140  145  146  148  15  151  152
 153  154  156  157  159  16  161  163
 165  17  2  200  201  202  203  204
 205  206  207  208  211  213  215  217
 221  223  225  227  230  231  232  233
 234  235  236  237  238  239  240  241
 242  243  244  245  246  247  248  249
 3  30  31  32  33  34  35  36
 37  4  40  400  402  404  406  408
 41  410  411  412  413  414  415  416
 417  418  419  42  420  422  424  426
 428  43  430  432  434  436  438  44
 440  442  444  446  448  45  5  50
 52  54  56  58  59  6  60  62
 64  66  68  69  7  70  71  72
 73  74  75  8  80  81  82  83
 84  85  9  90  91  92  93  94
 95  96  98  99  Gate  Gate_608  La  PE15
 PE20  PE30  T1  T10  T11  T12  T13  T14
 T15  T16  T17  T18  T19  T2  T20W  T21
 T22  T23  T24  T25  T26  T27  T28  T29
 T3  T30  T31  T32  T33  T34  T35  T36
 T37  T38  T39  T4  T40  T5  T6  T7
 T8  T9

Nearby beacons

codeidentifierdistbearingfrequency
BRABARAJAS VOR/DME0.2133°116.45
VTZTORREJON (MADRID) VOR/DME488°115.10
SSYS.S.REYES VOR/DME4.5349°117.85
TJZTORREJON (MADRID) TACAN5.577°112.50
CVTCUATRO VIENTOS NDB11.5244°417
CNRCOLMENAR VIEJO VOR/DME13.1315°117.30
VGEGETAFE (MADRID) VORTAC13.3222°112.05
PDTPERALES VOR/DME16.3136°116.95
ECVCOLMENAR VIEJO NDB16.4318°319
GEGETAFE (MADRID) NDB20.8226°421
RBOROBLEDILLO VOR/DME2739°113.95
NVSNAVAS DEL REY VOR/DME32261°114.95
SIESOMOSIERRA VOR/DME40.8356°115.40
VTBVILLATOBAS VOR/DME41.7172°112.70
TLDTOLEDO VOR/DME46.6237°113.20
BANBARAHONA VOR/DME66.348°112.80

Departure and arrival routes

Transition altitude13000ft
SID end pointsdistanceoutbound heading
RW14L
 RBO2V, RBO2U27mi39°
 PINA2U, PINA2V53mi62°
 NAND2U, NAND2V70mi109°
 VTB3V42mi172°
 CCS4V144mi252°
 BARD3V125mi272°
 ZMR3V114mi297°
 SIE4V, SIE2U41mi356°
RW14R
 RBO2B27mi39°
 PINA3B53mi62°
 NAND2B70mi109°
 VTB3B, VTB2S42mi172°
 CCS4B, CCS2S144mi252°
 BARD3S, BARD3B125mi272°
 ZMR3B, ZMR2S114mi297°
 SIE4B, SIE2S41mi356°
RW36L
 RBO3N27mi39°
 PINA3N53mi62°
 NAND3N70mi109°
 VTB5L, VTB2X, VTB2N42mi172°
 CCS5L, CCS4N, CCS2X144mi252°
 BARD6L, BARD3X, BARD3N125mi272°
 ZMR6L, ZMR3X, ZMR2N114mi297°
 SIE5L, SIE2N41mi356°
RW36R
 RBO6W, RBO3R27mi39°
 PINA7W, PINA3R53mi62°
 NAND6W, NAND2R70mi109°
 VTB1R, VTB7W42mi172°
 CCS5W144mi252°
 BARD6W125mi272°
 ZMR3W114mi297°
 SIE3W41mi356°

STAR starting pointsdistanceinbound heading
RW18 (ALL)
 SOTU6A94.243°
 TLD6A46.657°
 RIDA2A102.692°
 ZMR4A113.6117°
 NONT2A67.6149°
 BANE3B77.9225°
 TERS6E66.6260°
 ADUX6B68.3268°
 PRAD7E73.6282°
 VILA6E54.5282°
 NASO6A68.9334°
 MORA6A88.4359°
RW32 (ALL)
 SOTU3C94.243°
 TLD2C46.657°
 RIDA3C102.692°
 ZMR4C113.6117°
 NONT2C55.6141°
 BANE2D66.3228°
 TERS2Z66.6260°
 ADUX1D68.3268°
 PRAD2D73.6282°
 VILA2D54.5282°
 NASO1D68.9334°
 MORA4C88.4359°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADUX1DADUXOVHFright70 (250)°10000ft - 24000ftDME 5.4miICAO rules
ADUX1DASBINVHFleft90 (270)°6000ft - 10000ftDME 5.1miICAO rules
ADUX1DSIRGUVHFleft90 (270)°8000ft - 24000ftDME 8.6miICAO rules
ADUX6BADUXOVHFright70 (250)°10000ft - 24000ftDME 5.4miICAO rules
ADUX6BLULERVHFleft81 (261)°8000ft - 12000ft1.0min timed210
ADUX6BNOSKOVHFright122 (302)°10000ft - 24000ftDME 9.1miICAO rules
BANE2DASBINVHFleft90 (270)°6000ft - 10000ftDME 5.1miICAO rules
BANE2DBANNDBright27 (207)°10000ft - 24000ftDME 15.0miICAO rules
BANE2DNOSKOVHFright122 (302)°10000ft - 24000ftDME 9.1miICAO rules
BANE3BBANNDBright27 (207)°10000ft - 24000ftDME 15.0miICAO rules
BANE3BLULERVHFleft81 (261)°8000ft - 12000ft1.0min timed210
BANE3BVENUXVHFright358 (178)°12000ft - 24000ft1.0min timedICAO rules
MORA4CBUREXVHFright227 (47)°12000ft - 24000ftDME 9.0miICAO rules
MORA4CTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
MORA6AETUNIVHFleft249 (69)°12000ft - 24000ft1.0min timed220
MORA6ANVSNDBright289 (109)°9000ft - 24000ft1.0min timedICAO rules
MORA6ARILKOVHFleft308 (128)°11000ft - 12000ft1.0min timed210
MORA6ATLDNDBright256 (76)°> 17000ft1.0min timedICAO rules
NASO1DASBINVHFleft90 (270)°6000ft - 10000ftDME 5.1miICAO rules
NASO1DSIRGUVHFleft90 (270)°8000ft - 24000ftDME 8.6miICAO rules
NASO6ACJNNDBright145 (325)°> 17000ft1.0min timedICAO rules
NASO6ALULERVHFleft81 (261)°8000ft - 12000ft1.0min timed210
NASO6ANOSKOVHFright122 (302)°10000ft - 24000ftDME 9.1miICAO rules
NONT2ANONTUVHFleft6 (186)°20000ft - 24000ft1.5min timedICAO rules
NONT2AORBISVHFleft6 (186)°12000ft - 24000ft1.0min timed220
NONT2ARILKOVHFleft308 (128)°11000ft - 12000ft1.0min timed210
NONT2CNVSNDBright289 (109)°9000ft - 24000ft1.0min timedICAO rules
NONT2CORBISVHFleft6 (186)°12000ft - 24000ft1.0min timed220
NONT2CTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
PRAD2DASBINVHFleft90 (270)°6000ft - 10000ftDME 5.1miICAO rules
PRAD2DPRADOVHFright120 (300)°8000ft - 21000ftDME 5.0miICAO rules
PRAD2DSIRGUVHFleft90 (270)°8000ft - 24000ftDME 8.6miICAO rules
PRAD7ECJNNDBright145 (325)°> 17000ft1.0min timedICAO rules
PRAD7ELULERVHFleft81 (261)°8000ft - 12000ft1.0min timed210
PRAD7ENOSKOVHFright122 (302)°10000ft - 24000ftDME 9.1miICAO rules
PRAD7EPRADOVHFright120 (300)°8000ft - 21000ftDME 5.0miICAO rules
RIDA2AETUNIVHFleft249 (69)°12000ft - 24000ft1.0min timed220
RIDA2ARILKOVHFleft308 (128)°11000ft - 12000ft1.0min timed210
RIDA2AUSATIVHFleft296 (116)°20000ft - 24000ft1.5min timedICAO rules
RIDA3CBUREXVHFright227 (47)°12000ft - 24000ftDME 9.0miICAO rules
RIDA3CTLDNDBright256 (76)°> 17000ft1.0min timedICAO rules
RIDA3CTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
SOTU3CBUREXVHFright227 (47)°12000ft - 24000ftDME 9.0miICAO rules
SOTU3CTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
SOTU6AETUNIVHFleft249 (69)°12000ft - 24000ft1.0min timed220
SOTU6ANVSNDBright289 (109)°9000ft - 24000ft1.0min timedICAO rules
SOTU6ARILKOVHFleft308 (128)°11000ft - 12000ft1.0min timed210
SOTU6ATLDNDBright256 (76)°> 17000ft1.0min timedICAO rules
TERS2ZASBINVHFleft90 (270)°6000ft - 10000ftDME 5.1miICAO rules
TERS2ZNOSKOVHFright122 (302)°10000ft - 24000ftDME 9.1miICAO rules
TERS2ZTERSAVHFright43 (223)°15000ft - 24000ft1.5min timedICAO rules
TERS6ELULERVHFleft81 (261)°8000ft - 12000ft1.0min timed210
TERS6ENOSKOVHFright122 (302)°10000ft - 24000ftDME 9.1miICAO rules
TERS6ETERSAVHFright43 (223)°15000ft - 24000ft1.5min timedICAO rules
TLD2CBUREXVHFright227 (47)°12000ft - 24000ftDME 9.0miICAO rules
TLD2CTLDNDBright256 (76)°> 17000ft1.0min timedICAO rules
TLD2CTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
TLD6AETUNIVHFleft249 (69)°12000ft - 24000ft1.0min timed220
TLD6ANVSNDBright289 (109)°9000ft - 24000ft1.0min timedICAO rules
TLD6ARILKOVHFleft308 (128)°11000ft - 12000ft1.0min timed210
TLD6ATLDNDBright256 (76)°> 17000ft1.0min timedICAO rules
VILA2DASBINVHFleft90 (270)°6000ft - 10000ftDME 5.1miICAO rules
VILA2DSIRGUVHFleft90 (270)°8000ft - 24000ftDME 8.6miICAO rules
VILA6ECJNNDBright145 (325)°> 17000ft1.0min timedICAO rules
VILA6ELULERVHFleft81 (261)°8000ft - 12000ft1.0min timed210
VILA6ENOSKOVHFright122 (302)°10000ft - 24000ftDME 9.1miICAO rules
ZMR4AORBISVHFleft6 (186)°12000ft - 24000ft1.0min timed220
ZMR4APODOGVHFleft285 (105)°20000ft - 24000ft1.5min timedICAO rules
ZMR4ARILKOVHFleft308 (128)°11000ft - 12000ft1.0min timed210
ZMR4CAVILAVHFleft319 (139)°12000ft - 24000ftDME 9.4miICAO rules
ZMR4CNVSNDBright289 (109)°9000ft - 24000ft1.0min timedICAO rules
ZMR4CTOBEKVHFright227 (47)°5000ft - 9000ftDME 6.1miICAO rules
*) magnetic outbound (inbound) holding course
