Airports for X-Plane

Málaga - Malaga

Airport details

CountrySpain
StateAndalusia
RegionLE
AirspaceMadrid Ctr
MunicipalityMálaga
Elevation48ft (15m)
TimezoneGMT +1
Coordinates36.66489, -4.49049
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLEMG
IATA codeAGP
FAA coden/a

Communication

Malaga ATIS120.380
Malaga ATIS124.480
Malaga CLD121.880
Malaga Ground Control121.705
Malaga Ground Control121.955
Malaga Tower122.100
Malaga Tower118.780
Malaga Tower124.780
Malaga Tower118.150
Malaga Approach123.855
Malaga Approach121.025
Malaga Departure121.025
Malaga Departure118.455

Approach frequencies

ILS-cat-IRW31109.918.00mi
ILS-cat-IRW13109.518.00mi
ILS-cat-IRW12110.5518.00mi
3.2° GSRW13109.518.00mi
3° GSRW31109.918.00mi
3° GSRW12110.5518.00mi
Nearby Points of Interest:
Fuente del Rey y conducción de aguas (Málaga)
-
Colegio de Huérfanos de Ferroviarios
-
Fábrica de azúcar de El Tarajal
-
Biblioteca Pública Provincial de Málaga
-
Cerro de la Tortuga
-
convento de San Andrés
-
Mercado de Mayoristas
-
Cueva del Toro
-
Casa Barroca de las Atarazanas
-
Mesón de la Victoria
-
Almacenes Félix Sáenz
-
Edificio La Equitativa
-
Casa en Calle Salinas, nº 6
-
Palacio del Conde de Villalcázar
-
Palacio del Marqués de la Sonora
-
Centro Cultural Provincial
-
Ayuntamiento building
-
Edificio de viviendas Desfile del Amor
-
Palacio de la Tinta
-
Villa Fernanda
-
Castillo del Cerro de la Ermita
-
Castillo de Mijas
-
Iglesia de Nuestra Señora de la Encarnación
-
Castle of Almogía
-
Necrópolis prehistórica de Hacho

Runway info

Runway 12 / 30
 length2752m (9029ft)
 bearing113° / 293°
 width45m (148ft)
 surfaceasphalt
 blast zone190m (623ft) / 255m (837ft)
Runway 13 / 31
 length3203m (10509ft)
 bearing126° / 306°
 width45m (148ft)
 surfaceasphalt
 blast zone75m (246ft) / 75m (246ft)

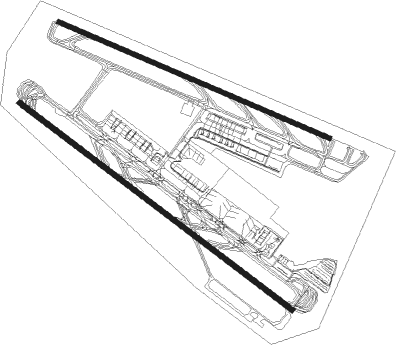

Airport layout


Taxiway locations

 A  A1  A2  A3  AH  B3  C  C2
 D  D1  D2  E1  E2  E3  E4  E5
 E6  E7  EM  F  G1  G10  G11  G12
 G13  G3  G4  G5  G6  G7  G8  G9
 HE1  HE2  HE3  HM  HN1L  HN2  HN3  HS1
 HS2  HS3  HW1  L  L3  Q  Q1  R1A
 R9A  R9B
Parking locations

 02  04  06  13  461  462  463  464
 465  466  467  468  500  501  502  503
 504  505  510  511  512  513  514  515
 516  517  520  521  522  523  524  525
 526  530  531  532  533  534  535  536
 537  538  539  540  541  70  71  72
 73  74  75  76  77  78  79  80
 81  82  83  84  85  86  87  88
 89  90  91  92  93  95  97  99
 F2  F3  Gate  U3  U4  V4  V5  W1
 W3

Nearby beacons

codeidentifierdistbearingfrequency
RMAMALAGA NDB0.7113°330
AGPMALAGA VOR/DME1.19°117.15
MLGMALAGA AEROPUERTO SUR VOR/DME1.1311°113.55
GMMALAGA NDB5.3307°350
MGAMALAGA VOR/DME10.639°112
MARMARTIN VOR/DME31.8311°112.60
GDAGRANADA VOR/DME39.244°113.40
GRGRANADA OESTE NDB44.251°285
TGRGRANADA TACAN49.861°113.10
GRAGRANADA NDB50.157°412
GBRGIBRALTAR TACAN51.7239°113.60
CEUCEUTA NDB60.8227°300

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW13
 BLN3C, BLN3H98mi30°
 VIBA3H, VIBA2C60mi50°
 PEPA2H53mi62°
 ROLA1H90mi65°
 NESD1H37mi78°
 ULPE2H33mi86°
 INKA2H30mi95°
 PEKO2H71mi128°
 PIMO2H37mi218°
 JRZ2H74mi276°
 SVL3H76mi301°
RW30
 BLN2L, BLN2S, BLN2T98mi30°
 VIBA2T, VIBA2S60mi50°
 PEPA2T53mi62°
 ROLA1T, ROLA1S90mi65°
 NESD1S37mi78°
 ULPE2S33mi86°
 INKA2S30mi95°
 PEKO2S71mi128°
 PIMO1S37mi218°
 JRZ1L, JRZ1S74mi276°
 SVL2S, SVL2L76mi301°
RW31
 BLN3P, BLN2U, BLN2M98mi30°
 VIBA2U, VIBA3P60mi50°
 PEPA2U53mi62°
 ROLA1U, ROLA1P90mi65°
 NESD1P37mi78°
 ULPE2P33mi86°
 INKA2P30mi95°
 PEKO2P71mi128°
 PIMO2P37mi218°
 JRZ1M, JRZ2P74mi276°
 SVL2M, SVL3P76mi301°

STAR starting pointsdistanceinbound heading
ALL
 PIMO1Q36.538°
 VJF2K76.174°
 JRZ1K74.496°
 SVL2K76.2121°
 VULP2K67.4164°
 BLN2Q98.4210°
 VIBA2Q60.0230°
 ROLA1Q90.4245°
 NESD2Q37.2258°
 BOLK2Q91.4276°
 GONZ2Q82.7286°
 PEKO2Q71.2308°
RW31
 PIMO1J36.538°
 VJF2J76.174°
 JRZ1J74.496°
 SVL3J76.2121°
 VULP3J67.4164°
 BLN1Z98.4210°
 VIBA1Z60.0230°
 ROLA1Z90.4245°
 NESD2Z37.2258°
 BOLK2Z91.4276°
 GONZ2Z82.7286°
 PEKO2Z71.2308°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BLN1ZPISAVVHFright107 (287)°4000ft - 11000ftDME 5.0mi230
BLN2QBAENAVHFright45 (225)°> 10000ftDME 4.5mi230
BLN2QTOLSUVHFleft79 (259)°> 7000ftDME 5.0mi220
BOLK2QMGANDBright90 (270)°> 8500ft1.0min timed230
BOLK2QTOLSUVHFleft79 (259)°> 7000ftDME 5.0mi220
BOLK2ZPISAVVHFright107 (287)°4000ft - 11000ftDME 5.0mi230
GONZ2QMGANDBright90 (270)°> 8500ft1.0min timed230
GONZ2QTOLSUVHFleft79 (259)°> 7000ftDME 5.0mi220
GONZ2ZPISAVVHFright107 (287)°4000ft - 11000ftDME 5.0mi230
JRZ1JETROVVHFleft179 (359)°4000ft - 8000ftDME 5.0mi230
JRZ1JKURETVHFleft288 (108)°> 8500ftDME 5.0mi230
JRZ1KOMIGOVHFright10 (190)°> 6000ftDME 5.0mi230
NESD2QMGANDBright90 (270)°> 8500ft1.0min timed230
NESD2QTOLSUVHFleft79 (259)°> 7000ftDME 5.0mi220
NESD2ZPISAVVHFright107 (287)°4000ft - 11000ftDME 5.0mi230
PEKO2QMGANDBright90 (270)°> 8500ft1.0min timed230
PEKO2QTOLSUVHFleft79 (259)°> 7000ftDME 5.0mi220
PEKO2ZPISAVVHFright107 (287)°4000ft - 11000ftDME 5.0mi230
PIMO1JETROVVHFleft179 (359)°4000ft - 8000ftDME 5.0mi230
PIMO1QMGANDBright90 (270)°> 8500ft1.0min timed230
PIMO1QTOLSUVHFleft79 (259)°> 7000ftDME 5.0mi220
ROLA1QTOLSUVHFleft79 (259)°> 7000ftDME 5.0mi220
ROLA1ZPISAVVHFright107 (287)°4000ft - 11000ftDME 5.0mi230
SVL2KOMIGOVHFright10 (190)°> 6000ftDME 5.0mi230
SVL3JETROVVHFleft179 (359)°4000ft - 8000ftDME 5.0mi230
SVL3JKURETVHFleft288 (108)°> 8500ftDME 5.0mi230
SVL3JMARNDBright326 (146)°> 8500ft1.0min timed230
VIBA1ZPISAVVHFright107 (287)°4000ft - 11000ftDME 5.0mi230
VIBA2QTOLSUVHFleft79 (259)°> 7000ftDME 5.0mi220
VJF2JETROVVHFleft179 (359)°4000ft - 8000ftDME 5.0mi230
VJF2JKURETVHFleft288 (108)°> 8500ftDME 5.0mi230
VJF2KOMIGOVHFright10 (190)°> 6000ftDME 5.0mi230
VULP2KOMIGOVHFright10 (190)°> 6000ftDME 5.0mi230
VULP2KVULPEVHFright10 (190)°> 6000ftDME 5.2mi230
VULP3JETROVVHFleft179 (359)°4000ft - 8000ftDME 5.0mi230
VULP3JKURETVHFleft288 (108)°> 8500ftDME 5.0mi230
VULP3JMARNDBright326 (146)°> 8500ft1.0min timed230
*) magnetic outbound (inbound) holding course
