Airports for X-Plane

Menorca Island - Menorca

Airport details

CountrySpain
StateBalearic Islands
RegionLE
AirspaceBarcelona Ctr
MunicipalityMaó
Elevation298ft (91m)
TimezoneGMT +1
Coordinates39.86250, 4.21861
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLEMH
IATA codeMAH
FAA coden/a

Communication

Menorca ATIS129.150
Menorca Tower121.750
Menorca Approach119.650
Menorca Departure118.200

Approach frequencies

ILS-cat-IRW01110.318.00mi
ILS-cat-IRW19111.518.00mi
3° GSRW01110.318.00mi
3° GSRW19111.518.00mi

Runway info

Runway 01 / 19
 length2552m (8373ft)
 bearing12° / 192°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 196m (643ft)
 blast zone49m (161ft) / 64m (210ft)

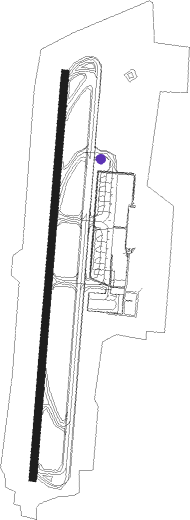

Airport layout - taxiway location J


Taxiway locations

 C  D  E  F  J  NR  T
Parking locations

 1  10  11  12  13  14  15  16
 17  19  2  21  23  3  4  5
 5A  6  7  7A  8  9  AG

Nearby beacons

codeidentifierdistbearingfrequency
MHNMENORCA VOR/DME0.1296°112.60
MNMENORCA NDB1.5192°344
CDPCAPDEPERA VOR/DME37.5258°112.90
PTCPORTO COLOM NDB51.5246°401

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW01
 MERO2C39mi13°
 ISTE2C24mi66°
 MORS3C21mi78°
 NEVI1C, NEVI1H48mi236°
 MAME1C, MAME1H12mi246°
 MJV4H, MJV4C72mi254°
 BAVE2C, BAVE2H175mi255°
 EDUL2C, EDUL2H88mi256°
 EPAM2H, EPAM2C132mi265°
 LUNI3C51mi305°
 SARG3C40mi340°
RW19
 MERO3D39mi13°
 ISTE2D24mi66°
 MORS3D21mi78°
 NEVI1D48mi236°
 MAME1D12mi246°
 MJV4D72mi254°
 BAVE2D175mi255°
 EDUL2D88mi256°
 EPAM2D132mi265°
 LUNI3D51mi305°
 SARG3G40mi340°

STAR starting pointsdistanceinbound heading
RW01
 KABR2B72.660°
 PTC2B51.566°
 CDP1B37.578°
 TONI2B44.485°
 SARG3B39.6160°
 RIXO2B37.8220°
 MORS3B21.4258°
RW19
 KABR2F72.660°
 PTC2F51.566°
 CDP1F37.578°
 TONI3F44.485°
 SARG4F39.6160°
 RIXO3F37.8220°
 MORS4F21.4258°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CDP1BBALIOVHFright186 (6)°> 3000ftDME 5.0miICAO rules
CDP1FDONAVVHFright10 (190)°> 3000ft1.0min timedICAO rules
KABR2BBALIOVHFright186 (6)°> 3000ftDME 5.0miICAO rules
KABR2FDONAVVHFright10 (190)°> 3000ft1.0min timedICAO rules
MORS3BBALIOVHFright186 (6)°> 3000ftDME 5.0miICAO rules
MORS4FDONAVVHFright10 (190)°> 3000ft1.0min timedICAO rules
PTC2BBALIOVHFright186 (6)°> 3000ftDME 5.0miICAO rules
PTC2FDONAVVHFright10 (190)°> 3000ft1.0min timedICAO rules
RIXO2BBALIOVHFright186 (6)°> 3000ftDME 5.0miICAO rules
RIXO3FDONAVVHFright10 (190)°> 3000ft1.0min timedICAO rules
SARG3BBALIOVHFright186 (6)°> 3000ftDME 5.0miICAO rules
SARG4FDONAVVHFright10 (190)°> 3000ft1.0min timedICAO rules
TONI2BBALIOVHFright186 (6)°> 3000ftDME 5.0miICAO rules
TONI3FDONAVVHFright10 (190)°> 3000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
