Airports for X-Plane

Palma De Mallorca

Airport details

CountrySpain
StateBalearic Islands
RegionLE
AirspaceBarcelona Ctr
MunicipalityPalma
Elevation20ft (6m)
TimezoneGMT +1
Coordinates39.55767, 2.73941
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLEPA
IATA codePMI
FAA coden/a

Communication

Palma de Mallorca ATIS119.255
Palma de Mallorca Ground Control S121.705
Palma de Mallorca Ground Control N121.905
Palma de Mallorca Tower118.305
Palma de Mallorca Approach118.955
Palma de Mallorca Departure119.155

Approach frequencies

ILS-cat-IIIRW24L109.318.00mi
ILS-cat-IRW24R109.918.00mi
ILS-cat-IRW06L110.918.00mi
3° GSRW24L109.318.00mi
3° GSRW24R109.918.00mi
3° GSRW06L110.918.00mi

Runway info

Runway 06L / 24R
 length3267m (10719ft)
 bearing65° / 245°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 70m (230ft)
 blast zone80m (262ft) / 0m (0ft)
Runway 06R / 24L
 length2998m (9836ft)
 bearing65° / 245°
 width45m (148ft)
 surfaceasphalt
 displ threshold410m (1345ft) / 0m (0ft)
 blast zone0m (0ft) / 60m (197ft)

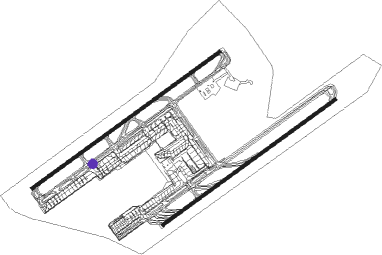

Airport layout - taxiway location NORTH6


Taxiway locations

 A  B  C  D  E  F  G  H1
 H10  H2  H4  H5  H6  H7  H8  H9
 J  K  LA  LC  LINK  LINK1  LINK2  LINK3
 LINK4  LINK5  LINK6  LJ1  LJ2  LM  LP1  LP2
 LQ1  LQ2  M  N1  N2  N3  N4  N6
 NORTH1  NORTH10  NORTH11  NORTH12  NORTH13  NORTH2  NORTH3  NORTH4
 NORTH5  NORTH6  NORTH7  NORTH8  NORTH9  P  Q  R12
 R16  S1  S2  S3  SOUTH  SOUTH2  SOUTH3  SOUTH4
 SOUTH5  SOUTH6  SOUTH7  U  W51  W52
Parking locations

 GA  North  South

Nearby beacons

codeidentifierdistbearingfrequency
SSJSON SAN JUAN/PALMA DE MAL TACAN0.3288°108.40
JOAPALMA SON SANT JOAN VOR/DME0.546°117.70
PAPALMA DE MALLORCA NDB4.563°307
MJVMALLORCA VOR/DME7.4171°113.30
CSTCOSTIX (PALMA DE MALLORCA) NDB9.565°351
ADXANDRAITX NDB15.9269°384
PTCPORTO COLOM NDB25.2104°401
POSPOLLENSA VOR/DME28.145°116.40
CDPCAPDEPERA VOR/DME33.279°112.90

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW06L
 MERO2L94mi60°
 TONI1L27mi67°
 ISTE1L94mi75°
 MORS2L92mi78°
 CDP1L33mi79°
 OSGA4L33mi163°
 MEBU4L54mi212°
 NELU2L54mi231°
 BAVE4G, BAVE3S104mi252°
 EPAM3N, EPAM2L63mi272°
 DRAG4N, DRAG3L52mi295°
 GALA3L, GALA4N51mi307°
 ESPO4N, ESPO3L53mi318°
RW06R
 MERO6B94mi60°
 TONI2E27mi67°
 ISTE3B94mi75°
 MORS4E92mi78°
 CDP1E33mi79°
 OSGA4B33mi163°
 MEBU4B54mi212°
 NELU2B54mi231°
 BAVE4B, BAVE3T104mi252°
 EPAM3R, EPAM2B63mi272°
 DRAG4R, DRAG3B52mi295°
 GALA4R, GALA3B51mi307°
 ESPO4R, ESPO3B53mi318°
RW24L
 MERO2G94mi60°
 ISTE1G94mi75°
 MORS2G92mi78°
 PTC2G25mi104°
 OSGA2G33mi163°
 MEBU2G54mi212°
 NELU1Z54mi231°
 BAVE1Z104mi252°
 EPAM1Z63mi272°
 DRAG1Z52mi295°
 GALA1Z51mi307°
 ESPO1Z53mi318°
RW24R
 MERO3A94mi60°
 ISTE2A94mi75°
 MORS3A92mi78°
 PTC2A25mi104°
 OSGA3A33mi163°
 MEBU3A54mi212°
 NELU1A54mi231°
 BAVE3A104mi252°
 EPAM2A63mi272°
 DRAG2A52mi295°
 GALA2A51mi307°
 ESPO2A53mi318°

STAR starting pointsdistanceinbound heading
RW06 (ALL)
 MEBU3M, MEBU2J53.932°
 LAMP2M59.147°
 RUXE2M110.067°
 GODO2J, GODO3M62.582°
 TOLS3M, TOLS1R, TOLS2J58.7160°
 LORE1R, LORE1J, LORE3M56.6178°
 KENA3M, KENA2J59.5203°
 LUNI3M, LUNI2J60.8217°
 RIXO2M, RIXO1J101.8247°
 MORS4M, MORS2J92.1258°
 MAME1M59.2261°
 OSGA3M, OSGA3J32.8343°
RW24 (ALL)
 MEBU2K, MEBU3P53.932°
 LAMP2P59.147°
 RUXE2P110.067°
 GODO3P, GODO2K62.582°
 TOLS2P, TOLS2K58.7160°
 LORE1K, LORE1P56.6178°
 KENA2K, KENA2P59.5203°
 LUNI2K, LUNI2P60.8217°
 RIXO1P, RIXO1K101.8247°
 MORS2K, MORS2P92.1258°
 MAME1P59.2261°
 OSGA3P, OSGA3K32.8343°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06LADX (89°)ADX 5000ft
PA407 (4mi, 121°) 3500ft
PA09W (4mi, 121°) 2000ft
RW06LMJV (351°)MJV 3000ft
PA406 (8mi, 261°)
PA09W (4mi, 322°) 2000ft
 RNAVPA09W 2000ft
PA05W (4mi, 65°) 1700ft
LEPA (7mi, 66°) 64ft
PA410 (turn)
PA420 (12mi, 45°) 3000ft
(2391mi, 184°)
PA421 (2384mi, 4°) 3000ft
MJV (19mi, 244°) 3000ft
MJV (turn) 3000ft
RW24LYBAVUM (247°)BAVUM 4500ft
PA12E (6mi, 245°) 3000ft
RW24LYCDP (259°)CDP 4500ft
BAVUM (16mi, 272°) 4500ft
PA12E (6mi, 245°) 3000ft
RW24LYMJV (351°)MJV 3000ft
PA600 (16mi, 65°) 3000ft
PA12E (6mi, 322°) 3000ft
RW24LYPOS (225°)POS 5000ft
BAVUM (13mi, 187°) 4500ft
PA12E (6mi, 245°) 3000ft
 RNAVPA12E 3000ft
PA08E (4mi, 245°) 2500ft
LEPA (8mi, 249°) 57ft
(2380mi, 184°) 600ft
PA602 (2371mi, 4°)
MJV (6mi, 76°) 3000ft
MJV (turn) 3000ft
RW24LZBAVUM (247°)BAVUM 4500ft
PA12E (6mi, 245°) 3000ft
RW24LZCDP (259°)CDP 4500ft
BAVUM (16mi, 272°) 4500ft
PA12E (6mi, 245°) 3000ft
RW24LZMJV (351°)MJV 3000ft
PA600 (16mi, 65°) 3000ft
PA12E (6mi, 322°) 3000ft
RW24LZPOS (225°)POS 5000ft
BAVUM (13mi, 187°) 4500ft
PA12E (6mi, 245°) 3000ft
 RNAVPA12E 3000ft
PA08E (4mi, 245°) 2500ft
LEPA (8mi, 249°) 57ft
PA601 (2mi, 226°)
(2379mi, 184°)
PA602 (2371mi, 4°)
MJV (6mi, 76°) 3000ft
MJV (turn) 3000ft
RW24RYCDP (259°)CDP 4500ft
MUROS (16mi, 273°) 4500ft
PA12N (6mi, 246°) 3000ft
RW24RYMJV (351°)MJV 4000ft
PA600 (16mi, 65°) 3000ft
PA12N (7mi, 322°) 3000ft
RW24RYMUROS (245°)MUROS 4500ft
PA12N (6mi, 246°) 3000ft
RW24RYPOS (225°)POS 5000ft
MUROS (13mi, 189°) 4500ft
PA12N (6mi, 246°) 3000ft
 RNAVPA12N 3000ft
PA08N (4mi, 245°) 2700ft
LEPA (8mi, 244°) 57ft
(2380mi, 184°) 4000ft
MJV (2373mi, 4°) 4000ft
MJV (turn) 4000ft
RW24RZCDP (259°)CDP 4500ft
MUROS (16mi, 273°) 4500ft
PA12N (6mi, 246°) 3000ft
RW24RZMJV (351°)MJV 4000ft
PA600 (16mi, 65°) 3000ft
PA12N (7mi, 322°) 3000ft
RW24RZMUROS (245°)MUROS 4500ft
PA12N (6mi, 246°) 3000ft
RW24RZPOS (225°)POS 5000ft
MUROS (13mi, 189°) 4500ft
PA12N (6mi, 246°) 3000ft
 RNAVPA12N 3000ft
PA08N (4mi, 245°) 2700ft
LEPA (8mi, 244°) 57ft
PA700 (26mi, 245°) 4000ft
MJV (24mi, 78°) 4000ft
MJV (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
GODO3MADXFIXright303 (123)°> 5000ft1.0min timedICAO rules
GODO3MRUPITVHFleft251 (71)°> 4000ft1.0min timed230
GODO3PADXFIXright303 (123)°> 5000ft1.0min timedICAO rules
GODO3PPOSVHFleft209 (29)°> 13000ft1.0min timedICAO rules
GODO3PRUPITVHFleft251 (71)°> 4000ft1.0min timed230
KENA2PCDPNDBleft93 (273)°> 4500ft1.0min timedICAO rules
KENA3MCDPNDBleft93 (273)°> 4500ft1.0min timedICAO rules
KENA3MMJVNDBleft81 (261)°> 3000ft1.0min timedICAO rules
LAMP2MIBIVUVHFright232 (52)°> 5000ft1.0min timed230
LAMP2MMJVNDBleft81 (261)°> 3000ft1.0min timedICAO rules
LAMP2PIBIVUVHFright232 (52)°> 5000ft1.0min timed230
LAMP2PMJVNDBleft81 (261)°> 3000ft1.0min timedICAO rules
LORE1PPOSVHFleft209 (29)°> 13000ft1.0min timedICAO rules
LORE1PPOSBAVHFleft331 (151)°> 7000ftDME 5.0miICAO rules
LORE1RPOSBAVHFleft331 (151)°> 7000ftDME 5.0miICAO rules
LORE1RTAKUSVHFright55 (235)°> 7000ft1.0min timedICAO rules
LORE3MADXFIXright303 (123)°> 5000ft1.0min timedICAO rules
LORE3MPOSBAVHFleft331 (151)°> 7000ftDME 5.0miICAO rules
LORE3MTAKUSVHFright55 (235)°> 7000ft1.0min timedICAO rules
LUNI2PCDPNDBleft93 (273)°> 4500ft1.0min timedICAO rules
LUNI3MCDPNDBleft93 (273)°> 4500ft1.0min timedICAO rules
LUNI3MMJVNDBleft81 (261)°> 3000ft1.0min timedICAO rules
MAME1MMJVNDBleft81 (261)°> 3000ft1.0min timedICAO rules
MAME1PCDPNDBleft93 (273)°> 4500ft1.0min timedICAO rules
MEBU3MIBIVUVHFright232 (52)°> 5000ft1.0min timed230
MEBU3MMJVNDBleft81 (261)°> 3000ft1.0min timedICAO rules
MEBU3PIBIVUVHFright232 (52)°> 5000ft1.0min timed230
MEBU3PMJVNDBleft81 (261)°> 3000ft1.0min timedICAO rules
MORS2PCDPNDBleft93 (273)°> 4500ft1.0min timedICAO rules
MORS4MMJVNDBleft81 (261)°> 3000ft1.0min timedICAO rules
OSGA3MMJVNDBleft81 (261)°> 3000ft1.0min timedICAO rules
OSGA3PMJVNDBleft81 (261)°> 3000ft1.0min timedICAO rules
RIXO1PCDPNDBleft93 (273)°> 4500ft1.0min timedICAO rules
RIXO2MCDPNDBleft93 (273)°> 4500ft1.0min timedICAO rules
RIXO2MMJVNDBleft81 (261)°> 3000ft1.0min timedICAO rules
RUXE2MIBIVUVHFright232 (52)°> 5000ft1.0min timed230
RUXE2MMJVNDBleft81 (261)°> 3000ft1.0min timedICAO rules
RUXE2PIBIVUVHFright232 (52)°> 5000ft1.0min timed230
RUXE2PMJVNDBleft81 (261)°> 3000ft1.0min timedICAO rules
TOLS1RINPUSVHFleft328 (148)°> 8000ft1.0min timedICAO rules
TOLS1RTAKUSVHFright55 (235)°> 7000ft1.0min timedICAO rules
TOLS2PPOSVHFleft209 (29)°> 13000ft1.0min timedICAO rules
TOLS3MADXFIXright303 (123)°> 5000ft1.0min timedICAO rules
TOLS3MINPUSVHFleft328 (148)°> 8000ft1.0min timedICAO rules
TOLS3MTAKUSVHFright55 (235)°> 7000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
