La Seu D'urgell Pyrenees And Andorra - La Seu D'urgell

Airport details

CountrySpain
StateCatalonia
RegionLE
AirspaceBarcelona Ctr
MunicipalityRibera d'Urgellet
Elevation2624ft (800m)
TimezoneGMT +1
Coordinates42.33738, 1.40241
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLESU
IATA codeLEU
FAA coden/a

Communication

La Seu d'Urgell AFIS122.200

Runway info

Runway 03 / 21
 length1389m (4557ft)
 bearing39° / 219°
 width28m (92ft)
 surfaceasphalt
 displ threshold60m (197ft) / 60m (197ft)

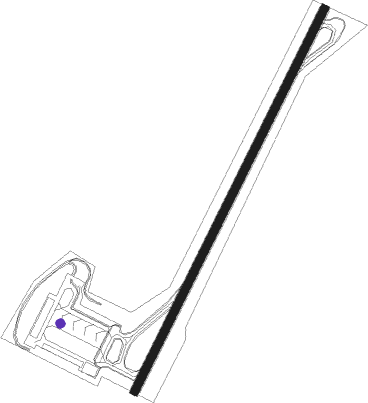

Airport layout - parking location 24


Parking locations

 11  12  13  14  15  16  17  18
 21  22  23  24  31  32  33  34
 35  36  37  38

Nearby beacons

codeidentifierdistbearingfrequency
SALSAINTE LEOCADIE NDB27.880°418
PMRPAMIERS NDB46.114°384
LLEILERDA VOR/DME53.4235°113.60
LRDLERIDA NDB57.9224°404
SLLSABADELL VOR/DME58.3139°112
VLAVILLAFRANCA VOR/DME60172°113.15
CSCARCASSONNE SALVAZA NDB63.942°345

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW21
 REBU1Z41mi204°

STAR starting pointsdistanceinbound heading
RW03
 REBU1F40.524°
 LATR1F35.3339°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW03UPISA (22°)UPISA 8000ft
SU17S (9mi, 5°) 7300ft
 RNAVSU17S 7300ft
SU09S (7mi, 32°) 7000ft
SU06S (3mi, 32°) 5600ft
SU04S (2mi, 32°) 4614ft
SU400 (5mi, 32°) 5300ft
SU06S (7mi, 212°)
UPISA (19mi, 200°) 8000ft
UPISA (turn) 8000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
LATR1FUPISAVHFright183 (3)°> 8000ft1.0min timed230
REBU1FUPISAVHFright183 (3)°> 8000ft1.0min timed230
*) magnetic outbound (inbound) holding course
