Airports for X-Plane

Valencia

Airport details

CountrySpain
StateValencian Community
RegionLE
AirspaceBarcelona Ctr
MunicipalityQuart de Poblet
Elevation235ft (72m)
TimezoneGMT +1
Coordinates39.48034, -0.47892
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLEVC
IATA codeVLC
FAA coden/a

Communication

Valencia ATIS121.075
Valencia Tower123.575
Valencia Ground Control121.875
Valencia Tower118.550
Valencia Approach124.750
Valencia Approach120.100

Approach frequencies

ILS-cat-IRW30110.118.00mi
ILS-cat-IRW12111.518.00mi
3° GSRW30110.118.00mi
3° GSRW12111.518.00mi

Runway info

Runway 12 / 30
 length3210m (10531ft)
 bearing111° / 291°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 300m (984ft)
 blast zone240m (787ft) / 255m (837ft)

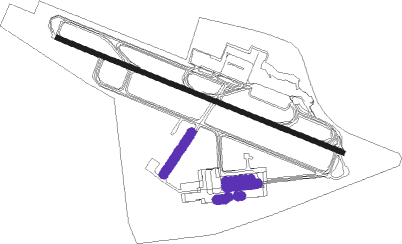

Airport layout - parking location Ramp


Taxiway locations

 GATEA  GATED  H1  H2  H3  H4  H5  H6
 H7  H8  H9  N2  T2  T3  T4  TIRIO
Parking locations

 Cargo  Gate  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
VLCVALENCIA VOR/DME0.3322°116.10
PNDPINEDO (VALENCIA) NDB6.6108°340
EBTBETERA NDB8.73°362
SGOSAGUNTO (VALENCIA) NDB17.154°356
CLSCALLES (VALENCIA) VOR/DME27.1294°117.55
CTNCASTELLON VOR/DME51.538°117.05

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW12
 TATO5B32mi21°
 SOPE5B31mi53°
 ORVU2B, ORVU1G43mi99°
 ODSE1B51mi113°
 ALT5B73mi184°
 NARG3B51mi215°
 ASTR5G46mi240°
 CENT7G51mi294°
 MAND6G37mi308°
RW30
 TATO6A32mi21°
 SOPE5A31mi53°
 ORVU1H, ORVU1A43mi99°
 ODSE1A, ODSE1H51mi113°
 ALT5A73mi184°
 NARG3A51mi215°
 ASTR5F46mi240°
 CENT8A51mi294°
 MAND7A37mi308°

STAR starting pointsdistanceinbound heading
RW12
 ALT2P, ALT4D72.94°
 NARG4D, NARG2P50.735°
 ASTR2P, ASTR4J45.660°
 MABU2D, MABU2J31.396°
 ABOS4D, ABOS2P41.3110°
 MAND4D, MAND2P36.6128°
 SAUR4D, SAUR2P48.5201°
 SOPE2P, SOPE4D30.5233°
 ARGO3J, ARGO3D, ARGO2K, ARGO2P36.2266°
 NINO3F, NINO5D, NINO2P, NINO2J47.5286°
RW30
 ALT2K, ALT4C72.94°
 NARG2K, NARG2R, NARG3E, NARG4C50.735°
 ASTR4C, ASTR3E, ASTR2S, ASTR2B45.660°
 MABU2B, MABU2E, MABU2C, MABU2Y31.396°
 MAND4C, MAND2K36.6128°
 SAUR4C, SAUR2K48.5201°
 SOPE2E, SOPE2K, SOPE2J, SOPE4C30.5233°
 ARGO2B, ARGO2R, ARGO3E, ARGO3C36.2266°
 NINO5C, NINO2K47.5286°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12-YCLS (114°)CLS 6000ft
VC401 (13mi, 115°) 3700ft
VC09W (4mi, 115°) 2700ft
RW12-YOPERA (115°)OPERA 5500ft
VC09W (6mi, 120°) 2700ft
 RNAVVC09W 2700ft
VC05W (4mi, 111°) 2300ft
LEVC (7mi, 114°) 289ft
VC405 (6mi, 107°)
VC406 (8mi, 143°)
URIAS (12mi, 247°) 4500ft
URIAS (turn) 4500ft
RW12-ZCLS (114°)CLS 6000ft
VC401 (13mi, 115°) 3700ft
VC09W (4mi, 115°) 2700ft
RW12-ZOPERA (115°)OPERA 5500ft
VC09W (6mi, 120°) 2700ft
 RNAVVC09W 2700ft
VC06W (3mi, 111°) 2200ft
LEVC (7mi, 114°) 289ft
VC405 (6mi, 107°)
VC406 (8mi, 143°)
URIAS (12mi, 247°) 4500ft
URIAS (turn) 4500ft
RW30-YMULAT (285°)MULAT 3500ft
VC08E (6mi, 280°) 2400ft
 RNAVVC08E 2400ft
VC05E (4mi, 291°) 1800ft
LEVC (5mi, 287°) 224ft
VC500 (7mi, 294°)
SGO (20mi, 70°) 4000ft
SGO (turn) 4000ft
RW30-ZMULAT (285°)MULAT 3500ft
VC08E (6mi, 280°) 2400ft
 RNAVVC08E 2400ft
VC05E (4mi, 291°) 1800ft
LEVC (5mi, 287°) 224ft
VC500 (7mi, 294°)
SGO (20mi, 70°) 4000ft
SGO (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABOS4DCLSNDBright297 (117)°> 6000ft1.0min timed210
ALT4CMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
ALT4DOPERAVHFleft300 (120)°> 5000ftDME 5.0mi220
ARGO3CMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
ARGO3DVLCNDBright298 (118)°> 4000ft1.0min timedICAO rules
ARGO3EMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
ARGO3JOPERAVHFleft300 (120)°> 5000ftDME 5.0mi220
ASTR3EMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
ASTR4CMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
ASTR4JOPERAVHFleft300 (120)°> 5000ftDME 5.0mi220
MABU2CMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
MABU2DOPERAVHFleft300 (120)°> 5000ftDME 5.0mi220
MABU2EMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
MAND2KSGOFIXright47 (227)°> 4000ft1.0min timedICAO rules
MAND4CMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
MAND4CSGOFIXright47 (227)°> 4000ft1.0min timedICAO rules
MAND4DCLSNDBright297 (117)°> 6000ft1.0min timed210
NARG3EMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
NARG4CMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
NARG4DOPERAVHFleft300 (120)°> 5000ftDME 5.0mi220
NINO3FOPERAVHFleft300 (120)°> 5000ftDME 5.0mi220
NINO5CMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
NINO5DVLCNDBright298 (118)°> 4000ft1.0min timedICAO rules
SAUR2KSGOFIXright47 (227)°> 4000ft1.0min timedICAO rules
SAUR4CMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
SAUR4CSGOFIXright47 (227)°> 4000ft1.0min timedICAO rules
SAUR4DOPERAVHFleft300 (120)°> 5000ftDME 5.0mi220
SOPE2EMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
SOPE2KSGOFIXright47 (227)°> 4000ft1.0min timedICAO rules
SOPE4CMULATVHFright109 (289)°> 3500ftDME 5.0miICAO rules
SOPE4CSGOFIXright47 (227)°> 4000ft1.0min timedICAO rules
SOPE4DOPERAVHFleft300 (120)°> 5000ftDME 5.0mi220
*) magnetic outbound (inbound) holding course
