Airports for X-Plane

Sevilla - Sevilla San Pablo

Airport details

CountrySpain
StateAndalusia
RegionLE
AirspaceMadrid Ctr
MunicipalitySeville
Elevation105ft (32m)
TimezoneGMT +1
Coordinates37.41806, -5.89889
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLEZL
IATA codeSVQ
FAA coden/a

Communication

Sevilla San Pablo Seville ATIS118.175
Sevilla San Pablo Seville Ground121.700
Sevilla San Pablo Seville Tower118.100
Sevilla San Pablo Seville Approach120.800
Sevilla San Pablo Seville Approach128.500

Approach frequencies

ILS-cat-IRW09111.118.00mi
ILS-cat-IRW27110.118.00mi
3° GSRW09111.118.00mi
3° GSRW27110.118.00mi

Runway info

Runway 09 / 27
 length3363m (11033ft)
 bearing90° / 270°
 width45m (148ft)
 surfaceasphalt

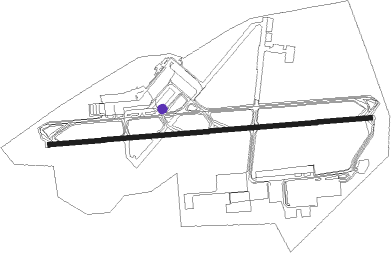

Airport layout - taxiway location G6


Taxiway locations

 A1  A2  A4  E1  E3  E5  G6  HP1
 HP2  HP3  HP4  S2
Parking locations

 Business  Cargo  GA  Gate  Mil  Ryanair

Nearby beacons

codeidentifierdistbearingfrequency
SPPSEVILLE NDB4.990°420
SVLSEVILLE VOR/DME6.586°113.70
EECEL COPERO (SEVILLA) NDB8224°327
MRNMORON (SEVILLE) VOR/DME19.7131°115.50
JERJEREZ NDB35.4191°433
JRZJEREZ VOR/DME36.7192°113
MARMARTIN VOR/DME50.7111°112.60
AOGROTA TACAN51210°108.60

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW09
 HIJ2R76mi36°
 BUDI2R165mi81°
 VIBA2R108mi91°
 VJF3R71mi184°
 JRZ2R37mi192°
 CLAN3R68mi222°
 ONUB3R42mi259°
 SANT3R24mi302°
RW27
 HIJ4G101mi25°
 HIJ1P76mi36°
 BUDI3G165mi81°
 VIBA3G108mi91°
 VJF2G71mi184°
 JRZ2G37mi192°
 CLAN3G68mi222°
 ONUB2G42mi259°
 SANT2P, SANT4G24mi302°

STAR starting pointsdistanceinbound heading
RW09
 VJF4F70.84°
 OSLE2F63.679°
 SANT4F24.2122°
 HIJ4F75.6216°
 BLN2K, BLN3F116.5252°
 MAMI1F146.3260°
 VIBA4F108.2271°
RW27
 VJF4E, VJF3M70.84°
 OSLE2E, OSLE2M63.679°
 SANT3E24.2122°
 HIJ4E75.6216°
 BLN3E116.5252°
 MAMI1E, MAMI1M146.3260°
 VIBA3E, VIBA2M108.2271°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BLN2KTENDUVHFleft270 (90)°> 2000ftDME 5.0miICAO rules
BLN3ERUVENVHFright43 (223)°> 6000ftDME 5.0miICAO rules
BLN3FTENDUVHFleft270 (90)°> 2000ftDME 5.0miICAO rules
HIJ4ERUVENVHFright43 (223)°> 6000ftDME 5.0miICAO rules
HIJ4FTENDUVHFleft270 (90)°> 2000ftDME 5.0miICAO rules
MAMI1ESPPFIXright91 (271)°> 2000ft1.0min timed210
MAMI1FTENDUVHFleft270 (90)°> 2000ftDME 5.0miICAO rules
MAMI1MRUVENVHFright43 (223)°> 6000ftDME 5.0miICAO rules
MAR3MSVLNDBright84 (264)°> 3000ftDME 5.0mi220
MAR4ESPPFIXright91 (271)°> 2000ft1.0min timed210
MAR5FTENDUVHFleft270 (90)°> 2000ftDME 5.0miICAO rules
OSLE2ESPPFIXright91 (271)°> 2000ft1.0min timed210
OSLE2FTENDUVHFleft270 (90)°> 2000ftDME 5.0miICAO rules
OSLE2MSVLNDBright84 (264)°> 3000ftDME 5.0mi220
SANT3ESVLNDBright84 (264)°> 3000ftDME 5.0mi220
SANT4FTENDUVHFleft270 (90)°> 2000ftDME 5.0miICAO rules
VIBA2MSVLNDBright84 (264)°> 3000ftDME 5.0mi220
VIBA3ESPPFIXright91 (271)°> 2000ft1.0min timed210
VIBA4FTENDUVHFleft270 (90)°> 2000ftDME 5.0miICAO rules
VJF3MSVLNDBright84 (264)°> 3000ftDME 5.0mi220
VJF4ESPPFIXright91 (271)°> 2000ft1.0min timed210
VJF4FTENDUVHFleft270 (90)°> 2000ftDME 5.0miICAO rules
*) magnetic outbound (inbound) holding course
