Bordeaux/mérignac - Bordeaux Merignac
Airport details
| Country | France |
| State | Nouvelle-Aquitaine |
| Region | LF |
| Airspace | Bordeaux Ctr |
| Municipality | Mérignac |
| Elevation | 166ft (51m) |
| Timezone | GMT +1 |
| Coordinates | 44.83834, -0.69645 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | LFBD |
| IATA code | BOD |
| FAA code | n/a |
Communication
| Bordeaux Merignac ATIS | 131.150 |
| Bordeaux Merignac Ground | 121.900 |
| Bordeaux Merignac Tower | 118.300 |
| Bordeaux Merignac Approach | 118.600 |
Approach frequencies
| ILS-cat-III | RW23 | 110.3 | 18.00mi |
| ILS-cat-I | RW29 | 111.15 | 18.00mi |
| 3° GS | RW23 | 110.3 | 18.00mi |
| 3° GS | RW29 | 111.15 | 18.00mi |
Nearby Points of Interest:
Moulin de Caupian
-Maison carrée d'Arlac
-Centre hospitalier Charles Perrens
-Marbotin mansion
-poterie de Gradignan
-Château du Prince Noir
-Hôtel Frugès
-Hôtel de Poissac
-Hôtel de Ragueneau
-Château Peixotto
-Hôtel de Basquiat
-Hôtel Saint-Marc
-Palais de justice de Bordeaux
-Fort du Hâ
-Hôtel de Ruat
-Hôtel du 55 cours Georges Clemenceau (Bordeaux)
-Hôtel Pichon-Longueville
-couvent des Annonciades
-église Saint-Projet de Bordeaux
-Monument aux Girondins
-Hôtel Bonnaffé
-Mairerie
-Hôtel Baour
-Hôtel Piganeau
-Hôtel Journu

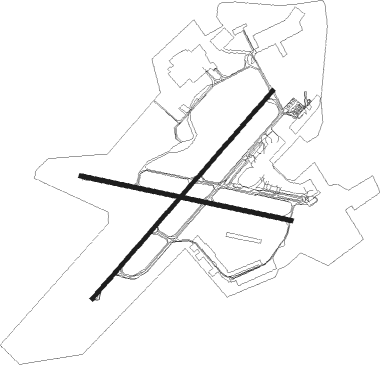

Runway info
Runway 05 / 23  | ||
| length | 3101m (10174ft) | |
| bearing | 55° / 235° | |
| width | 45m (148ft) | |
| surface | asphalt | |
| blast zone | 255m (837ft) / 255m (837ft) | |
| Runway 11 / 29 | ||
| length | 2416m (7927ft) | |
| bearing | 102° / 282° | |
| width | 45m (148ft) | |
| surface | asphalt | |
| blast zone | 255m (837ft) / 255m (837ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| BMC | BORDEAUX MERIGNAC VOR/DME | 1.2 | 245° | 113.75 |
| BD | BORDEAUX NDB | 8.1 | 54° | 393 |
| BE | BORDEAUX NDB | 12.8 | 84° | 318 |
| NB | BORDEAUX NDB | 19.5 | 25° | 361 |
| CAA | CAZAUX NDB | 24.9 | 236° | 382 |
| SAU | SAUVETERRE DE GUYENNE VOR | 25.1 | 107° | 116.80 |
| CAA | CAZAUX TACAN | 26.3 | 235° | 110.80 |
| BRS | BISCARROSSE NDB | 33.8 | 222° | 358 |
| RY | ROYAN NDB | 47.2 | 348° | 427 |
| CNA | COGNAC CHATEAUBERNARD VOR/DME | 51.9 | 25° | 114.65 |
| CGC | COGNAC CHATEAUBERNARD TACAN | 52 | 25° | 116.20 |
| BGC | BERGERAC NDB | 56 | 91° | 374 |
| LGH | MARSAN (MONT-DE-MARSAN) VOR/DME | 56.3 | 168° | 111.65 |
| MDM | MARSAN (MONT-DE-MARSAN) TACAN | 56.3 | 168° | 108.70 |
| OC | COGNAC NDB | 58.7 | 31° | 346 |
| AGO | ANGOULEME NDB | 70.7 | 52° | 404 |
| PX | PERIGUEUX NDB | 71.1 | 78° | 389 |
| AG | AGEN NDB | 71.7 | 117° | 400 |
Departure and arrival routes
| Transition altitude | 5000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW05 | |||
| CNA5Q, CNA5B | 52mi | 25° | |
| VAVI5Z, VAVI5Q, VAVI5B | 34mi | 180° | |
| ROYA5Z, ROYA5Q, ROYA5B | 52mi | 338° | |
| RW11 | |||
| CNA5E | 52mi | 25° | |
| VAVI5E | 34mi | 180° | |
| ROYA5E | 52mi | 338° | |
| RW23 | |||
| CNA5A, CNA5P | 52mi | 25° | |
| VAVI5P, VAVI5A | 34mi | 180° | |
| ROYA5P, ROYA5A | 52mi | 338° | |
| RW29 | |||
| CNA5R, CNA5W | 52mi | 25° | |
| VAVI5R, VAVI5W | 34mi | 180° | |
| ROYA5R, ROYA5W | 52mi | 338° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| ROYA9L, ROYA9K | 51.7 | 158° | |
| CNA9K, CNA9L | 51.9 | 205° | |
| LMG9K, LMG9L | 93.4 | 240° | |
| VELI9L, VELI9K | 37.2 | 261° | |
| BGC9K, BGC9L | 56.0 | 271° | |
| MIRB9L, MIRB9K | 44.1 | 276° | |
| VAVI9K, VAVI9L | 33.6 | 360° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW05-V | SOGBO (106°) | SOGBO 5000ft BD01V (4mi, 198°) BD02V (4mi, 112°) 1470ft |
| RNAV | BD02V 1470ft LFBD (5mi, 56°) 209ft BD050 (1mi, 49°) ETPAR (22mi, 332°) 4000ft ETPAR (turn) 4000ft | |
| RW05 | DIRAX (320°) | DIRAX BD054 (11mi, 294°) 5000ft BD052 (5mi, 275°) 3000ft D135B (3mi, 306°) 3000ft IBD05 (2mi, 306°) 3000ft |
| RW05 | ETPAR (155°) | ETPAR BD055 (17mi, 179°) 5000ft BD053 (6mi, 233°) 3000ft BD051 (3mi, 196°) 3000ft D317B (4mi, 128°) 3000ft IBD05 (2mi, 128°) 3000ft |
| RW05 | LIBRU (264°) | LIBRU BD058 (7mi, 272°) BD056 (16mi, 233°) BD054 (4mi, 233°) 5000ft BD052 (5mi, 275°) 3000ft D135B (3mi, 306°) 3000ft IBD05 (2mi, 306°) 3000ft |
| RW05 | VAGN1 (359°) | VAGNA BD057 (11mi, 275°) BD055 (17mi, 233°) 5000ft BD053 (6mi, 233°) 3000ft BD051 (3mi, 196°) 3000ft D317B (4mi, 128°) 3000ft IBD05 (2mi, 128°) 3000ft |
| RW05 | VAGN2 (359°) | VAGNA BD058 (12mi, 186°) BD056 (16mi, 233°) BD054 (4mi, 233°) 5000ft BD052 (5mi, 275°) 3000ft D135B (3mi, 306°) 3000ft IBD05 (2mi, 306°) 3000ft |
| RNAV | IBD05 2000ft FBD05 (3mi, 55°) 2000ft LFBD (7mi, 56°) 209ft BD050 (1mi, 49°) 4000ft ETPAR (22mi, 332°) 4000ft ETPAR (turn) 4000ft | |
| RW11 | DIRAX (320°) | DIRAX BD113 (22mi, 359°) 4000ft BD111 (19mi, 275°) 3000ft IBD11 (5mi, 202°) 2000ft |
| RW11 | ETPAR (155°) | ETPAR BD111 (15mi, 189°) 3000ft IBD11 (5mi, 202°) 2000ft |
| RW11 | LIBRU (264°) | LIBRU BD113 (12mi, 275°) 4000ft BD111 (19mi, 275°) 3000ft IBD11 (5mi, 202°) 2000ft |
| RW11 | VAGNA (234°) | VAGNA BD111 (25mi, 255°) 3000ft IBD11 (5mi, 202°) 2000ft |
| RNAV | IBD11 2000ft FBD11 (4mi, 102°) 2000ft LFBD (6mi, 97°) 202ft BD110 (1mi, 142°) 3000ft BD112 (8mi, 197°) BD114 (12mi, 171°) 5000ft DIRAX (11mi, 76°) DIRAX (turn) 5000ft | |
| RW23 | DIRAX (320°) | DIRAX BD232 (21mi, 16°) IBD23 (8mi, 306°) 4000ft |
| RW23 | ETPAR (155°) | ETPAR BD231 (12mi, 115°) IBD23 (8mi, 126°) 4000ft |
| RW23 | LIBRU (264°) | LIBRU BD232 (7mi, 272°) IBD23 (8mi, 306°) 4000ft |
| RW23 | VAGNA (234°) | VAGNA IBD23 (9mi, 234°) 4000ft |
| RNAV | IBD23 3000ft FBD23 (4mi, 235°) 3000ft LFBD (9mi, 234°) 205ft BD230 (4mi, 237°) 4000ft ETPAR (25mi, 347°) 4000ft ETPAR (turn) 4000ft | |
| RW29 | DIRAX (320°) | DIRAX BD292 (7mi, 12°) IBD29 (6mi, 12°) 4000ft |
| RW29 | ETPAR (155°) | ETPAR BD291 (29mi, 125°) 6000ft IBD29 (6mi, 203°) 4000ft |
| RW29 | LIBRU (264°) | LIBRU IBD29 (12mi, 240°) 4000ft |
| RW29 | VAGNA (234°) | VAGNA BD291 (15mi, 188°) 6000ft IBD29 (6mi, 203°) 4000ft |
| RNAV | IBD29 3000ft FBD29 (4mi, 282°) 3000ft LFBD (9mi, 286°) 210ft BD290 (2mi, 266°) ETPAR (22mi, 342°) 4000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| BGC9K | LIBRU | VHF | left | 80 (260)° | 5000ft - 12000ft | DME 4.6mi | 220 |
| BGC9L | LIBRU | VHF | left | 80 (260)° | 5000ft - 12000ft | DME 4.6mi | 220 |
| CNA9K | VAGNA | VHF | left | 45 (225)° | 5000ft - 12000ft | DME 4.6mi | 220 |
| CNA9L | VAGNA | VHF | left | 45 (225)° | 5000ft - 12000ft | DME 4.6mi | 220 |
| LMG9K | VAGNA | VHF | left | 45 (225)° | 5000ft - 12000ft | DME 4.6mi | 220 |
| LMG9L | VAGNA | VHF | left | 45 (225)° | 5000ft - 12000ft | DME 4.6mi | 220 |
| MIRB9K | LIBRU | VHF | left | 80 (260)° | 5000ft - 12000ft | DME 4.6mi | 220 |
| MIRB9L | LIBRU | VHF | left | 80 (260)° | 5000ft - 12000ft | DME 4.6mi | 220 |
| ROYA9K | ETPAR | VHF | left | 345 (165)° | 5000ft - 12000ft | DME 4.6mi | 220 |
| ROYA9L | ETPAR | VHF | left | 345 (165)° | 5000ft - 12000ft | DME 4.6mi | 220 |
| VAVI9K | DIRAX | VHF | left | 145 (325)° | 5000ft - 9000ft | DME 4.2mi | 220 |
| VAVI9L | DIRAX | VHF | left | 145 (325)° | 5000ft - 9000ft | DME 4.2mi | 220 |
| VELI9K | LIBRU | VHF | left | 80 (260)° | 5000ft - 12000ft | DME 4.6mi | 220 |
| VELI9L | LIBRU | VHF | left | 80 (260)° | 5000ft - 12000ft | DME 4.6mi | 220 |
| *) magnetic outbound (inbound) holding course | |||||||
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
