Airports for X-Plane

Toulouse/francazal - Francazal Ab

Airport details

CountryFrance
StateOccitania
RegionLF
AirspaceBordeaux Ctr
MunicipalityCugnaux
Elevation535ft (163m)
TimezoneGMT +1
Coordinates43.54403, 1.36337
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFBF
IATA coden/a
FAA coden/a

Communication

Francazal AB LFBF INFO118.800
Francazal AB FRANCAZAL Tower118.400
Francazal AB FRANCAZAL Tower122.100
Francazal AB FRANCAZAL Approach118.800
Nearby Points of Interest:
Château de Saint-Simon
-
Centre hospitalier Gérard Marchant
-
pont Saint-Michel
-
Prison Saint-Michel
-
Hôpital de La Grave
-
Palais de Justice de Toulouse
-
Couvent Notre-Dame-de-la-Visitation
-
Canal du Midi
-
Pigeonnier de la comtesse
-
Manufacture des Tabacs
-
Ecluse Saint-Pierre
-
hôtel d'Olmières
-
Hôtel des Ysalguier
-
Maison Pierre Delfau
-
Hôtel de Pins et hôtel Antonin
-
Hôtel Dumay
-
Hôtel de Bonnefoy
-
Hôtel de Castellane, ancien hôtel de Saint-Jory
-
dry docks of Toulouse
-
Préfecture de Haute-Garonne
-
Notre-Dame du Rempart
-
Tour Maurand
-
Hôtel Dubarry
-
monument aux combattants de la Haute-Garonne
-
Bibliothèques de Toulouse

Runway info

Runway 11 / 29
 length1797m (5896ft)
 bearing109° / 289°
 width45m (148ft)
 surfaceasphalt

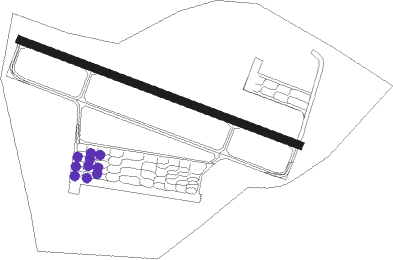

Airport layout - parking location GA


Parking locations

 Cargo  GA  Military

Nearby beacons

codeidentifierdistbearingfrequency
TSTOULOUSE NDB5.8107°423
TLFFRANCAZAL NDB7.3289°332
TOUTOULOUSE BLAGNAC VOR/DME8.5339°117.70
MUTMURET NDB8.8251°350
TOETOULOUSE NDB14.2101°415
TWTOULOUSE NDB14.7268°406
TLBTOULOUSE NDB24.411°368
PMRPAMIERS NDB28.9153°384
AGNAGEN VOR/DME29.6305°114.80
GAIGAILLAC VOR31.748°115.80
LMTAUCH NDB34.6283°420
CVUCASTRES-MAZAMET NDB37.184°356
ABALBI NDB37.662°323
CSCARCASSONNE SALVAZA NDB41.6111°345
AGAGEN NDB47.1311°400
CLCAHORS NDB50.54°348

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW11
 TW1A205mi60°
RW29
 TW1B205mi60°

STAR starting pointsdistanceinbound heading
RW11
 ASPE1S36.735°
 TOPT1S81.664°
 TBO1S54.680°
 LMB1S60.387°
 SECH1S, AGN1S29.6125°
 ESIS1S81.0183°
 AULO1S51.6199°
 NARA1S48.1207°
 MEN1S100.5239°
 AFRI1S66.8261°
 ADIM1S23.9275°
 ORBI1S53.7287°
RW29
 ASPE1N36.735°
 TOPT1N81.664°
 TBO1N54.680°
 LMB1N60.387°
 SECH1N, AGN1N29.6125°
 ESIS1N81.0183°
 AULO1N51.6199°
 NARA1N48.1207°
 MEN1N100.5239°
 AFRI1N66.8261°
 ADIM1N23.9275°
 ORBI1N53.7287°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11IBF11 (109°)IBF11 3000ft
RW11SURAS (108°)SURAS 4000ft
IBF11 (3mi, 105°) 3000ft
 RNAVIBF11 3000ft
FBF11 (3mi, 108°) 3000ft
LFBF (8mi, 110°) 584ft
BF110 (2mi, 104°)
BF112 (4mi, 270°) 2000ft
IBF11 (9mi, 299°) 3000ft
RW29SULIT (35°)SULIT 4000ft
BF302 (10mi, 87°) 4000ft
BF304 (4mi, 87°) 3000ft
IBF29 (4mi, 32°) 3000ft
 RNAVIBF29 3000ft
FBF29 (4mi, 289°) 3000ft
LFBF (8mi, 288°) 583ft
BF310 (7mi, 290°)
SURAS (7mi, 287°)
TW (7mi, 199°)
SULIT (13mi, 123°) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADIM1NADIMOVHFright116 (296)°4500ft - 14000ft1.0min timed220
ADIM1SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
AFRI1NADIMOVHFright116 (296)°4500ft - 14000ft1.0min timed220
AFRI1SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
AGN1NSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
AGN1SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
ASPE1NSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
ASPE1SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
AULO1SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
ESIS1SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
LMB1NSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
LMB1SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
MEN1SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
NARA1SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
ORBI1NADIMOVHFright116 (296)°4500ft - 14000ft1.0min timed220
ORBI1SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
SECH1NSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
SECH1SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
TBO1NSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
TBO1SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
TOPT1NSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
TOPT1SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
*) magnetic outbound (inbound) holding course
