Airports for X-Plane

Toulouse/blagnac - Toulouse Blagnac

Airport details

CountryFrance
StateOccitania
RegionLF
AirspaceBordeaux Ctr
MunicipalityBlagnac
Elevation499ft (152m)
TimezoneGMT +1
Coordinates43.62841, 1.37223
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFBO
IATA codeTLS
FAA coden/a

Communication

Toulouse Blagnac ATIS123.130
Toulouse Blagnac Preflight121.705
Toulouse Blagnac Ground121.900
Toulouse Blagnac Tower118.100
Toulouse Blagnac Approach121.105
Toulouse Blagnac Departure121.105

Approach frequencies

ILS-cat-IIIRW14R110.718.00mi
ILS-cat-IRW32L109.318.00mi
ILS-cat-IRW32R108.3518.00mi
ILS-cat-IRW14L108.918.00mi
3° GSRW32L109.318.00mi
3° GSRW14R110.718.00mi
3° GSRW32R108.3518.00mi
3° GSRW14L108.918.00mi

Runway info

Runway 14L / 32R
 length3032m (9948ft)
 bearing134° / 314°
 width50m (164ft)
 surfaceasphalt
Runway 14R / 32L
 length3502m (11490ft)
 bearing134° / 314°
 width50m (164ft)
 surfaceasphalt
 blast zone71m (233ft) / 58m (190ft)

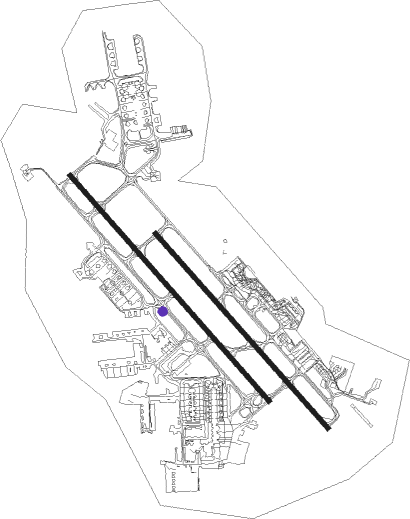

Airport layout - taxiway location W50


Taxiway locations

 M10  M11  M2  M4  M8  N1  N2  N4
 N6  N8  P10  P100  P101  P20  P40  P50
 P55  P60  P65  P70  P90  S10  S11  S2
 S3  S30  S4  S6  S8  T10  T22  T50
 T55  T60  T65  W100  W50  W60
Parking locations

 A10  A12  A13  A15  A16  B10  B12  B13
 B14  B20  B22  B23  B24  B25  C1  C2
 C3  C4  D10  D20  D21  D22  D23  E10
 E20  E30  E40  E42  E50  E54  E60  E62
 F10  F20  F30  F40  F60  F70  G1  G2
 G20  G21  G22  G3  G4  G5  G6  G7
 G8  G9  K10  K20  K30  M1  M2  U10
 U12  U20  U22  U30  U32  U40  U42  V10

Nearby beacons

codeidentifierdistbearingfrequency
TOUTOULOUSE BLAGNAC VOR/DME4.1310°117.70
TLFFRANCAZAL NDB7.2259°332
TSTOULOUSE NDB8.8137°423
MUTMURET NDB12.1232°350
TOETOULOUSE NDB16116°415
TWTOULOUSE NDB16.1254°406
TLBTOULOUSE NDB19.312°368
AGNAGEN VOR/DME26.6297°114.80
GAIGAILLAC VOR27.654°115.80
PMRPAMIERS NDB33.6157°384
LMTAUCH NDB33.8277°420
ABALBI NDB34.568°323
CVUCASTRES-MAZAMET NDB36.390°356
AGAGEN NDB43.5307°400
CSCARCASSONNE SALVAZA NDB43.8116°345
CLCAHORS NDB45.43°348

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW14 (ALL)
 GAI5A, GAI5H28mi54°
 DEPE5A, DEPE5H45mi58°
 MEN5H, MEN5A97mi61°
 AMOL5A, AMOL5H54mi81°
 FINO5A, FINO5H29mi82°
 AFRI5H, AFRI5A66mi84°
 PPG5A84mi120°
 PUMA5A81mi153°
 ANET5A67mi221°
 TIVL5A93mi246°
 LATE5A100mi250°
 TBO5A56mi256°
 LMB5A61mi263°
 LACO5H, LACO5A45mi325°
 FIST5H, FIST5A50mi350°
RW32 (ALL)
 GAI5B28mi54°
 DEPE5B45mi58°
 MEN5B97mi61°
 AMOL5B54mi81°
 FINO5B29mi82°
 AFRI5B66mi84°
 PPG5B84mi120°
 PUMA5B81mi153°
 ANET5B67mi221°
 TIVL5B93mi246°
 LATE5B100mi250°
 TBO5B56mi256°
 LMB5B61mi263°
 AGN5P27mi297°
 LACO5Q, LACO5B45mi325°
 FIST5Q, FIST5B50mi350°
RW32L
 FIST5P50mi350°
RW32R
 FIST5P50mi350°

STAR starting pointsdistanceinbound heading
ALL
 AFRI6L65.5264°
RW14 (ALL)
 ASPE6S41.432°
 TOPT6S84.862°
 TBO6S56.376°
 LMB6S61.383°
 SECH6S, AGN6S26.6117°
 ESIS6N75.9183°
 AULO6N46.5200°
 NARA6A, NARA6N43.2209°
 MEN6N97.0241°
RW32 (ALL)
 ASPE6T41.432°
 TOPT6T84.862°
 TBO6T56.376°
 LMB6T61.383°
 AGN6T, SECH6T26.6117°
 ESIS6L75.9183°
 AULO6L46.5200°
 NARA6I, NARA6L43.2209°
 MEN6L97.0241°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW14LABLIS (194°)ABLIS
IO14L (21mi, 225°) 3000ft
RW14LADIMO (284°)ADIMO
BO506 (25mi, 300°)
BO509 (12mi, 299°)
IO14L (5mi, 214°) 3000ft
RW14LAGN (117°)AGN
BO508 (10mi, 94°)
IO14L (6mi, 132°) 3000ft
RW14LLORTO (91°)LORTO
BO507 (9mi, 31°)
IO14L (5mi, 82°) 3000ft
RW14LSURAS (93°)SURAS
BO507 (8mi, 7°)
IO14L (5mi, 82°) 3000ft
 RNAVIO14L 3000ft
FO14L (4mi, 134°) 3000ft
LFBO (9mi, 133°) 539ft
BO512 (5mi, 138°)
BO513 (4mi, 83°)
BO514 (6mi, 4°)
BO515 (11mi, 323°) 4000ft
NETRO (15mi, 36°)
RW14RABLIS (194°)ABLIS
IO14R (21mi, 227°) 3000ft
RW14RADIMO (284°)ADIMO
BO506 (25mi, 300°)
BO509 (12mi, 299°)
IO14R (5mi, 222°) 3000ft
RW14RAGN (117°)AGN
BO508 (10mi, 94°)
IO14R (6mi, 134°) 3000ft
RW14RLORTO (91°)LORTO
BO507 (9mi, 31°)
IO14R (5mi, 77°) 3000ft
RW14RSURAS (93°)SURAS
BO507 (8mi, 7°)
IO14R (5mi, 77°) 3000ft
 RNAVIO14R 3000ft
FO14R (4mi, 134°) 3000ft
LFBO (9mi, 132°) 544ft
BO512 (5mi, 138°)
BO513 (4mi, 83°)
BO514 (6mi, 4°)
BO515 (11mi, 323°) 4000ft
NETRO (15mi, 36°)
RW32LADIMO (284°)ADIMO
BO603 (13mi, 268°) 4000ft
IO32L (4mi, 261°) 3000ft
RW32LAGENO (35°)AGENO
BO602 (10mi, 115°) 5000ft
IO32L (5mi, 36°) 3000ft
RW32LLAVKU (246°)LAVKU
BO603 (16mi, 189°) 4000ft
IO32L (4mi, 261°) 3000ft
RW32LOGRIL (22°)OGRIL
BO602 (12mi, 67°) 5000ft
IO32L (5mi, 36°) 3000ft
RW32LSULIT (26°)SULIT
BO602 (10mi, 87°) 5000ft
IO32L (5mi, 36°) 3000ft
 RNAVIO32L 3000ft
FO32L (4mi, 314°) 3000ft
LFBO (8mi, 316°) 545ft
TOU (4mi, 310°)
BO614 (10mi, 296°) 4000ft
BO616 (10mi, 256°) 5000ft
BO618 (14mi, 162°)
SULIT (14mi, 112°)
RW32RADIMO (284°)ADIMO
BO603 (13mi, 268°) 4000ft
IO32R (3mi, 258°) 3000ft
RW32RAGENO (35°)AGENO
BO602 (10mi, 115°) 5000ft
IO32R (5mi, 42°) 3000ft
RW32RLAVKU (246°)LAVKU
BO603 (16mi, 189°) 4000ft
IO32R (3mi, 258°) 3000ft
RW32ROGRIL (22°)OGRIL
BO602 (12mi, 67°) 5000ft
IO32R (5mi, 42°) 3000ft
RW32RSULIT (26°)SULIT
BO602 (10mi, 87°) 5000ft
IO32R (5mi, 42°) 3000ft
 RNAVIO32R 3000ft
FO32R (4mi, 314°) 3000ft
LFBO (9mi, 315°) 547ft
TOU (4mi, 310°)
BO614 (10mi, 296°) 4000ft
BO616 (10mi, 256°) 5000ft
BO618 (14mi, 162°)
SULIT (14mi, 112°)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AFRI6LADIMOVHFright116 (296)°4500ft - 14000ft1.0min timed220
AGN6SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
AGN6TSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
ASPE6SSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
ASPE6SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
ASPE6TSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
AULO6LADIMOVHFright116 (296)°4500ft - 14000ft1.0min timed220
AULO6LNETROVHFright26 (206)°5000ft - 14000ftDME 6.0mi220
AULO6NNETROVHFright26 (206)°5000ft - 14000ftDME 6.0mi220
ESIS6LADIMOVHFright116 (296)°4500ft - 14000ft1.0min timed220
ESIS6LNETROVHFright26 (206)°5000ft - 14000ftDME 6.0mi220
ESIS6NNETROVHFright26 (206)°5000ft - 14000ftDME 6.0mi220
LMB6TSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
MEN6LADIMOVHFright116 (296)°4500ft - 14000ft1.0min timed220
MEN6LNETROVHFright26 (206)°5000ft - 14000ftDME 6.0mi220
MEN6NNETROVHFright26 (206)°5000ft - 14000ftDME 6.0mi220
NARA6LADIMOVHFright116 (296)°4500ft - 14000ft1.0min timed220
NARA6LNETROVHFright26 (206)°5000ft - 14000ftDME 6.0mi220
NARA6NNETROVHFright26 (206)°5000ft - 14000ftDME 6.0mi220
ORBI6LADIMOVHFright116 (296)°4500ft - 14000ft1.0min timed220
SECH6SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
SECH6TSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
TBO6TSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
TOPT6SSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
TOPT6SSURASVHFright257 (77)°5000ft - 14000ftDME 5.0mi220
TOPT6TSULITVHFright187 (7)°5000ft - 14000ftDME 5.0mi220
*) magnetic outbound (inbound) holding course
