Country | France |
State | Nouvelle-Aquitaine |
Region | LF |
Airspace | Bordeaux Ctr |
Municipality | Biarritz |
Elevation | 245ft (75m) |
Timezone | GMT +1 |
Coordinates | 43.46613, -1.53550 |
Magnetic var | |
Type | land |
Available since | X-Plane v10.40 |
ICAO code | LFBZ |
IATA code | BIQ |
FAA code | n/a |
Biarritz Pays Basque BIARRITZ ATIS | 128.225 |
Biarritz Pays Basque BIARRITZ Ground Control | 121.950 |
Biarritz Pays Basque BIARRITZ Tower | 118.700 |
Biarritz Pays Basque BIARRITZ Approach | 125.600 |
ILS-cat-I | RW27 | 111.35 | 18.00mi |
3° GS | RW27 | 111.35 | 18.00mi |

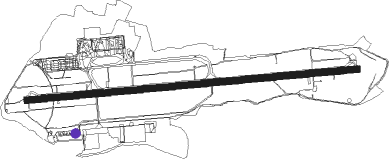

Runway 09 / 27 | ||
length | 2250m (7382ft) | |
bearing | 89° / 269° | |
width | 45m (148ft) | |
surface | asphalt | |
displ threshold | 207m (679ft) / 0m (0ft) |
code | identifier | dist | bearing | frequency |
---|---|---|---|---|
BTZ | BIARRITZ PAYS BASQUE VOR/DME | 1 | 89° | 114.15 |
BZ | BIARRITZ PAYS BASQUE NDB | 5.7 | 88° | 341 |
HIG | SAN SEBASTIAN NDB | 12.3 | 253° | 328 |
SSN | SAN SEBASTIAN VOR/DME | 15.8 | 242° | 117.90 |
DX | DAX SEYRESSE NDB | 26 | 65° | 334 |
PP | PAMPLONA NDB | 36.8 | 197° | 354 |
PPN | PAMPLONA VOR/DME | 44.5 | 193° | 112.30 |
PAM | PAMPLONA NDB | 45.3 | 188° | 422 |
PAP | PAMPLONA SOUTH VOR/DME | 47 | 189° | 113.55 |
BRS | BISCARROSSE NDB | 56.8 | 24° | 358 |
Transition altitude | 5000ft |
SID end points | distance | outbound heading | |
---|---|---|---|
RW09 | |||
VAVI1E, VAVI1D, SOST1D | 61mi | 46° | |
SOVO1D | 28mi | 97° | |
BIDA1E | 18mi | 97° | |
DONO1E, DONO1D | 11mi | 166° | |
SSN1D, SSN1E | 16mi | 242° | |
RW27 | |||
VAVI1F, VAVI1W | 61mi | 46° | |
SOVO1F | 28mi | 97° | |
BIDA1W | 18mi | 97° | |
DONO1W, DONO1F | 11mi | 166° | |
SSN1F, SSN1W | 16mi | 242° |
STAR starting points | distance | inbound heading | |
---|---|---|---|
RW09 | |||
SSN9R | 15.8 | 62° | |
MAGE9M, MAGE9R | 22.4 | 230° | |
BIDA9M, BIDA9R | 17.6 | 277° | |
DONO9M, DONO9R | 11.1 | 346° | |
RW27 | |||
SSN9S | 15.8 | 62° | |
MAGE9L, MAGE9V, MAGE9S, MAGE9B | 22.4 | 230° | |
BIDA9B, BIDA9L, BIDA9V | 17.6 | 277° | |
BIDA9S | 28.1 | 277° | |
DONO9V, DONO9S, DONO9B | 11.1 | 346° |
runway | airway (heading) | route (dist, bearing) |
---|---|---|
RW09 | BZ092 (110°) | BZ092 IBZ09 (5mi, 179°) 2500ft |
RW09 | BZ507 (70°) | BZ507 IBZ09 (5mi, 0°) 2500ft |
RW09 | OSGOT (164°) | OSGOT BZ092 (8mi, 242°) IBZ09 (5mi, 179°) 2500ft |
RNAV | IBZ09 2000ft FBZ09 (3mi, 89°) 2000ft LFBZ (5mi, 90°) 291ft BZ090 (3mi, 88°) 4000ft OSGOT (11mi, 323°) OSGOT (turn) | |
RW27 | BIDAC (277°) | BIDAC IBZ27 (6mi, 293°) 2500ft |
RW27 | BZ (121°) | BZ 3500ft BZ275 (7mi, 60°) BZ276 (7mi, 89°) IBZ27 (5mi, 193°) 2500ft |
RW27 | BZ274 (245°) | BZ274 BZ276 (4mi, 193°) IBZ27 (5mi, 193°) 2500ft |
RW27 | BZ501 (284°) | BZ501 IBZ27 (5mi, 0°) 2500ft |
RNAV | IBZ27 2500ft FBZ27 (4mi, 270°) 2500ft LFBZ (8mi, 269°) 268ft BZ270 (3mi, 271°) 4000ft BZ272 (11mi, 359°) 4000ft BZ274 (16mi, 97°) 4000ft |
STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
---|---|---|---|---|---|---|---|
BIDA9B | BZ | FIX | right | 89 (269)° | 3000ft - 7000ft | 1.0min timed | 210 |
BIDA9L | BZ | FIX | right | 89 (269)° | 3000ft - 7000ft | 1.0min timed | 210 |
BIDA9M | OSGOT | VHF | right | 341 (161)° | 3000ft - 7000ft | DME 3.3mi | 200 |
BIDA9S | BZ | FIX | right | 89 (269)° | 3000ft - 7000ft | 1.0min timed | 210 |
BIDA9V | UREKU | VHF | right | 84 (264)° | 3000ft - 7000ft | DME 5.0mi | 200 |
DONO9B | BZ | FIX | right | 89 (269)° | 3000ft - 7000ft | 1.0min timed | 210 |
DONO9M | OSGOT | VHF | right | 341 (161)° | 3000ft - 7000ft | DME 3.3mi | 200 |
DONO9S | BZ | FIX | right | 89 (269)° | 3000ft - 7000ft | 1.0min timed | 210 |
DONO9V | UREKU | VHF | right | 84 (264)° | 3000ft - 7000ft | DME 5.0mi | 200 |
MAGE9B | BZ | FIX | right | 89 (269)° | 3000ft - 7000ft | 1.0min timed | 210 |
MAGE9L | BZ | FIX | right | 89 (269)° | 3000ft - 7000ft | 1.0min timed | 210 |
MAGE9M | OSGOT | VHF | right | 341 (161)° | 3000ft - 7000ft | DME 3.3mi | 200 |
MAGE9R | OSGOT | VHF | right | 341 (161)° | 3000ft - 7000ft | DME 3.3mi | 200 |
MAGE9S | BZ | FIX | right | 89 (269)° | 3000ft - 7000ft | 1.0min timed | 210 |
MAGE9V | UREKU | VHF | right | 84 (264)° | 3000ft - 7000ft | DME 5.0mi | 200 |
SSN9S | BZ | FIX | right | 89 (269)° | 3000ft - 7000ft | 1.0min timed | 210 |
*) magnetic outbound (inbound) holding course |
