Airports for X-Plane

Ajaccio/napoléon Bonaparte - Napoleon Bonaparte

Airport details

CountryFrance
StateCorsica
RegionLF
AirspaceMarseille Ctr
MunicipalityAjaccio
Elevation19ft (6m)
TimezoneGMT +1
Coordinates41.92389, 8.80250
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFKJ
IATA codeAJA
FAA coden/a

Communication

Napoleon Bonaparte AJACCIO ATIS126.925
Napoleon Bonaparte AJACCIO ApproachROACH121.050
Napoleon Bonaparte AJACCIO GROUND121.700
Napoleon Bonaparte AJACCIO TOWER118.075
Napoleon Bonaparte AJACCIO ApproachROACH128.800
Napoleon Bonaparte AJACCIO DepartureARTURE118.075

Approach frequencies

ILS-cat-IRW02110.318.00mi
3° GSRW02110.318.00mi
Nearby Points of Interest:
Bibliothèque Fesch
-
Canal de la Gravona
-
Torra d'Ancone
-
Torra di Capigliolu
-
U Frate è a Sora
-
Église San Giovanni de Grossa
-
Gulf of Porto: Calanche of Piana, Gulf of Girolata, Scandola Reserve
-
église San Giovanni Battista de Corte

Runway info

Runway 02 / 20
 length2409m (7904ft)
 bearing32° / 212°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 227m (745ft)
 blast zone50m (164ft) / 70m (230ft)

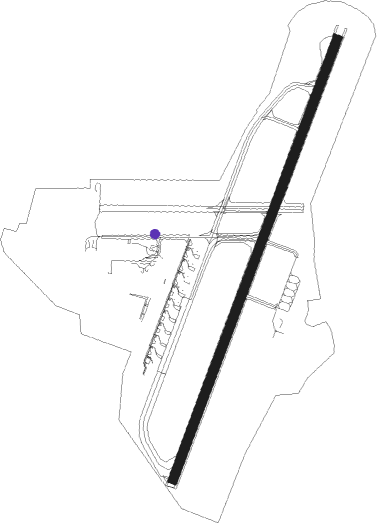

Airport layout - taxiway location G2


Taxiway locations

 A  B  C  D  E  F  G1  G2
 H
Parking locations

 1  10  2  3  4  5  6  7
 8  9  Air  Centre  GA  Helo  J1  J2
 J3  J4  J5  J6  L'aeroclub  Securite

Nearby beacons

codeidentifierdistbearingfrequency
RBAJACCIO NDB0.5189°365
CTAJACCIO NDB8.4211°387
ISAJACCIO NDB8.6262°341
AJOAJACCIO VOR/DME9.2190°114.80
SZASOLENZARA NDB26.489°349
SZASOLENZARA TACAN26.689°114
FAFIGARI NDB27.9126°325
FGIFIGARI VOR/DME28.2146°116.70
CVCALVI SAINTE CATHERINE NDB39.20°375
BPBASTIA NDB44.456°369
BTABASTIA PORETTA VOR/DME49.146°114.15

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW20
 TORT5H, TORT6P88mi6°
 BTA5H, BTA6P49mi46°
 CORS6P, CORS5H35mi179°
 NEGA5H, NEGA6P52mi241°
 TINO6P, TINO5H162mi283°
 VARE5H, VARE6P43mi295°
 CV6P, CV5H201mi297°
 LONS6N, LONS5H62mi318°
 MERL6P83mi319°

STAR starting pointsdistanceinbound heading
ALL
 POUL1S36.921°
 NEGA1S52.161°
 RUBA1S103.1101°
 VARE1S43.4115°
 LONS1S61.7138°
 TORT1S88.2186°
 BTA1S49.1226°
 ASKA1S43.1278°
 TERE1S36.9338°
RW20
 POUL2N36.921°
 NEGA2N52.161°
 RUBA2N103.1101°
 VARE2N, VARE1R43.4115°
 LONS2N61.7138°
 TORT2N88.2186°
 BTA2N49.1226°
 ASKA2N43.1278°
 TERE2N36.9338°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02-YHORRO (41°)HORRO
IKJ02 (5mi, 62°) 3000ft
RW02-YIS (82°)IS
KJ414 (12mi, 199°)
IKJ02 (6mi, 85°) 3000ft
 RNAVIKJ02 3000ft
FJ02Y (4mi, 32°) 3000ft
MJ02Y (5mi, 32°) 1436ft
KJ412 (8mi, 255°) 3000ft
KJ414 (6mi, 199°) 3000ft
IKJ02 (6mi, 85°) 3000ft
RW02-ZHORRO (41°)HORRO
IKJ02 (5mi, 62°) 3000ft
RW02-ZIS (82°)IS
KJ414 (12mi, 199°)
IKJ02 (6mi, 85°) 3000ft
 RNAVIKJ02 3000ft
FJ02Z (4mi, 32°) 3000ft
KJ400 (6mi, 32°) 900ft
KJ412 (10mi, 249°)
KJ414 (6mi, 199°) 3000ft
IKJ02 (6mi, 85°) 3000ft
RW20KJ600 (103°)KJ600
IKJ20 (5mi, 76°) 3000ft
RW20KJ601 (127°)KJ601 6000ft
IKJ20 (12mi, 132°) 3000ft
 RNAVIKJ20 3000ft
FKJ20 (3mi, 97°) 3000ft
KJ602 (3mi, 97°)
KJ603 (2mi, 145°)
LFKJ (2mi, 212°) 66ft
KJ604 (turn)
HORRO (18mi, 222°) 3000ft
HORRO (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASKA1SHORROVHFright232 (52)°3000ft - 10000ftDME 5.0mi220
ASKA2NISFIXright313 (133)°4000ft - 12000ft1.0min timed220
BTA1SHORROVHFright232 (52)°3000ft - 10000ftDME 5.0mi220
BTA2NISFIXright313 (133)°4000ft - 12000ft1.0min timed220
LONS1SHORROVHFright232 (52)°3000ft - 10000ftDME 5.0mi220
LONS2NISFIXright313 (133)°4000ft - 12000ft1.0min timed220
NEGA1SHORROVHFright232 (52)°3000ft - 10000ftDME 5.0mi220
NEGA2NISFIXright313 (133)°4000ft - 12000ft1.0min timed220
POUL1SHORROVHFright232 (52)°3000ft - 10000ftDME 5.0mi220
POUL2NISFIXright313 (133)°4000ft - 12000ft1.0min timed220
RUBA1SHORROVHFright232 (52)°3000ft - 10000ftDME 5.0mi220
RUBA2NISFIXright313 (133)°4000ft - 12000ft1.0min timed220
TERE1SHORROVHFright232 (52)°3000ft - 10000ftDME 5.0mi220
TERE2NISFIXright313 (133)°4000ft - 12000ft1.0min timed220
TORT1SHORROVHFright232 (52)°3000ft - 10000ftDME 5.0mi220
TORT2NISFIXright313 (133)°4000ft - 12000ft1.0min timed220
VARE1SHORROVHFright232 (52)°3000ft - 10000ftDME 5.0mi220
VARE2NISFIXright313 (133)°4000ft - 12000ft1.0min timed220
*) magnetic outbound (inbound) holding course
