Airports for X-Plane

Lyon - Lyon Saint Exupery

Airport details

CountryFrance
StateAuvergne-Rhône-Alpes
RegionLF
AirspaceMarseille Ctr
MunicipalityColombier-Saugnieu
Elevation818ft (249m)
TimezoneGMT +1
Coordinates45.72564, 5.08111
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFLL
IATA codeLYS
FAA coden/a

Communication

Lyon Saint Exupery ATIS Freq126.175
Lyon Saint Exupery Clearance121.650
Lyon Saint Exupery Ground Freq121.825
Lyon Saint Exupery Tower Freq120.450
Lyon Saint Exupery Approach Freq136.075
Lyon Saint Exupery Departure120.225

Approach frequencies

ILS-cat-IIIRW35R111.518.00mi
ILS-cat-IIIRW35L110.7518.00mi
ILS-cat-IRW17L109.118.00mi
3° GSRW35R111.518.00mi
3° GSRW17L109.118.00mi
3° GSRW35L110.7518.00mi
Nearby Points of Interest:
Eglise Saint-Martin
-
Chaise du Seigneur
-
Boisement humide de La Boisse
-
hôpital Édouard-Herriot
-
monument à la gloire du service de santé militaire
-
Villeurbanne City Hall
-
Gratte-ciel
-
Château de Montplaisant
-
Montluc prison
-
Gare des Brotteaux
-
mur de terrasse antique
-
Palais de Flore
-
théâtre de l'Eldorado
-
Prefecture hotel of Rhône
-
Garage Citroën
-
Rhône's Pool
-
Hôtel du Gouverneur militaire de Lyon
-
9 quai Jean-Moulin
-
Chapelle de la Trinité
-
Hôtel de Lacroix-Laval
-
Hôtel de Sarron
-
Hôtel de Ville de Lyon
-
Condition des Soies
-
monument fontaine à Jean-Pierre Pléney
-
Château de Trept

Runway info

Runway 17R / 35L
 length4013m (13166ft)
 bearing173° / 353°
 width45m (148ft)
 surfaceconcrete
 displ threshold11m (36ft) / 19m (62ft)
Runway 17L / 35R
 length2691m (8829ft)
 bearing173° / 353°
 width45m (148ft)
 surfaceasphalt
 displ threshold17m (56ft) / 18m (59ft)

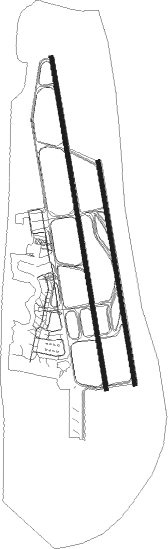

Airport layout


Parking locations

 A21  A22  A23  A24  A25  A26  A27  A28
 A29  A30  A31  A32  A33  A34  A35  A36
 B10  B12  B14  B16  B18  B61  B62  B63
 B71  B72  B73  B81  B82  B83  B91  B92
 B93  C19  C21  C22  C23  C41  C43  C61
 C63  C81  C82  C83  D21  D23  D41  D42
 D43  D61  D63  E11  E13  E15  E17  G11
 G12  G13  G14  G15  G16  J11  J13  J14
 J15  J19  J31  J33  J35  J37  J39  J41
 K52  K54  L11  L13  L15  L17  L19  L71
 L73  M11  M12  M13  M21  M22  M23  M31
 M32  M33  M41  M42  M43  N11  N12  N13
 N14  N21  N22  N23  N24  N31  N32  N33
 N34  N41  N42  N43  N44

Nearby beacons

codeidentifierdistbearingfrequency
LSELYON SAINT EXUPERY VOR/DME1.225°114.75
BRLYON-BRON NDB7.5219°388
VNEVIENNE REVENTIN VOR13.1229°108.20
LTPLA TOUR DU PIN VOR/DME20.6123°115.55
WSGRENOBLE NDB22169°291
EGGRENOBLE NDB25.4139°397
CBYCHAMBERY VOR/DME29.877°115.40
EBSAINT ETIENNE NDB33.8264°379
CHCHAMBERY NDB34.699°346
BOSAINT ETIENNE NDB35255°299
ATANNECY NDB40.182°384
PASPASSEIRY VOR/DME46.565°116.60
SNSAINT YAN NDB52.6301°430
VEVALENCE NDB52.9188°320
CCCHAMPFORGEUIL NDB60.6347°391

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW17 (ALL)
 MOKI2S43mi1°
 MABE2S38mi17°
 ASLE2S45mi89°
 BELU2S22mi96°
 GEML2S54mi97°
 RISO2S39mi102°
 ROMA2S38mi172°
 LUKU2S48mi173°
 EB2S139mi174°
 MTL2S71mi194°
 MURO2S38mi241°
 VERO2S49mi241°
 LERG2S63mi251°
 REPS2S36mi256°
 ETAB2S34mi264°
 MADO2S24mi270°
 BELE2S40mi274°
 BUSI2S37mi328°
 ALUR2S47mi351°
RW35 (ALL)
 MOKI2N43mi1°
 MABE2N38mi17°
 BELU2N22mi96°
 RISO2N39mi102°
 ROMA2N38mi172°
 EB2N139mi174°
 MURO2V, MURO2N38mi241°
 REPS2N36mi256°
 BELE2N40mi274°
 BUSI2N37mi328°
 ALUR2N47mi351°
RW35L
 ASLE2N45mi89°
 GEML2N54mi97°
 LUKU2N48mi173°
 MTL2N71mi194°
 VERO2N49mi241°
 LERG2N63mi251°
 ETAB2N34mi264°
 MADO2N24mi270°
RW35R
 ASLE2N45mi89°
 GEML2N54mi97°
 LUKU2N48mi173°
 MTL2N71mi194°
 VERO2N49mi241°
 LERG2N63mi251°
 ETAB2N34mi264°
 MADO2N24mi270°

STAR starting pointsdistanceinbound heading
RW17 (ALL)
 MTL5S71.414°
 MEZI5D, MEZI5S56.651°
 CFA5S79.292°
 TIS5S64.696°
 LABA5S74.4100°
 ARSO5S73.6104°
 MOU5S84.2124°
 MILP5S48.0234°
 AMVA5S43.1295°
 PINE5S47.3329°
RW35 (ALL)
 MTL5N71.414°
 MEZI5E, MEZI5N56.651°
 CFA5N79.292°
 TIS5N64.696°
 LABA5N74.4100°
 ARSO5N73.6104°
 MOU5N84.2124°
 MILP5N48.0234°
 AMVA5N43.1295°
 PINE5N47.3329°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW17LARB1S (6°)ARBON
VNE (16mi, 359°)
D240J (6mi, 354°)
D240J (turn)
EKMEP (18mi, 36°) 3000ft
RW17LGOM1S (6°)GOMET
LTP (8mi, 339°)
D346G (6mi, 342°)
D346G (turn)
EKMEP (25mi, 315°) 3000ft
RW17LRIP1S (6°)RIPTU
RIPTU (turn)
EKMEP (15mi, 236°) 3000ft
RW17LTAL1S (6°)TALAR
TALAR (turn)
EKMEP (19mi, 93°) 3000ft
 RNAVEKMEP 3000ft
FL17L (5mi, 173°) 3000ft
LFLL (7mi, 179°) 834ft
(2759mi, 186°) 5000ft
(turn) 5000ft
RW17RARB1S (6°)ARBON
VNE (16mi, 359°)
D240J (6mi, 354°)
D240J (turn)
ARPOB (18mi, 35°) 3000ft
RW17RGOM1S (6°)GOMET
LTP (8mi, 339°)
D346G (6mi, 342°)
D346G (turn)
ARPOB (25mi, 315°) 3000ft
RW17RRIP1S (6°)RIPTU
RIPTU (turn)
ARPOB (15mi, 236°) 3000ft
RW17RTAL1S (6°)TALAR
TALAR (turn)
ARPOB (19mi, 93°) 3000ft
 RNAVARPOB 3000ft
FL17R (4mi, 173°) 3000ft
LFLL (8mi, 176°) 807ft
(2759mi, 186°) 5000ft
(turn) 5000ft
RW35LARB1N (6°)ARBON
ARBON (turn)
NEGPU (18mi, 42°) 3000ft
RW35LGOM1N (6°)GOMET
GOMET (turn)
NEGPU (19mi, 294°) 3000ft
RW35LRIP1N (6°)RIPTU
RIPTU (turn)
NEGPU (36mi, 201°) 3000ft
RW35LTAL1N (6°)TALAR
D333J (17mi, 145°)
VNE (10mi, 145°)
VNE (turn)
NEGPU (10mi, 97°) 3000ft
 RNAVNEGPU 3000ft
FL35L (4mi, 353°) 3000ft
LFLL (8mi, 350°) 873ft
(2759mi, 186°) 5000ft
(turn) 5000ft
RW35RARB1N (6°)ARBON
ARBON (turn)
INGUV (18mi, 43°) 3000ft
RW35RGOM1N (6°)GOMET
GOMET (turn)
INGUV (19mi, 295°) 3000ft
RW35RRIP1N (6°)RIPTU
RIPTU (turn)
INGUV (36mi, 200°) 3000ft
RW35RTAL1N (6°)TALAR
D333J (17mi, 145°)
VNE (10mi, 145°)
VNE (turn)
INGUV (10mi, 97°) 3000ft
 RNAVINGUV 3000ft
FL35R (4mi, 353°) 3000ft
LFLL (8mi, 348°) 870ft
(2759mi, 186°) 5000ft
(turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AMVA5NGOMETVHFleft163 (343)°10000ft - 14000ftDME 5.0mi230
AMVA5SGOMETVHFleft163 (343)°10000ft - 14000ftDME 5.0mi230
ARSO5NTALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
ARSO5STALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
CFA5NTALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
CFA5STALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
LABA5NTALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
LABA5STALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
MEZI5DARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
MEZI5EARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
MEZI5NARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
MEZI5SARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
MILP5NRIPTUVHFright24 (204)°7000ft - 14000ft1.0min timed220
MILP5SRIPTUVHFright24 (204)°7000ft - 14000ft1.0min timed220
MOU5NTALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
MOU5STALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
MTL5NARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
MTL5SARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
PINE5NGOMETVHFleft163 (343)°10000ft - 14000ftDME 5.0mi230
PINE5SGOMETVHFleft163 (343)°10000ft - 14000ftDME 5.0mi230
TIS5NTALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
TIS5STALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
