Airports for X-Plane

Grenoble/saint-geoirs - Alpes–isère

Airport details

CountryFrance
StateAuvergne-Rhône-Alpes
RegionLF
AirspaceMarseille Ctr
MunicipalitySaint-Étienne-de-Saint-Geoirs
Elevation1299ft (396m)
TimezoneGMT +1
Coordinates45.36294, 5.33266
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFLS
IATA codeGNB
FAA coden/a

Communication

Alpes–Isère Grenoble ATIS133.850
Alpes–Isère GRENOBLE Ground Control121.925
Alpes–Isère GRENOBLE Tower119.300
Alpes–Isère LYON Approach125.800
Alpes–Isère LYON Approach132.000
Alpes–Isère GRENOBLE Approach119.300
Alpes–Isère GRENOBLE Approach120.400

Approach frequencies

ILS-cat-IRW09109.318.00mi
3° GSRW09109.318.00mi

Runway info

Runway 09 / 27
 length3041m (9977ft)
 bearing90° / 270°
 width45m (148ft)
 surfaceasphalt
Runway 09R / 27L
 length899m (2949ft)
 bearing90° / 270°
 width50m (164ft)
 surfacegrass

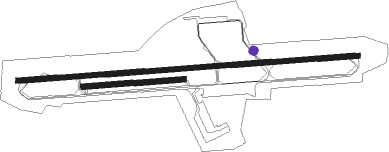

Airport layout - taxiway location N7


Taxiway locations

 N6  N7  S1  S2  S3  S4  S5
Parking locations

 Aeroclub  Blue  Ecole  GA  Gate

Nearby beacons

codeidentifierdistbearingfrequency
EGGRENOBLE NDB2.789°397
WSGRENOBLE NDB7.5270°291
LTPLA TOUR DU PIN VOR/DME8.740°115.55
BRLYON-BRON NDB20.8307°388
VNEVIENNE REVENTIN VOR22.2293°108.20
LSELYON SAINT EXUPERY VOR/DME25.1328°114.75
CHCHAMBERY NDB26.967°346
VEVALENCE NDB34.7216°320
CBYCHAMBERY VOR/DME35.939°115.40
ATANNECY NDB41.654°384
MTLMONTELIMAR ANCONE VOR/DME53.9214°113.65
PASPASSEIRY VOR/DME55.640°116.60
GVAGENEVA VOR/DME63.142°115.75

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW09
 WS4E143mi17°
 PIRU4E34mi34°
 BELU4E22mi40°
 SOPL4E28mi48°
 RISO4E29mi74°
 EB4E117mi180°
 ROMA4E17mi213°
 MURO4E40mi268°
 REPS4E46mi279°
 BELE4E57mi290°
 DANB4E35mi334°
 MOKI4E66mi348°
RW27
 PIRU4W34mi34°
 BELU4W22mi40°
 SOPL4W28mi48°
 RISO4W29mi74°
 EB4W117mi180°
 ROMA4W17mi213°
 MURO4W40mi268°
 REPS4W46mi279°
 BELE4W57mi290°
 DANB4W35mi334°
 MOKI4W66mi348°

STAR starting pointsdistanceinbound heading
ALL
 MTL1A53.934°
 MEZI1A, MEZI1B52.473°
 ROA1A69.8118°
 MILP1A60.8210°
 AMVA1A25.5273°
 PINE1A23.2333°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09ARB1E (7°)ARBON
ARBON (turn)
ODUXA (8mi, 64°) 3300ft
RW09GOM1E (7°)GOMET
GOMET (turn)
ODUXA (18mi, 270°) 3300ft
RW09RIP1E (7°)RIPTU
RIPTU (turn)
ODUXA (46mi, 200°) 3300ft
RW09WS (90°)WS 3300ft
 RNAVODUXA 3300ft
FLS09 (5mi, 90°) 3300ft
LFLS (7mi, 90°) 1276ft
LS510 (5mi, 90°)
LS512 (7mi, 297°)
LS514 (3mi, 251°) 4300ft
ARBON (17mi, 251°) 5000ft
ARBON (turn) 5000ft
RW27ABRET (236°)ABRET
LS404 (5mi, 121°) 5000ft
ILS27 (4mi, 181°) 4200ft
RW27ARBON (80°)ARBON 5000ft
LS402 (11mi, 105°)
DOPIM (9mi, 79°) 4500ft
LS401 (9mi, 79°) 4500ft
LS400 (2mi, 71°) 4500ft
ILS27 (3mi, 1°) 4200ft
RW27GOM1W (7°)GOMET
GOMET (turn)
ILS27 (4mi, 89°) 4200ft
RW27RIP1W (7°)RIPTU
RIPTU (turn)
ILS27 (46mi, 161°) 4200ft
RW27WS (90°)WS 3300ft
 RNAVILS27 4200ft
FLS27 (3mi, 270°) 3700ft
LFLS (7mi, 270°) 1352ft
LS410 (2mi, 270°)
ARBON (17mi, 258°) 5000ft
ARBON (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AMVA1AGOMETVHFleft163 (343)°10000ft - 14000ftDME 5.0mi230
MEZI1AARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
MEZI1BARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
MILP1ARIPTUVHFright24 (204)°7000ft - 14000ft1.0min timed220
MTL1AARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
PINE1AGOMETVHFleft163 (343)°10000ft - 14000ftDME 5.0mi230
ROA1AARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
*) magnetic outbound (inbound) holding course
