Airports for X-Plane

Lyon/bron - Lyon Bron

Airport details

CountryFrance
StateAuvergne-Rhône-Alpes
RegionLF
AirspaceMarseille Ctr
MunicipalitySaint-Priest
Elevation659ft (201m)
TimezoneGMT +1
Coordinates45.72438, 4.94214
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFLY
IATA codeLYN
FAA coden/a

Communication

Lyon Bron ATIS128.130
Lyon Bron Ground Control121.705
Lyon Bron Tower118.100
Lyon Bron LYON Approach 2125.430
Lyon Bron LYON Approach 3120.230
Lyon Bron LYON Approach131.315
Lyon Bron LYON Approach 1133.150
Lyon Bron LYON Approach136.075
Nearby Points of Interest:
hôpital Édouard-Herriot
-
monument à la gloire du service de santé militaire
-
Villeurbanne City Hall
-
Gratte-ciel
-
Montluc prison
-
Palais de Flore
-
Gare des Brotteaux
-
théâtre de l'Eldorado
-
Garage Citroën
-
Prefecture hotel of Rhône
-
Rhône's Pool
-
Hôtel de Sarron
-
Hôtel de Lacroix-Laval
-
Hôtel du Gouverneur militaire de Lyon
-
Chapelle de la Trinité
-
9 quai Jean-Moulin
-
Gare du Bourbonnais
-
Hôtel de Ville de Lyon
-
monument fontaine à Jean-Pierre Pléney
-
Condition des Soies
-
Groupe épiscopal (Lyon)
-
Palais de justice historique de Lyon
-
Manécanterie
-
Antiquaille Hospital
-
Chapelle Saint-Thomas

Runway info

Runway 16 / 34
 length1823m (5981ft)
 bearing157° / 337°
 width45m (148ft)
 surfaceasphalt
 displ threshold300m (984ft) / 300m (984ft)
 blast zone255m (837ft) / 13m (43ft)
Runway 16L / 34R
 length222m (728ft)
 bearing157° / 337°
 width40m (131ft)
 surfacegrass

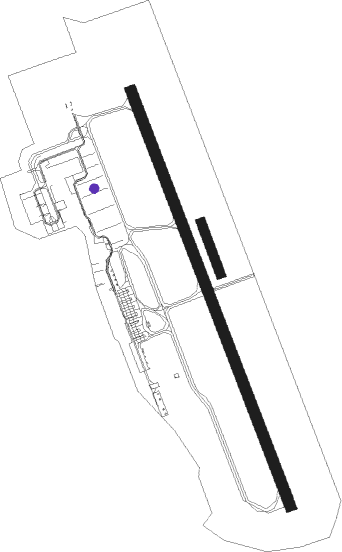

Airport layout - parking location D44


Taxiway locations

 A1  A2  A3  A4  TA  TB  TC
Parking locations

 C12  C21  C22  C23  C31  C32  C33  C34
 C41  C42  C43  C44  C45  C51  C52  C61
 C62  C71  C72  D21  D22  D23  D31  D32
 D33  D34  D41  D42  D44  D45  D51  D52
 D61  D62  D71  D72  GA  H  H1  H2
 H3  H4  H6  H7  H8  H9  Hangar  N13
 N14  N15  N16  N17  N31  N32  N33  N34
 R11  R22  R24  R26  R32  R34  R36  R41
 R42  R43  R44  R45  R46  R62  R64  S72
 S73  S74  S75  S82

Nearby beacons

codeidentifierdistbearingfrequency
LSELYON SAINT EXUPERY VOR/DME6.382°114.75
BRLYON-BRON NDB6.8155°388
VNEVIENNE REVENTIN VOR10.3199°108.20
WSGRENOBLE NDB23.4150°291
LTPLA TOUR DU PIN VOR/DME25.2115°115.55
EBSAINT ETIENNE NDB28.1263°379
EGGRENOBLE NDB28.9128°397
BOSAINT ETIENNE NDB29.6252°299
CBYCHAMBERY VOR/DME35.479°115.40
CHCHAMBERY NDB40.398°346
ROAROANNE VOR44.2290°110.25
RNNROANNE NDB44.4293°358
SNSAINT YAN NDB48.4305°430
VEVALENCE NDB52.5179°320
CCCHAMPFORGEUIL NDB60354°391

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW16
 ALUR2T47mi1°
 MOKI2T44mi12°
 MABE2T39mi28°
 BELU2T27mi94°
 RISO2T44mi100°
 ROMA2T38mi160°
 EB2T140mi171°
 MURO2T33mi235°
 REPS2T31mi253°
 BELE2T34mi275°
 BUSI2T35mi339°
RW34
 ALUR2P47mi1°
 MOKI2P44mi12°
 MABE2P39mi28°
 BELU2P27mi94°
 RISO2P44mi100°
 ROMA2P38mi160°
 EB2P140mi171°
 MURO2Q, MURO2P33mi235°
 REPS2Q31mi253°
 BELE2P34mi275°
 BUSI2P35mi339°

STAR starting pointsdistanceinbound heading
RW16
 MTL5S70.58°
 MEZI5S, MEZI5D52.847°
 CFA5S73.492°
 TIS5S58.896°
 LABA5S68.8101°
 ARSO5S68.2105°
 MOU5S80.2127°
 MILP5S52.2238°
 AMVA5S48.0292°
 PINE5S49.8321°
RW34
 MTL5N70.58°
 MEZI5N, MEZI5E52.847°
 CFA5N73.492°
 TIS5N58.896°
 LABA5N68.8101°
 ARSO5N68.2105°
 MOU5N80.2127°
 MILP5N52.2238°
 AMVA5N48.0292°
 PINE5N49.8321°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16ARB1S (6°)ARBON
VNE (16mi, 359°)
D240K (7mi, 356°)
D240K (turn)
FAGOR (15mi, 358°) 3000ft
RW16ARBON (7°)ARBON
LY411 (22mi, 345°)
LY413 (15mi, 345°)
FAGOR (6mi, 78°) 3000ft
RW16GOM1S (6°)GOMET
LTP (8mi, 339°)
D345F (6mi, 342°)
D345F (turn)
FAGOR (30mi, 301°) 3000ft
RW16GOMET (304°)GOMET
LY401 (14mi, 340°)
LY405 (13mi, 335°)
LY407 (12mi, 315°)
FAGOR (12mi, 258°) 3000ft
RW16RIP1S (6°)RIPTU
RIPTU (turn)
FAGOR (23mi, 247°) 3000ft
RW16RIPTU (225°)RIPTU
LY407 (11mi, 234°)
FAGOR (12mi, 258°) 3000ft
RW16TAL1S (6°)TALAR
TALAR (turn)
FAGOR (11mi, 99°) 3000ft
RW16TALAR (124°)TALAR
LY413 (7mi, 119°)
FAGOR (6mi, 78°) 3000ft
 RNAVFAGOR 3000ft
FLY16 (4mi, 157°) 3000ft
LFLY (8mi, 158°) 697ft
LY404 (7mi, 156°)
ARBON (20mi, 197°) 5000ft
ARBON (turn)
RW34ARB1N (6°)ARBON
ARBON (turn)
RESKU (16mi, 27°) 3000ft
RW34GOM1N (6°)GOMET
GOMET (turn)
RESKU (22mi, 291°) 3000ft
RW34RIP1N (6°)RIPTU
RIPTU (turn)
RESKU (36mi, 208°) 3000ft
RW34TAL1N (6°)TALAR
D258M (17mi, 145°)
VNE (10mi, 145°)
VNE (turn)
RESKU (6mi, 96°) 3000ft
 RNAVRESKU 3000ft
FLY34 (4mi, 337°) 3000ft
LFLY (7mi, 336°) 707ft
LY504 (9mi, 338°)
TALAR (13mi, 287°) 4500ft
TALAR (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AMVA5NGOMETVHFleft163 (343)°10000ft - 14000ftDME 5.0mi230
AMVA5SGOMETVHFleft163 (343)°10000ft - 14000ftDME 5.0mi230
ARSO5NTALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
ARSO5STALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
CFA5NTALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
CFA5STALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
LABA5NTALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
LABA5STALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
MEZI5DARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
MEZI5EARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
MEZI5NARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
MEZI5SARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
MILP5NRIPTUVHFright24 (204)°7000ft - 14000ft1.0min timed220
MILP5SRIPTUVHFright24 (204)°7000ft - 14000ft1.0min timed220
MOU5NTALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
MOU5STALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
MTL5NARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
MTL5SARBONVHFleft195 (15)°7000ft - 14000ftDME 5.0mi220
PINE5NGOMETVHFleft163 (343)°10000ft - 14000ftDME 5.0mi230
PINE5SGOMETVHFleft163 (343)°10000ft - 14000ftDME 5.0mi230
TIS5NTALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
TIS5STALARVHFleft307 (127)°7000ft - 14000ftDME 5.0mi230
*) magnetic outbound (inbound) holding course
