Airports for X-Plane

Marseille - Marseille Provence

Airport details

CountryFrance
StateProvence-Alpes-Côte d'Azur
RegionLF
AirspaceMarseille Ctr
MunicipalityMarignane
Elevation74ft (23m)
TimezoneGMT +1
Coordinates43.43227, 5.22698
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeLFML
IATA codeMRS
FAA coden/a

Communication

Marseille Provence ATIS125.355
Marseille Provence Ground Control121.905
Marseille Provence Tower133.100
Marseille Provence Approach121.430
Marseille Provence Departure133.000

Approach frequencies

ILS-cat-IIIRW13L110.318.00mi
ILS-cat-IRW13R108.318.00mi
ILS-cat-IRW31R111.1518.00mi
4° GSRW31R111.1518.00mi
3° GSRW13R108.318.00mi
3° GSRW13L110.318.00mi
Nearby Points of Interest:
Marseille Provence Airport
-
Viaduc des Eaux-salées
-
roadstead of Marseille
-
Bastide de Montgolfier-la-Tour-du-Pin
-
Oppidum de Pierredon à Éguilles
-
Phare de Sainte Marie
-
Borne milliaire
-
Hôtel de police de Marseille
-
Tour des Trinitaires
-
Bâtiment de l'ancien observatoire de Marseille
-
Hôtel Daviel
-
Marseille City Hall
-
immeuble, 42-66 quai du Port
-
immeuble, 1 rue Saint-Ferréol, Canebière
-
immeuble, 32-34 Canebière
-
immeuble, 36 Canebière
-
Maison du Figaro
-
Immeuble, 40 la Canebière
-
Pavillon de partage des eaux des Chutes-Lavie
-
Arsenal des galères (Marseille)
-
Immeuble, 1 rue Molière
-
Pavillon Cormis ou Enclos des Décormis
-
Maison Gaston Castel
-
Site archéologique de la carrière antique grecque de la Corderie
-
Fort de Bouc

Runway info

Runway 13L / 31R
 length3448m (11312ft)
 bearing125° / 305°
 width45m (148ft)
 surfaceasphalt
 displ threshold290m (951ft) / 651m (2136ft)
 blast zone144m (472ft) / 105m (344ft)
Runway 13R / 31L
 length2372m (7782ft)
 bearing126° / 306°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 105m (344ft)
 blast zone66m (217ft) / 65m (213ft)

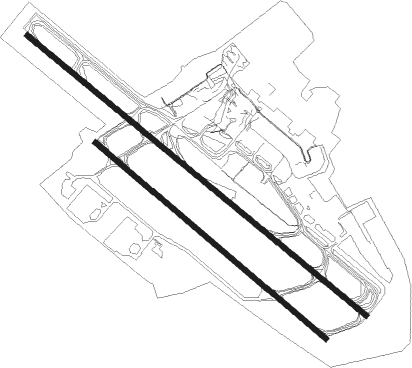

Airport layout


Taxiway locations

 C1  C2  C4  C5  C6  C7  C8  D1
 D2  D3  D4  D6  D7  D8  D9  E2
 E3  E7  E9  F3  F7
Parking locations

 10A  10C  10N  11N  14S  15S  16N  17N
 18S  19S  1A  1Z  20A  20C  20S  22S
 2A  2N  30  30C  31E  34C  34E  35
 3C  3N  40C  40D  44C  44E  47A  47C
 47E  48A  48C  49C  49E  4B  4N  4Z
 52A  53A  53C  5C  5N  5Z  60N  62N
 63A  63B  63C  63E  64  65  67N  69N
 6A1  6C  6N  6Z  70A  70B  70C  71
 72  73  74  75  76  77  78  7A
 7C  7N  80  81  82  83B  83D  8C
 8N  93  94  95  96A  96C  97A  97B
 9A  9C

Nearby beacons

codeidentifierdistbearingfrequency
MJMARSEILLE PROVENCE NDB0.5300°406
MSMARSEILLE NDB3.5128°343
MARMARSEILLE NDB5.2303°383
MRMMARSEILLE PROVENCE VOR/DME5.4119°108.80
MTGMARTIGUES VOR/DME6.7252°117.30
ALMAIX LES MILLES NDB7.562°413
SALSALON DE PROVENCE NDB12325°334
ITSISTRES LE TUBE VOR/DME13.1283°112.70
ITRISTRES LE TUBE NDB14.1288°390
ITRISTRES LE TUBE TACAN14.2287°115.70
OBMARSEILLE PROVENCE NDB22.6115°395
CMAVIGNON CAUMONT NDB31.8326°369
ANCAUMONT DME-ILS32326°110.50
MFBBRIGNOLES NDB34.491°688
SCLSAINT CHRISTOL NDB3924°348
AVNAVIGNON VOR/DME39.7320°114.60
NGGARONS DME-ILS40.5292°109.55
NFACUERS NDB40.8102°640
NGNIMES NDB43.8297°354
HYEHYERES LE PALYVESTRE TACAN44.9110°109
ORGORANGE TACAN45.2333°109.40
ORGORANGE NDB45.7333°328
TLNHYERES NDB47113°322
DGNDIGNE VOR50.657°113.85

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW13L
 NASI6S, NASI6B45mi90°
 LUC6S, LUC6B45mi93°
 MADR6B13mi153°
 TINO6S44mi173°
 SOSU6S53mi195°
 VATI6S90mi221°
 MAME6S91mi225°
 FJR6S55mi277°
 LERG6S, LERG6B127mi321°
 MTL6T, MTL6U, MTL6S, MTL6B70mi338°
 ETRE6S, ETRE6B108mi341°
RW13R
 NASI6B, NASI6S45mi90°
 LUC6B, LUC6S45mi93°
 MADR6B13mi153°
 TINO6S44mi173°
 SOSU6S53mi195°
 VATI6S90mi221°
 MAME6S91mi225°
 FJR6S55mi277°
 LERG6S, LERG6B127mi321°
 MTL6B, MTL6U, MTL6T, MTL6S70mi338°
 ETRE6S, ETRE6B108mi341°
RW31L
 NASI6N, NASI6U, NASI6C45mi90°
 LUC6C, LUC6N, LUC6U45mi93°
 TINO6N44mi173°
 SOSU6N53mi195°
 VATI6N90mi221°
 MAME6N91mi225°
 FJR6N55mi277°
 LERG6N, LERG6C127mi321°
 MTL6C, MTL6N70mi338°
 ETRE6C, ETRE6N108mi341°
RW31R
 NASI6U, NASI6N, NASI6C45mi90°
 LUC6N, LUC6C, LUC6U45mi93°
 TINO6N44mi173°
 SOSU6N53mi195°
 VATI6N90mi221°
 MAME6N91mi225°
 FJR6N55mi277°
 LERG6C, LERG6N127mi321°
 MTL6C, MTL6N70mi338°
 ETRE6N, ETRE6C108mi341°

STAR starting pointsdistanceinbound heading
ALL
 SOSU1L53.315°
 FJR1L32.986°
 LANK1G36.5285°
 NIDE1L32.3339°
 TINO1L44.2353°
RW13 (ALL)
 LERG1R126.6141°
 MTL1R70.1158°
 BALS1R126.7200°
RW31 (ALL)
 LERG1D126.6141°
 MTL1D70.1158°
 BALS1D126.7200°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13LZGEMKO (294°)GEMKO
VAKOP (26mi, 277°)
ERLAX (6mi, 3°)
ADIVA (5mi, 307°) 5000ft
OLIBO (7mi, 307°)
ML402 (3mi, 67°) 5000ft
I13LZ (3mi, 67°) 4000ft
RW13LZLIPSU (13°)LIPSU
NATEG (16mi, 341°)
VAKOP (8mi, 356°)
ERLAX (6mi, 3°)
ADIVA (5mi, 307°) 5000ft
OLIBO (7mi, 307°)
ML402 (3mi, 67°) 5000ft
I13LZ (3mi, 67°) 4000ft
RW13LZRIKSI (141°)RIKSI
AVN (8mi, 151°)
ML602 (12mi, 151°)
MAZET (5mi, 151°) 5000ft
I13LZ (6mi, 157°) 4000ft
RW13LZSALIN (73°)SALIN
VAKOP (13mi, 80°)
ERLAX (6mi, 3°)
ADIVA (5mi, 307°) 5000ft
OLIBO (7mi, 307°)
ML402 (3mi, 67°) 5000ft
I13LZ (3mi, 67°) 4000ft
 RNAVI13LZ 4000ft
F13LZ (3mi, 125°) 4000ft
LFML (14mi, 124°) 63ft
ML408 (5mi, 127°)
LIPSU (27mi, 204°) 4000ft
LIPSU (turn) 4000ft
RW13RZGEMKO (294°)GEMKO
VAKOP (26mi, 277°)
ERLAX (6mi, 3°)
ADIVA (5mi, 307°) 5000ft
OLIBO (7mi, 307°)
ML402 (3mi, 67°) 5000ft
I13RZ (3mi, 67°) 4000ft
RW13RZLIPSU (13°)LIPSU
NATEG (16mi, 341°)
VAKOP (8mi, 356°)
ERLAX (6mi, 3°)
ADIVA (5mi, 307°) 5000ft
OLIBO (7mi, 307°)
ML402 (3mi, 67°) 5000ft
I13RZ (3mi, 67°) 4000ft
RW13RZRIKSI (141°)RIKSI
AVN (8mi, 151°)
ML602 (12mi, 151°)
MAZET (5mi, 151°) 5000ft
I13RZ (6mi, 156°) 4000ft
RW13RZSALIN (73°)SALIN
VAKOP (13mi, 80°)
ERLAX (6mi, 3°)
ADIVA (5mi, 307°) 5000ft
OLIBO (7mi, 307°)
ML402 (3mi, 67°) 5000ft
I13RZ (3mi, 67°) 4000ft
 RNAVI13RZ 4000ft
F13RZ (4mi, 126°) 4000ft
LFML (13mi, 124°) 62ft
ML407 (5mi, 130°)
LIPSU (27mi, 204°) 4000ft
LIPSU (turn) 4000ft
RW31LZDOLIV (170°)DOLIV
VENTA (8mi, 156°)
LACAZ (9mi, 187°)
IBILI (9mi, 186°) 5000ft
ELRIV (4mi, 133°)
MADRA (3mi, 90°) 4000ft
POMEG (4mi, 359°) 3000ft
RW31LZGEMKO (294°)GEMKO
RUSEX (9mi, 259°) 5000ft
MADRA (3mi, 270°) 4000ft
POMEG (4mi, 359°) 3000ft
RW31LZLIPSU (13°)LIPSU
MADRA (20mi, 37°) 4000ft
POMEG (4mi, 359°) 3000ft
RW31LZSALIN (73°)SALIN
ELRIV (23mi, 96°)
MADRA (3mi, 90°) 4000ft
POMEG (4mi, 359°) 3000ft
 RNAVPOMEG 3000ft
F31LZ (5mi, 338°) 2000ft
LFML (5mi, 310°) 111ft
ML202 (2mi, 298°)
MTG (6mi, 233°) 3500ft
LIPSU (27mi, 176°) 4000ft
LIPSU (turn) 4000ft
RW31RZDOLIV (170°)DOLIV
VENTA (8mi, 156°)
LACAZ (9mi, 187°)
IBILI (9mi, 186°) 5000ft
ELRIV (4mi, 133°)
MADRA (3mi, 90°) 4000ft
POMEG (4mi, 359°) 3000ft
RW31RZGEMKO (294°)GEMKO
RUSEX (9mi, 259°) 5000ft
MADRA (3mi, 270°) 4000ft
POMEG (4mi, 359°) 3000ft
RW31RZLIPSU (13°)LIPSU
MADRA (20mi, 37°) 4000ft
POMEG (4mi, 359°) 3000ft
RW31RZSALIN (73°)SALIN
ELRIV (23mi, 96°)
MADRA (3mi, 90°) 4000ft
POMEG (4mi, 359°) 3000ft
 RNAVPOMEG 3000ft
F31RZ (5mi, 339°) 2000ft
LFML (4mi, 307°) 110ft
ML207 (3mi, 302°)
MTG (6mi, 232°) 3500ft
LIPSU (27mi, 176°) 4000ft
LIPSU (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BALS1DDOLIVVHFleft339 (159)°11000ft - 14000ftDME 7.5mi210
BALS1RRIKSIVHFright336 (156)°11000ft - 14000ftDME 7.5mi210
FJR1LLIPSUVHFleft218 (38)°4000ft - 14000ft1.0min timed230
LANK1GGEMKOVHFleft117 (297)°5000ft - 8000ft1.0min timed185
LERG1DDOLIVVHFleft339 (159)°11000ft - 14000ftDME 7.5mi210
LERG1RRIKSIVHFright336 (156)°11000ft - 14000ftDME 7.5mi210
MTL1DDOLIVVHFleft339 (159)°11000ft - 14000ftDME 7.5mi210
MTL1RRIKSIVHFright336 (156)°11000ft - 14000ftDME 7.5mi210
NIDE1LLIPSUVHFleft218 (38)°4000ft - 14000ft1.0min timed230
SOSU1LLIPSUVHFleft218 (38)°4000ft - 14000ft1.0min timed230
TINO1LLIPSUVHFleft218 (38)°4000ft - 14000ft1.0min timed230
*) magnetic outbound (inbound) holding course
