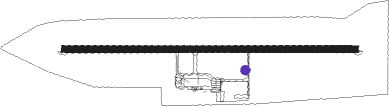

Beziers - Beziers Cap D'agde
Airport details
| Country | France |
| State | Occitania |
| Region | LF |
| Airspace | Marseille Ctr |
| Municipality | Portiragnes |
| Elevation | 54ft (16m) |
| Timezone | GMT +1 |
| Coordinates | 43.32333, 3.35333 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | LFMU |
| IATA code | BZR |
| FAA code | n/a |
Communication
| Beziers Cap d'Agde LFMU ATIS | 127.525 |
| Beziers Cap d'Agde BEZIERS Tower | 123.000 |
| Beziers Cap d'Agde BEZIERS Tower | 120.175 |
| Beziers Cap d'Agde MONTPELLIER Approach | 130.850 |
| Beziers Cap d'Agde MONTPELLIER Approach | 133.775 |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| ZR | VIAS DME-ILS | 0.3 | 263° | 109.35 |
| ZR | BEZIERS VIAS NDB | 3 | 273° | 397 |
| FJR | MONTPELLIER MEDITERRANEE VOR/DME | 31.1 | 68° | 114.45 |
| FG | MONTPELLIER NDB | 32 | 71° | 339 |
| PPG | PERPIGNAN RIVESALTES VOR/DME | 40.5 | 220° | 117.20 |
| PL | RIVESALTES (PERPIGNAN) NDB | 43 | 214° | 351 |
| DA | ALES CEVENNES NDB | 56.2 | 47° | 402 |
Departure and arrival routes
| Transition altitude | 5000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW09 | |||
| FJR6E | 31mi | 68° | |
| KELA6E | 23mi | 253° | |
| AFRI6E | 34mi | 313° | |
| MEN6E | 78mi | 352° | |
| RW27 | |||
| FJR6W | 31mi | 68° | |
| KELA6W | 23mi | 253° | |
| AFRI6W | 34mi | 313° | |
| MEN6W | 78mi | 352° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| AFRI2Z | 34.3 | 133° | |
| MEN2Z | 77.6 | 172° | |
| FJR2Z | 31.1 | 248° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW09 | EVADO (323°) | EVADO MU504 (11mi, 280°) MU500 (4mi, 281°) 3000ft IMU09 (5mi, 6°) 2000ft |
| RW09 | MU500 (74°) | MU500 3000ft IMU09 (5mi, 6°) 2000ft |
| RW09 | MU502 (111°) | MU502 4000ft IMU09 (5mi, 186°) 2000ft |
| RW09 | MU503 (93°) | MU503 4000ft IMU09 (4mi, 93°) 2000ft |
| RW09 | ZR (83°) | ZR MU504 (8mi, 239°) MU500 (4mi, 281°) 3000ft IMU09 (5mi, 6°) 2000ft |
| RNAV | IMU09 2000ft FMU09 (4mi, 93°) 2000ft LFMU (6mi, 93°) 101ft MU510 (2mi, 93°) 2000ft MU511 (4mi, 93°) 3000ft EVADO (8mi, 194°) 3000ft ZR (9mi, 321°) 3000ft ZR (turn) | |
| RW27 | MU400 (262°) | MU400 3000ft IMU27 (3mi, 186°) 3000ft |
| RW27 | MU402 (285°) | MU402 3000ft IMU27 (3mi, 6°) 3000ft |
| RNAV | IMU27 3000ft FMU27 (3mi, 273°) 3000ft LFMU (9mi, 273°) 91ft ZR (turn) 3000ft ZR (turn) |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| AFRI2Z | ZR | FIX | right | 272 (92)° | 2000ft - 6000ft | 1.0min timed | 170 |
| FJR2Z | ZR | FIX | right | 272 (92)° | 2000ft - 6000ft | 1.0min timed | 170 |
| MEN2Z | ZR | FIX | right | 272 (92)° | 2000ft - 6000ft | 1.0min timed | 170 |
| SIJA2Z | ZR | FIX | right | 272 (92)° | 2000ft - 6000ft | 1.0min timed | 170 |
| *) magnetic outbound (inbound) holding course | |||||||
