Airports for X-Plane

Paris - Paris - Charles De Gaulle

Airport details

CountryFrance
StateIle-de-France
RegionLF
AirspaceParis Ctr
MunicipalityMauregard
Elevation392ft (119m)
TimezoneGMT +1
Coordinates49.01588, 2.56097
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFPG
IATA codeCDG
FAA coden/a

Communication

Paris - Charles De Gaulle De Gaulle ATIS127.130
Paris - Charles De Gaulle De Gaulle Delivery121.840
Paris - Charles De Gaulle De Gaulle Ground North121.610
Paris - Charles De Gaulle De Gaulle Ground South121.810
Paris - Charles De Gaulle De Gaulle Twr North 2123.605
Paris - Charles De Gaulle De Gaulle Twr South 1120.900
Paris - Charles De Gaulle De Gaulle Twr South 2118.655
Paris - Charles De Gaulle De Gaulle Twr North 1119.250
Paris - Charles De Gaulle De Gaulle Arrival SE/SW125.830
Paris - Charles De Gaulle De Gaulle Arrival NE/NW121.155
Paris - Charles De Gaulle De Gaulle Departure North124.355
Paris - Charles De Gaulle De Gaulle Departure East131.200
Paris - Charles De Gaulle De Gaulle Departure S/W133.380

Approach frequencies

ILS-cat-IIIRW09L109.3518.00mi
ILS-cat-IIIRW27R110.3518.00mi
ILS-cat-IIIRW08L108.718.00mi
ILS-cat-IIIRW26R111.9518.00mi
ILS-cat-IIIRW26L108.3518.00mi
ILS-cat-IIIRW08R108.5518.00mi
ILS-cat-IIIRW27L110.718.00mi
ILS-cat-IIIRW09R110.118.00mi
3° GSRW27R110.3518.00mi
3° GSRW08L108.718.00mi
3° GSRW26L108.3518.00mi
3° GSRW08R108.5518.00mi
3° GSRW09L109.3518.00mi
3° GSRW27L110.718.00mi
3° GSRW09R110.118.00mi
3° GSRW26R111.9518.00mi
Nearby Points of Interest:
colombier-porche
-
Tour Saint-Rieul, Louvres
-
église Saint-Pierre et Saint-Paul, Vémars
-
Château des Carneaux
-
Pigeonnier de la ferme de Montmorency
-
Poudrerie nationale de Sevran-Livry
-
Colombier de Garlande
-
Colombier d'Orgemont
-
Paris–Le Bourget Airport
-
Town hall of Clichy-sous-Bois
-
Petit Château de Montfermeil
-
Drancy concentration camp
-
Town hall of Stains
-
Gare de Bobigny
-
Cité expérimentale de Merlan
-
Pierre de Chilpéric
-
cité des Courtillières
-
Bourse départementale du travail
-
Siège de la Documentation française
-
église des Trois-Patrons
-
Hospital of Ville-Évrard
-
town hall of Pantin
-
Couvent des Ursulines, Saint-Denis
-
Grands Moulins de Pantin
-
Chantilly Forest

Runway info

Runway 09L / 27R
 length2693m (8835ft)
 bearing87° / 267°
 width60m (197ft)
 surfaceasphalt
 blast zone152m (499ft) / 66m (217ft)
Runway 09R / 27L
 length4190m (13747ft)
 bearing87° / 267°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 599m (1965ft)
Runway 08L / 26R
 length4130m (13550ft)
 bearing87° / 267°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 528m (1732ft)
 blast zone151m (495ft) / 135m (443ft)
Runway 08R / 26L
 length2691m (8829ft)
 bearing87° / 267°
 width60m (197ft)
 surfaceasphalt
 blast zone150m (492ft) / 149m (489ft)

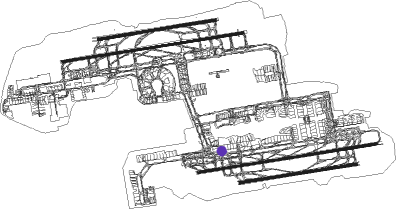

Airport layout - parking location A01


Taxiway locations

 A  A4  B  D  D1  D3  D4  D5
 D6  DEICING|HO  DY  E  F  G3  K  K1
 K2  K3  K6  K7  K8  MIDDLE1  MIDDLE2  N
 Q  Q2  Q3  Q4  Q5  Q6  QB12  QB3
 QB4  QB5  QB6  R  R1  RN3  RT1  S
 S1  S2  S3  S6  S7  S9  T  T1
 T10  T11  T12  T2  T3  T4  T5  T6
 T9  TE1  TE2  TE3  TJ2  TJ3  TK1  TK2
 TK3  TK4  TL1  TL2  TL3  TL4  TL6  TL7
 UT1  V1  V2  V3  V4  V5  V6  V7
 V9  W1  W2  W3  W6  WT  Y1  Y1A
 Y2  Y3  Y4  Y5  Y6  Z1  Z2  Z3
 Z4  Z5  Z6  Z7  Z8
Parking locations

 A01  A03  A04  A05  A06  A07  A08  A09
 A10  A12  A14  A16  A18  A30  A32  A34
 A36  A38  A39  B01  B02  B03  B04  B05
 B06  B07  B09  B10  B11  B12  B13  B14
 B15  B16  B18  B20  B22  B24  B26  B8
 C02  C03  C04  C04A  C05  C06  C07  C08
 C10  C12  C14  CF9  CFE  CFW  D02  D03
 D04  D05  D06  D07  D08  D09  D10  D11
 D12  D13  D14  D15  D16  D17  D18  D19
 D20  D22  D24  E05  E09  E10  E12  E13
 E14  E16  E17  E18  E20  E21  E22  E24
 E25  E26  E29  E30  E32  E34  E38  E40
 E42  E44  EN20  EN21  EN22  EN23  EN24  EN40
 EN41  EN42  EN43  EN49  EN50  EN51  EN52  EN55
 EN56  EN57  EN80  EN81  EN82  EN83  EN90  EN92
 EN93  F02  F03  F04  F08  F09  F10  F14
 F15  F16  F20  F22  F26  F28  F30  F32
 F66  F68  F70  F72  F74  F76  F80  F82
 F84  F86  F90  F92  F94  F96  G10  G11
 G12  G13  G14  G20  G21  G22  G23  G24
 G31  G35  H01  H02  H03  H04  H05  H06
 H07  H08  H09  H10  H11  H12  H20  H21
 H22  H23  H30  H34  H40  H50  H55  H60
 H65  H70  H80  H87  I04  I05  I06  I07
 I09  I10  I11  I12  I14  I15  I16  I17
 I18  I19  I20  I21  I22  I23  I24  I25
 I26  I27  I30  I31  I32  I33  I34  I35
 I36  I37  I38  I39  I3A  I3B  I3C  I3D
 I3F  I3G  I3H  I40  I41  I42  I43  I44
 I45  I46  I47  I48  I49  I4J  I4K  I4L
 I4M  I4N  I4O  I4P  I4R  I4S  I4T  I4U
 I4V  I4W  I4X  I50  I51  I52  I53  I54
 I55  I60  I61  I62  I63  I64  I65  I66
 I67  I68  I69  I70  I71  I72  I73  I74
 I75  I76  I77  I78  I79  I80  I81  I82
 I83E  I83W  I84E  I84W  I85  I86  I87  I88
 I89  I90  I91  J01  J02  J03  J04  J05
 J06  J10  J11  J12  J13  J14  J16  J18
 J20  J21  J30  J31  J33  J34  J37  J38
 J39  J40  J41  K01  K05  K09  K13  K17
 K21  K26  K32  K38  K44  K52  K53  K58
 K59  K64  K65  K70  K71  K76  L27  L33
 L39  L53  L59  L65  L71  M06  M07  M08
 M09  M10  M11  M12  M13  M14  M15  M16
 M17  M20  M21  M22  M23  M26  N01  N02
 N03  N04  N05  N06  N08  N09  N10  N11
 N31  N33  N41  N43  N51  N53  N60  N61
 N63  N68  N69  N70  N71  N72  N73  N78
 N79  P70  P71  P72  P73  P74  P75  P76
 P80  P81  P82  P83  P84  P85  P86  P90
 P91  P92  P93  P94  PH1  PH2  Q1  Q10
 Q11  Q12  Q13  Q14  Q15  Q16  Q17  Q18
 Q19  Q2  Q20  Q21  Q3  Q4  Q5  Q6
 Q7  Q8  Q9  R01  R02  R03  R04  R05
 R06  R07  R08  R09  R10  R11  R12  R13
 R14  R39  S06  S07  S08  S09  S10  S11
 S12  S13  S14  S15  S16  S17  S18  S19
 S20  S21  S22  S23  S24  S25  S26  S27
 S28  S29  S30  S31  U06  U07  U08  U10
 U11  V06  V07  V08  V4  V5  V9  W01
 W02  W03  W04  W05  W06  W07  W08  X01
 X02  X03  X04  X05  X06  X07  X08  Y01
 Y02  Y03  Y04  Y05  Y06  Y07  Y08  Y09
 Z01  Z02  Z03  Z04  Z05  Z06  Z07  Z08
 Z09

Nearby beacons

codeidentifierdistbearingfrequency
CGN(PARIS) DME2.4274°115.35
PGSCHARLES-DE-GAULLE (PARIS) VOR/DME2.6105°117.05
BTLE BOURGET (PARIS) VOR/DME4.8249°116.10
POYORLY (PARIS) NDB18.4211°334
CLMCOULOMMIERS VOR/DME20.6111°112.90
PONPONTOISE CORMEILLES EN VE VOR21.2279°111.60
BSNDME2271°114.85
TAVILLACOUBLAY NDB23.4242°286
TSUTOUSSUS LE NOBLE VOR23.9240°108.25
BOVBEAUVAIS TILLE VOR/DME29.8316°109.65
RBTRAMBOUILLET VOR/DME31.2237°114.70
MVMELUN NDB32.2138°434
MTDMONTDIDIER VOR32.3352°113.65
HOLVILLACOUBLAY NDB33.8249°315
MLNMELUN VILLAROCHE VOR/DME35156°113.60
BVBEAUVAIS NDB35.3312°391
EPREPERNON VOR/DME42.7247°115.65
BRYBRAY SUR SEINE VOR/DME46.7130°114.10
GIAMIENS NDB49.7355°339
PTVPITHIVIERS VOR52.9199°116.50
ABYALBERT BRAY NDB58.415°321

Departure and arrival routes

Transition altitude5000ft
Transition level70ft
SID end pointsdistanceoutbound heading
RW08L
 NURM5H, NURM5L49mi13°
 DIKO5H, DIKO5L59mi85°
 RANU5H, RANU5L71mi86°
 BUBL5H, BUBL5L64mi99°
 BAXI5H, BAXI5L53mi100°
 LANV5L, LANV5H135mi102°
 PO5L17mi125°
 PILU5L, PILU5H59mi152°
 DORD5L, DORD5H49mi164°
 OKAS5H, OKAS5L57mi167°
 LATR5H, LATR5L56mi183°
 MONO5L, MONO5H56mi186°
 ERIX5H, ERIX5L57mi198°
 PTV5H, PTV5L53mi199°
 PO5H35mi209°
 AGOP5H, AGOP5L60mi211°
 LGL5H, LGL5L81mi264°
 EVX5L, EVX5H50mi273°
 OPAL5L, OPAL5H59mi323°
 ATRE5L, ATRE5H47mi346°
RW08R
 NURM5H, NURM5L49mi13°
 DIKO5L, DIKO5H59mi85°
 RANU5L, RANU5H71mi86°
 BUBL5L, BUBL5H64mi99°
 BAXI5L, BAXI5H53mi100°
 LANV5L, LANV5H135mi102°
 PO5L17mi125°
 PILU5H, PILU5L59mi152°
 DORD5L, DORD5H49mi164°
 OKAS5L, OKAS5H57mi167°
 LATR5H, LATR5L56mi183°
 MONO5H, MONO5L56mi186°
 ERIX5H, ERIX5L57mi198°
 PTV5L, PTV5H53mi199°
 PO5H35mi209°
 AGOP5H, AGOP5L60mi211°
 LGL5H, LGL5L81mi264°
 EVX5H, EVX5L50mi273°
 OPAL5H, OPAL5L59mi323°
 ATRE5H, ATRE5L47mi346°
RW09L
 NURM5G, NURM5K49mi13°
 DIKO5K, DIKO5G59mi85°
 RANU5K, RANU5G71mi86°
 BUBL5G, BUBL5K64mi99°
 BAXI5G, BAXI5K53mi100°
 LANV5G, LANV5K135mi102°
 PILU5K, PILU5G59mi152°
 DORD5G, DORD5K49mi164°
 OKAS5G, OKAS5K57mi167°
 LATR5G, LATR5K56mi183°
 MONO5G, MONO5K56mi186°
 ERIX5G, ERIX5K57mi198°
 PTV5K, PTV5G53mi199°
 AGOP5G, AGOP5K60mi211°
 LGL5K, LGL5G81mi264°
 EVX5G, EVX5K50mi273°
 OPAL5K, OPAL5G59mi323°
 ATRE5G, ATRE5K47mi346°
RW09R
 NURM5G, NURM5K49mi13°
 DIKO5K, DIKO5G59mi85°
 RANU5G, RANU5K71mi86°
 BUBL5G, BUBL5K64mi99°
 BAXI5G, BAXI5K53mi100°
 LANV5K, LANV5G135mi102°
 PILU5G, PILU5K59mi152°
 DORD5K, DORD5G49mi164°
 OKAS5G, OKAS5K57mi167°
 LATR5K, LATR5G56mi183°
 MONO5G, MONO5K56mi186°
 ERIX5G, ERIX5K57mi198°
 PTV5K, PTV5G53mi199°
 AGOP5G, AGOP5K60mi211°
 LGL5K, LGL5G81mi264°
 EVX5K, EVX5G50mi273°
 OPAL5K, OPAL5G59mi323°
 ATRE5G, ATRE5K47mi346°
RW26L
 NURM5E, NURM5B49mi13°
 DIKO5B, DIKO5E59mi85°
 RANU5B, RANU5E71mi86°
 BUBL5B, BUBL5E64mi99°
 BAXI5E, BAXI5B53mi100°
 LANV5E, LANV5B135mi102°
 PILU5E, PILU5B59mi152°
 PO5B25mi160°
 DORD5E, DORD5B49mi164°
 OKAS5B, OKAS5E57mi167°
 LATR5E, LATR5B56mi183°
 MONO5B, MONO5E56mi186°
 ERIX5B, ERIX5E57mi198°
 PTV5E, PTV5B53mi199°
 AGOP5B, AGOP5E60mi211°
 PO5E27mi258°
 LGL5B, LGL5E81mi264°
 EVX5B, EVX5E50mi273°
 OPAL5E, OPAL5B59mi323°
 ATRE5B, ATRE5E47mi346°
RW26R
 NURM5B, NURM5E49mi13°
 DIKO5E, DIKO5B59mi85°
 RANU5E, RANU5B71mi86°
 BUBL5E, BUBL5B64mi99°
 BAXI5E, BAXI5B53mi100°
 LANV5B, LANV5E135mi102°
 PILU5B, PILU5E59mi152°
 PO5B25mi160°
 DORD5B, DORD5E49mi164°
 OKAS5B, OKAS5E57mi167°
 LATR5B, LATR5E56mi183°
 MONO5E, MONO5B56mi186°
 ERIX5B, ERIX5E57mi198°
 PTV5E, PTV5B53mi199°
 AGOP5E, AGOP5B60mi211°
 PO5E27mi258°
 LGL5B, LGL5E81mi264°
 EVX5B, EVX5E50mi273°
 OPAL5E, OPAL5B59mi323°
 ATRE5E, ATRE5B47mi346°
RW27L
 NURM5A, NURM5D49mi13°
 DIKO5D, DIKO5A59mi85°
 RANU5A, RANU5D71mi86°
 BUBL5D, BUBL5A64mi99°
 BAXI5D, BAXI5A53mi100°
 LANV5D, LANV5A135mi102°
 PILU5A, PILU5D, PILU5Z59mi152°
 DORD5Z, DORD5D, DORD5A49mi164°
 OKAS5D, OKAS5Z, OKAS5A57mi167°
 LATR5Z, LATR5A, LATR5D56mi183°
 MONO5Z, MONO5A, MONO5D56mi186°
 ERIX5A, ERIX5Z, ERIX5D57mi198°
 PTV5A, PTV5D, PTV5Z53mi199°
 AGOP5A, AGOP5D, AGOP5Z60mi211°
 LGL5Z, LGL5D, LGL5A81mi264°
 EVX5Z, EVX5D, EVX5A50mi273°
 OPAL5D, OPAL5A59mi323°
 ATRE5A, ATRE5D47mi346°
RW27R
 NURM5A, NURM5D49mi13°
 DIKO5D, DIKO5A59mi85°
 RANU5D, RANU5A71mi86°
 BUBL5A, BUBL5D64mi99°
 BAXI5A, BAXI5D53mi100°
 LANV5D, LANV5A135mi102°
 PILU5D, PILU5Z, PILU5A59mi152°
 DORD5D, DORD5Z, DORD5A49mi164°
 OKAS5Z, OKAS5D, OKAS5A57mi167°
 LATR5Z, LATR5A, LATR5D56mi183°
 MONO5Z, MONO5D, MONO5A56mi186°
 ERIX5D, ERIX5Z, ERIX5A57mi198°
 PTV5Z, PTV5D, PTV5A53mi199°
 AGOP5A, AGOP5D, AGOP5Z60mi211°
 LGL5Z, LGL5A, LGL5D81mi264°
 EVX5A, EVX5D, EVX5Z50mi273°
 OPAL5D, OPAL5A59mi323°
 ATRE5A, ATRE5D47mi346°

STAR starting pointsdistanceinbound heading
ALL
 KOVA9W, KOVA9P, KOVA9E91.759°
 KEPE9P, KEPE9W, KEPE9E116.562°
 SABL9E, SABL9W, SABL9P131.968°
 LUKI9V, LUKI9P, LUKI9E, LUKI9D, LUKI9W83.098°
 BIBA9V, BIBA9W, BIBA9P, BIBA9E, BIBA9D87.0124°
 MOPI9W, MOPI9H, MOPI9J, MOPI9E90.8234°
 DINA9W, DINA9J, DINA9E, DINA9H118.7254°
 VEDU9J, VEDU9H93.6255°
 EPL9H, EPL9W, EPL9P, EPL9E144.9281°
 RLP9W, RLP9P, RLP9E, RLP9H126.0292°
 TRO9P, TRO9E, TRO9H, TRO9W72.1299°
 TINI9W, TINI9E132.7299°
 DJL9H, DJL9E, DJL9W, DJL9P145.9305°
 PIBA9E, PIBA9W, PIBA9P, PIBA9H149.2322°
 MOU9E, MOU9P, MOU9H, MOU9W145.2335°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW08LBAN6E (3°)BANOX
SUBOX (12mi, 36°)
SUBOX (turn)
PG410 (23mi, 65°) 5000ft
RW08LLOR6E (3°)LORNI
BUNOR (37mi, 255°)
PG501 (8mi, 269°)
PG501 (turn)
PG410 (16mi, 233°) 5000ft
RW08LMOP6E (3°)MOPAR
PG527 (8mi, 146°)
PG527 (turn)
PG410 (16mi, 128°) 5000ft
RW08LOKI6E (3°)OKIPA
CLM (26mi, 293°)
MOSUD (8mi, 301°)
PG503 (16mi, 267°)
PG503 (turn)
PG410 (15mi, 279°) 5000ft
RW08LOKI6N (3°)OKIPA
CLM (26mi, 293°)
MOSUD (8mi, 301°)
LARPO (15mi, 302°)
PG502 (8mi, 269°)
PG502 (turn)
PG410 (14mi, 245°) 5000ft
 RNAVPG410 5000ft
FG08L (4mi, 87°) 5000ft
LFPG (15mi, 84°) 395ft
PG415 (20mi, 89°)
PG416 (3mi, 87°) 5000ft
RW08RBAN6E (3°)BANOX
SUBOX (12mi, 36°)
SUBOX (turn)
PG420 (23mi, 65°) 5000ft
RW08RLOR6E (3°)LORNI
BUNOR (37mi, 255°)
PG501 (8mi, 269°)
PG501 (turn)
PG420 (16mi, 231°) 5000ft
RW08RMOP6E (3°)MOPAR
PG527 (8mi, 146°)
PG527 (turn)
PG420 (16mi, 127°) 5000ft
RW08ROKI6E (3°)OKIPA
CLM (26mi, 293°)
MOSUD (8mi, 301°)
PG503 (16mi, 267°)
PG503 (turn)
PG420 (14mi, 278°) 5000ft
RW08ROKI6N (3°)OKIPA
CLM (26mi, 293°)
MOSUD (8mi, 301°)
LARPO (15mi, 302°)
PG502 (8mi, 269°)
PG502 (turn)
PG420 (14mi, 244°) 5000ft
 RNAVPG420 5000ft
FG08R (4mi, 87°) 5000ft
LFPG (14mi, 83°) 391ft
PG425 (20mi, 90°)
PG416 (4mi, 85°) 5000ft
RW09LBAN6E (3°)BANOX
SUBOX (12mi, 36°)
SUBOX (turn)
PG670 (24mi, 62°) 4000ft
RW09LLOR6E (3°)LORNI
BUNOR (37mi, 255°)
PG501 (8mi, 269°)
PG501 (turn)
PG670 (15mi, 237°) 4000ft
RW09LMOP6E (3°)MOPAR
PG527 (8mi, 146°)
PG527 (turn)
PG670 (15mi, 122°) 4000ft
RW09LOKI6E (3°)OKIPA
CLM (26mi, 293°)
MOSUD (8mi, 301°)
PG503 (16mi, 267°)
PG503 (turn)
PG670 (15mi, 283°) 4000ft
RW09LOKI6N (3°)OKIPA
CLM (26mi, 293°)
MOSUD (8mi, 301°)
LARPO (15mi, 302°)
PG502 (8mi, 269°)
PG502 (turn)
PG670 (13mi, 250°) 4000ft
 RNAVPG670 4000ft
FG09L (5mi, 87°) 4000ft
LFPG (13mi, 89°) 432ft
PG671 (5mi, 82°)
PG672 (12mi, 63°) 4000ft
RW09RBAN6E (3°)BANOX
SUBOX (12mi, 36°)
SUBOX (turn)
PG680 (23mi, 62°) 4000ft
RW09RLOR6E (3°)LORNI
BUNOR (37mi, 255°)
PG501 (8mi, 269°)
PG501 (turn)
PG680 (15mi, 237°) 4000ft
RW09RMOP6E (3°)MOPAR
PG527 (8mi, 146°)
PG527 (turn)
PG680 (14mi, 124°) 4000ft
RW09ROKI6E (3°)OKIPA
CLM (26mi, 293°)
MOSUD (8mi, 301°)
PG503 (16mi, 267°)
PG503 (turn)
PG680 (15mi, 282°) 4000ft
RW09ROKI6N (3°)OKIPA
CLM (26mi, 293°)
MOSUD (8mi, 301°)
LARPO (15mi, 302°)
PG502 (8mi, 269°)
PG502 (turn)
PG680 (13mi, 250°) 4000ft
 RNAVPG680 4000ft
FG09R (5mi, 87°) 4000ft
LFPG (13mi, 88°) 425ft
PG681 (5mi, 84°)
PG672 (13mi, 63°) 4000ft
RW26LBAN6W (3°)BANOX
DOMUS (26mi, 56°)
PG510 (10mi, 87°)
PG515 (10mi, 87°)
PG516 (8mi, 89°)
PG516 (turn)
PG441 (15mi, 75°) 4000ft
RW26LLOR6W (3°)LORNI
PG520 (10mi, 221°)
PG520 (turn)
PG441 (20mi, 230°) 4000ft
RW26LMOB6W (3°)MOBRO
BOV (21mi, 92°)
PG528 (16mi, 102°)
PG528 (turn)
PG441 (28mi, 125°) 4000ft
RW26LMOP6W (3°)MOPAR
PG534 (25mi, 93°)
CREIL (5mi, 93°)
PG536 (8mi, 97°)
PG536 (turn)
PG441 (18mi, 125°) 4000ft
RW26LOKI6W (3°)OKIPA
PG522 (12mi, 319°)
PG522 (turn)
PG441 (21mi, 300°) 4000ft
RW26LVEB6W (3°)VEBEK
CTL (9mi, 219°)
CTL (turn)
PG441 (23mi, 258°) 4000ft
 RNAVPG441 4000ft
FG26L (5mi, 267°) 4000ft
LFPG (13mi, 271°) 374ft
PG442 (14mi, 263°)
PG433 (3mi, 305°) 4000ft
RW26RBAN6W (3°)BANOX
DOMUS (26mi, 56°)
PG510 (10mi, 87°)
PG515 (10mi, 87°)
PG516 (8mi, 89°)
PG516 (turn)
PG435 (15mi, 74°) 4000ft
RW26RLOR6W (3°)LORNI
PG520 (10mi, 221°)
PG520 (turn)
PG435 (19mi, 230°) 4000ft
RW26RMOB6W (3°)MOBRO
BOV (21mi, 92°)
PG528 (16mi, 102°)
PG528 (turn)
PG435 (28mi, 125°) 4000ft
RW26RMOP6W (3°)MOPAR
PG534 (25mi, 93°)
CREIL (5mi, 93°)
PG536 (8mi, 97°)
PG536 (turn)
PG435 (17mi, 125°) 4000ft
RW26ROKI6W (3°)OKIPA
PG522 (12mi, 319°)
PG522 (turn)
PG435 (21mi, 301°) 4000ft
RW26RVEB6W (3°)VEBEK
CTL (9mi, 219°)
CTL (turn)
PG435 (23mi, 258°) 4000ft
 RNAVPG435 4000ft
FG26R (5mi, 267°) 4000ft
LFPG (13mi, 270°) 368ft
PG432 (14mi, 264°)
PG433 (3mi, 305°) 4000ft
RW27LBAN6W (3°)BANOX
DOMUS (26mi, 56°)
PG510 (10mi, 87°)
PG515 (10mi, 87°)
PG516 (8mi, 89°)
PG516 (turn)
PG660 (16mi, 70°) 5000ft
RW27LLOR6W (3°)LORNI
PG520 (10mi, 221°)
PG520 (turn)
PG660 (18mi, 234°) 5000ft
RW27LMOB6W (3°)MOBRO
BOV (21mi, 92°)
PG528 (16mi, 102°)
PG528 (turn)
PG660 (27mi, 123°) 5000ft
RW27LMOP6W (3°)MOPAR
PG534 (25mi, 93°)
CREIL (5mi, 93°)
PG536 (8mi, 97°)
PG536 (turn)
PG660 (16mi, 122°) 5000ft
RW27LOKI6W (3°)OKIPA
PG522 (12mi, 319°)
PG522 (turn)
PG660 (22mi, 303°) 5000ft
RW27LVEB6W (3°)VEBEK
CTL (9mi, 219°)
CTL (turn)
PG660 (23mi, 261°) 5000ft
 RNAVPG660 5000ft
FG27L (4mi, 267°) 5000ft
LFPG (14mi, 266°) 443ft
PG661 (4mi, 271°)
(2947mi, 183°)
PG652 (2949mi, 3°)
PON (9mi, 278°) 5000ft
RW27RBAN6W (3°)BANOX
DOMUS (26mi, 56°)
PG510 (10mi, 87°)
PG515 (10mi, 87°)
PG516 (8mi, 89°)
PG516 (turn)
PG650 (16mi, 69°) 5000ft
RW27RLOR6W (3°)LORNI
PG520 (10mi, 221°)
PG520 (turn)
PG650 (18mi, 234°) 5000ft
RW27RMOB6W (3°)MOBRO
BOV (21mi, 92°)
PG528 (16mi, 102°)
PG528 (turn)
PG650 (26mi, 123°) 5000ft
RW27RMOP6W (3°)MOPAR
PG534 (25mi, 93°)
CREIL (5mi, 93°)
PG536 (8mi, 97°)
PG536 (turn)
PG650 (16mi, 121°) 5000ft
RW27ROKI6W (3°)OKIPA
PG522 (12mi, 319°)
PG522 (turn)
PG650 (22mi, 304°) 5000ft
RW27RVEB6W (3°)VEBEK
CTL (9mi, 219°)
CTL (turn)
PG650 (23mi, 261°) 5000ft
 RNAVPG650 5000ft
FG27R (4mi, 267°) 5000ft
LFPG (14mi, 265°) 446ft
PG651 (4mi, 272°)
(2947mi, 183°)
PG652 (2949mi, 3°)
PON (9mi, 278°) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BIBA9DBIBAXVHFright320 (140)°15000ft - 24000ft1.5min timed265
BIBA9DMOPARVHFleft273 (93)°7000ft - 14000ft1.0min timed230
BIBA9EBIBAXVHFright320 (140)°15000ft - 24000ft1.5min timed265
BIBA9EMOPARVHFleft273 (93)°7000ft - 14000ft1.0min timed230
BIBA9PBIBAXVHFright320 (140)°15000ft - 24000ft1.5min timed265
BIBA9VBIBAXVHFright320 (140)°15000ft - 24000ft1.5min timed265
BIBA9VMOPARVHFleft273 (93)°7000ft - 14000ft1.0min timed230
BIBA9WBIBAXVHFright320 (140)°15000ft - 24000ft1.5min timed265
BIBA9WMOPARVHFleft273 (93)°7000ft - 14000ft1.0min timed230
DINA9EENORIVHFright56 (236)°15000ft - 24000ft1.5min timed265
DINA9ELORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
DINA9EXERAMVHFleft73 (253)°20000ft - 28000ft1.5min timed265
DINA9HENORIVHFright56 (236)°15000ft - 24000ft1.5min timed265
DINA9HLORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
DINA9HXERAMVHFleft73 (253)°20000ft - 28000ft1.5min timed265
DINA9JXERAMVHFleft73 (253)°20000ft - 28000ft1.5min timed265
DINA9WENORIVHFright56 (236)°15000ft - 24000ft1.5min timed265
DINA9WLORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
DINA9WXERAMVHFleft73 (253)°20000ft - 28000ft1.5min timed265
DJL9EOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
DJL9HOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
DJL9POKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
DJL9WOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
EPL9ENANOPVHFleft138 (318)°7000ft - 14000ft1.0min timed230
EPL9EOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
EPL9HNANOPVHFleft138 (318)°7000ft - 14000ft1.0min timed230
EPL9HOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
EPL9PNANOPVHFleft138 (318)°7000ft - 14000ft1.0min timed230
EPL9POKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
EPL9WNANOPVHFleft138 (318)°7000ft - 14000ft1.0min timed230
EPL9WOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
KEPE9EBANOXVHFright242 (62)°15000ft - 18000ft1.5min timed240
KEPE9EROMGOVHFright214 (34)°7000ft - 14000ft1.0min timed230
KEPE9PBANOXVHFright242 (62)°15000ft - 18000ft1.5min timed240
KEPE9PROMGOVHFright214 (34)°7000ft - 14000ft1.0min timed230
KEPE9WBANOXVHFright242 (62)°15000ft - 18000ft1.5min timed240
KEPE9WROMGOVHFright214 (34)°7000ft - 14000ft1.0min timed230
KOVA9EBANOXVHFright242 (62)°15000ft - 18000ft1.5min timed240
KOVA9EROMGOVHFright214 (34)°7000ft - 14000ft1.0min timed230
KOVA9PBANOXVHFright242 (62)°15000ft - 18000ft1.5min timed240
KOVA9PROMGOVHFright214 (34)°7000ft - 14000ft1.0min timed230
KOVA9WBANOXVHFright242 (62)°15000ft - 18000ft1.5min timed240
KOVA9WROMGOVHFright214 (34)°7000ft - 14000ft1.0min timed230
LUKI9DLUKIPVHFleft275 (95)°20000ft - 24000ft1.5min timed265
LUKI9DMOPARVHFleft273 (93)°7000ft - 14000ft1.0min timed230
LUKI9ELUKIPVHFleft275 (95)°20000ft - 24000ft1.5min timed265
LUKI9EMOPARVHFleft273 (93)°7000ft - 14000ft1.0min timed230
LUKI9PLUKIPVHFleft275 (95)°20000ft - 24000ft1.5min timed265
LUKI9VLUKIPVHFleft275 (95)°20000ft - 24000ft1.5min timed265
LUKI9VMOPARVHFleft273 (93)°7000ft - 14000ft1.0min timed230
LUKI9WLUKIPVHFleft275 (95)°20000ft - 24000ft1.5min timed265
LUKI9WMOPARVHFleft273 (93)°7000ft - 14000ft1.0min timed230
MATI9EENORIVHFright56 (236)°15000ft - 24000ft1.5min timed265
MATI9ELORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
MATI9HENORIVHFright56 (236)°15000ft - 24000ft1.5min timed265
MATI9HLORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
MATI9WENORIVHFright56 (236)°15000ft - 24000ft1.5min timed265
MATI9WLORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
MOPI9EENORIVHFright56 (236)°15000ft - 24000ft1.5min timed265
MOPI9ELORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
MOPI9EXERAMVHFleft73 (253)°20000ft - 28000ft1.5min timed265
MOPI9HENORIVHFright56 (236)°15000ft - 24000ft1.5min timed265
MOPI9HLORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
MOPI9HXERAMVHFleft73 (253)°20000ft - 28000ft1.5min timed265
MOPI9JXERAMVHFleft73 (253)°20000ft - 28000ft1.5min timed265
MOPI9WENORIVHFright56 (236)°15000ft - 24000ft1.5min timed265
MOPI9WLORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
MOPI9WXERAMVHFleft73 (253)°20000ft - 28000ft1.5min timed265
MOU9EOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
MOU9HOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
MOU9POKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
MOU9WOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
PIBA9EOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
PIBA9HOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
PIBA9POKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
PIBA9WOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
RLP9ENANOPVHFleft138 (318)°7000ft - 14000ft1.0min timed230
RLP9EOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
RLP9HNANOPVHFleft138 (318)°7000ft - 14000ft1.0min timed230
RLP9HOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
RLP9PNANOPVHFleft138 (318)°7000ft - 14000ft1.0min timed230
RLP9POKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
RLP9WNANOPVHFleft138 (318)°7000ft - 14000ft1.0min timed230
RLP9WOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
ROMG9EBANOXVHFright242 (62)°15000ft - 18000ft1.5min timed240
ROMG9EROMGOVHFright214 (34)°7000ft - 14000ft1.0min timed230
ROMG9PBANOXVHFright242 (62)°15000ft - 18000ft1.5min timed240
ROMG9PROMGOVHFright214 (34)°7000ft - 14000ft1.0min timed230
ROMG9WBANOXVHFright242 (62)°15000ft - 18000ft1.5min timed240
ROMG9WROMGOVHFright214 (34)°7000ft - 14000ft1.0min timed230
SABL9EBANOXVHFright242 (62)°15000ft - 18000ft1.5min timed240
SABL9EROMGOVHFright214 (34)°7000ft - 14000ft1.0min timed230
SABL9PBANOXVHFright242 (62)°15000ft - 18000ft1.5min timed240
SABL9PROMGOVHFright214 (34)°7000ft - 14000ft1.0min timed230
SABL9WBANOXVHFright242 (62)°15000ft - 18000ft1.5min timed240
SABL9WROMGOVHFright214 (34)°7000ft - 14000ft1.0min timed230
TINI9ENANOPVHFleft138 (318)°7000ft - 14000ft1.0min timed230
TINI9EOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
TINI9WNANOPVHFleft138 (318)°7000ft - 14000ft1.0min timed230
TINI9WOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
TRO9EOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
TRO9HOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
TRO9POKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
TRO9WOKIPAVHFleft122 (302)°15000ft - 19000ft1.5min timed240
VEDU9EENORIVHFright56 (236)°15000ft - 24000ft1.5min timed265
VEDU9ELORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
VEDU9EXERAMVHFleft73 (253)°20000ft - 28000ft1.5min timed265
VEDU9HENORIVHFright56 (236)°15000ft - 24000ft1.5min timed265
VEDU9HLORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
VEDU9HXERAMVHFleft73 (253)°20000ft - 28000ft1.5min timed265
VEDU9JXERAMVHFleft73 (253)°20000ft - 28000ft1.5min timed265
VEDU9WENORIVHFright56 (236)°15000ft - 24000ft1.5min timed265
VEDU9WLORNIVHFright74 (254)°15000ft - 17000ft1.5min timed240
VEDU9WXERAMVHFleft73 (253)°20000ft - 28000ft1.5min timed265
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
