Airports for X-Plane

Saint Gatien Des Bois - Deauville Normandie

Airport details

CountryFrance
StateNormandy
RegionLF
AirspaceParis Ctr
MunicipalitySaint-Gatien-des-Bois
Elevation479ft (146m)
TimezoneGMT +1
Coordinates49.36340, 0.16000
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFRG
IATA codeDOL
FAA coden/a

Communication

Deauville Normandie ATIS119.180
Deauville Normandie DEAUVILLE Tower118.300
Deauville Normandie DEAUVILLE Approach120.350
Deauville Normandie Dep118.300

Approach frequencies

ILS-cat-IRW30111.5518.00mi
3° GSRW30111.5518.00mi

Runway info

Runway 12 / 30
 length2553m (8376ft)
 bearing109° / 289°
 width45m (148ft)
 surfaceasphalt
 displ threshold450m (1476ft) / 421m (1381ft)

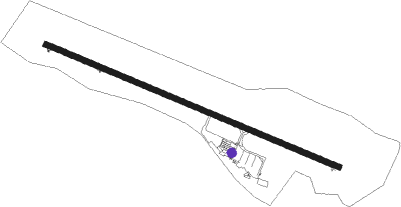

Airport layout - parking location B3


Taxiway locations

 A  B
Parking locations

 A1  A2  A3  A4  A5  B1  B2  B3
 B4  C1  C2  C3  D1  E1  E2  E3
 E4  Grass1  Grass2  Grass3  Grass4  Grass5  Grass6

Nearby beacons

codeidentifierdistbearingfrequency
DVLDEAUVILLE NORMANDIE VOR6.7109°110.20
LHOLE HAVRE NDB145°346
CNECAEN NDB24243°404
CANCAEN CARPIQUET VOR/DME26.6253°114.45
LGLL'AIGLE VOR/DME37.3147°112.70
DSADIEPPE NDB47.561°351
CHWCHARTRES VOR/DME62.2137°115.20

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW12
 ETRA4E19mi1°
 DPE4E52mi61°
 ELBO4E26mi97°
 LGL4E37mi147°
 CAN4E27mi253°
 NEVI4E43mi320°
RW30
 ETRA4W19mi1°
 DPE4Z, DPE4W52mi61°
 ELBO4W26mi97°
 LGL4W37mi147°
 CAN4W27mi253°
 NEVI4W43mi320°

STAR starting pointsdistanceinbound heading
RW12
 CAN4R26.673°
 ETRA4R19.2181°
 DPE4R51.8241°
 ROU4R44.2265°
 BERN4R25.0301°
 LGL4R37.3327°
RW30
 CAN4D26.673°
 ETRA4D19.2181°
 DPE4D51.8241°
 BERN4D25.0301°
 LGL4D37.3327°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12ABAMU (95°)ABAMU
IRG12 (6mi, 59°) 3000ft
RW12BAGEK (108°)BAGEK
IRG12 (5mi, 108°) 3000ft
RW12DEMOM (122°)DEMOM
IRG12 (5mi, 191°) 3000ft
 RNAVIRG12 3000ft
FRG12 (5mi, 108°) 3000ft
LFRG (8mi, 108°) 521ft
RG410 (2mi, 109°)
LULIP (11mi, 261°)
ABAMU (9mi, 297°) 3000ft
ABAMU (turn) 3000ft
RW30GODOV (314°)GODOV
IRG30 (7mi, 38°) 3000ft
RW30XANOR (257°)XANOR
IRG30 (14mi, 218°) 3000ft
RW30XASUD (2°)XASUD
GODOV (9mi, 87°)
IRG30 (7mi, 38°) 3000ft
 RNAVIRG30 3000ft
FRG30 (5mi, 289°) 3000ft
LFRG (8mi, 289°) 515ft
RG510 (3mi, 289°)
XASUD (14mi, 166°) 3000ft
XASUD (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BERN4DDVLNDBright118 (298)°3000ft - 6000ft1.0min timed220
BERN4RABAMUVHFleft227 (47)°3000ft - 5000ft1.0min timed200
CAN4DDVLNDBright118 (298)°3000ft - 6000ft1.0min timed220
CAN4RABAMUVHFleft227 (47)°3000ft - 5000ft1.0min timed200
DPE4DDVLNDBright118 (298)°3000ft - 6000ft1.0min timed220
DPE4RABAMUVHFleft227 (47)°3000ft - 5000ft1.0min timed200
ETRA4DDVLNDBright118 (298)°3000ft - 6000ft1.0min timed220
ETRA4RABAMUVHFleft227 (47)°3000ft - 5000ft1.0min timed200
LGL4DDVLNDBright118 (298)°3000ft - 6000ft1.0min timed220
LGL4RABAMUVHFleft227 (47)°3000ft - 5000ft1.0min timed200
ROU4RABAMUVHFleft227 (47)°3000ft - 5000ft1.0min timed200
*) magnetic outbound (inbound) holding course
