Airports for X-Plane

Lorient/lann/bihoué - Lorient Lann-bihoue

Airport details

CountryFrance
StateBrittany
RegionLF
AirspaceBrest Ctr
MunicipalityPlœmeur
Elevation159ft (48m)
TimezoneGMT +1
Coordinates47.76053, -3.43995
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFRH
IATA codeLRT
FAA coden/a

Communication

Lorient Lann-Bihoue LFRH ATIS129.125
Lorient Lann-Bihoue LORIENT Ground Control119.700
Lorient Lann-Bihoue LORIENT Tower122.700
Lorient Lann-Bihoue LORIENT Approach122.100
Lorient Lann-Bihoue LORIENT Approach122.300
Lorient Lann-Bihoue LORIENT Approach123.000
Lorient Lann-Bihoue LORIENT Approach119.700

Approach frequencies

ILS-cat-IRW25108.1518.00mi
3° GSRW25108.1518.00mi
Nearby Points of Interest:
croix de chemin en schiste de Kerduellic
-
Croix de Kerduellic
-
Croix de Kervegan
-
Cité de Soye
-
253 bis cité de Soye
-
253 Cité de Soye
-
Calvaire de Quéven
-
Croix de Kergouledec
-
Maison, 18 rue Jules Legrand (Lorient)
-
Monument expiatoire de Lorient
-
Town hall of Port-Louis
-
Église Saints-Pierre-et-Paul de Caudan
-
Usine de salaison gallo-romaine du Resto
-
petite mer de Gâvres
-
Puits Ferré d'Hennebont
-
Haras national d'Hennebont
-
Croix armoriée de Kério
-
Puits de Calan
-
dolmen de Tri-Men-de-Castello
-
Domaine de Kerlivio
-
oppidum de Mané-Coh-Castel
-
Puits et niche du Lion
-
Glacière d'Étel
-
Etel lifeboat station
-
Dolmen à galerie avec la base de son tumulus

Runway info

Runway 07 / 25
 length2225m (7300ft)
 bearing77° / 257°
 width45m (148ft)
 surfaceasphalt
 blast zone99m (325ft) / 195m (640ft)
Runway 02 / 20
 length1670m (5479ft)
 bearing23° / 203°
 width45m (148ft)
 surfaceasphalt

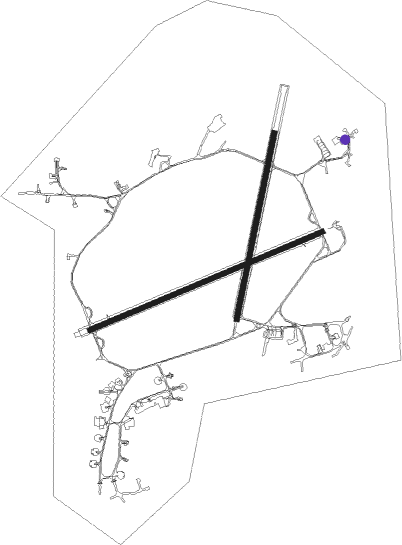

Airport layout - parking location Military_C16


Taxiway locations

 A1  A3  A4  B  B2  C  C1  D
 E1
Parking locations

 Civil_Gate_B1  Civil_Gate_B2  Civil_Gate_B3  Civil_Gate_B4  French_Custom_1  French_Custom_2  French_Custom_3  GA_Gate_1
 GA_Gate_2  GA_Gate_3  GA_Gate_4  Heli  Military_A1  Military_A10  Military_A11  Military_A12
 Military_A13  Military_A14  Military_A15  Military_A16  Military_A17  Military_A2  Military_A3  Military_A4
 Military_A5  Military_A6  Military_A7  Military_A8  Military_A9  Military_C1  Military_C11  Military_C12
 Military_C13  Military_C14  Military_C15  Military_C16  Military_C2  Military_C3  Military_C4  Military_E1
 Military_E2  Military_E3  Military_H1  Mil_Cargo_B

Nearby beacons

codeidentifierdistbearingfrequency
LORLORIENT LANN BIHOUE TACAN0308°115.80
LORLORIENT LANN BIHOUE NDB0.1344°359
RQQUIMPER NDB25.7290°380
PNTPONTIVY NDB31.366°377
VAVANNES NDB31.489°342
QPRQUIMPER PLUGUFFAN VOR/DME32.2285°117.80
AREMONTS D'ARREE VOR34.9344°112.50
BSTLANVEOC POULMIC NDB50.7298°428
LDVLANDIVISIAU TACAN54.3317°115.15
GUBREST NDB54.8310°338
SBSAINT BRIEUC NDB55.139°353
LNLANNION NDB57.88°345

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW07
 LENS1E23mi67°
 BAGA1E25mi108°
 ROSP1E17mi303°
 ARE1E35mi344°
RW20
 LENS1S23mi67°
 BAGA1C, BAGA1S25mi108°
 ROSP1S17mi303°
 ARE1S35mi344°
RW25
 LENS1W23mi67°
 BAGA1W, BAGA1B25mi108°
 ADSE1W25mi138°
 ROSP1W17mi303°
 ARE1W35mi344°

STAR starting pointsdistanceinbound heading
RW07
 QPR1L32.2105°
 ARE1L34.9164°
 LENS1L22.8247°
 BAGA1L24.9288°
RW20
 QPR1R, QPR1N32.2105°
 ARE1N34.9164°
 LENS1N22.8247°
 BAGA1N24.9288°
RW25
 QPR1K32.2105°
 ARE1M34.9164°
 LENS1M, LENS1K22.8247°
 BAGA1M24.9288°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07IRH07 (77°)IRH07 3000ft
FRH07 (5mi, 77°) 3000ft
RW07RH401 (91°)RH401 3000ft
IRH07 (5mi, 154°) 3000ft
FRH07 (5mi, 77°) 3000ft
 RNAVFRH07 3000ft
LFRH (10mi, 77°) 183ft
(2874mi, 176°) 1000ft
RH401 (2876mi, 355°) 3000ft
RW20ROKAL (203°)ROKAL 3000ft
FRH20 (3mi, 203°) 3000ft
 RNAVFRH20 3000ft
LFRH (9mi, 203°) 208ft
(2874mi, 176°) 1000ft
RH417 (2881mi, 356°) 3000ft
RH414 (12mi, 23°)
RH415 (5mi, 101°)
ROKAL (5mi, 203°) 3000ft
RW25LALMO (257°)LALMO 3000ft
FRH25 (3mi, 257°) 3000ft
 RNAVFRH25 3000ft
LFRH (9mi, 258°) 189ft
(2874mi, 176°) 1000ft
RH427 (2880mi, 356°) 3000ft
RH424 (15mi, 78°)
RH425 (5mi, 154°)
LALMO (6mi, 258°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARE1LLORFIXright73 (253)°3000ft - 8000ft1.0min timed220
ARE1MLALMOVHFleft73 (253)°3000ft - 6000ft1.0min timed220
ARE1NROKALVHFleft17 (197)°3000ft - 6000ft1.0min timed185
BAGA1LLORFIXright73 (253)°3000ft - 8000ft1.0min timed220
BAGA1MLALMOVHFleft73 (253)°3000ft - 6000ft1.0min timed220
BAGA1NROKALVHFleft17 (197)°3000ft - 6000ft1.0min timed185
LENS1KKERAKVHFleft74 (254)°3000ft - 8000ftDME 5.0mi220
LENS1LLORFIXright73 (253)°3000ft - 8000ft1.0min timed220
LENS1MLALMOVHFleft73 (253)°3000ft - 6000ft1.0min timed220
LENS1NROKALVHFleft17 (197)°3000ft - 6000ft1.0min timed185
QPR1KLORFIXright73 (253)°3000ft - 8000ft1.0min timed220
QPR1LLIRMAVHFright252 (72)°3000ft - 8000ftDME 5.0mi220
QPR1NROKALVHFleft17 (197)°3000ft - 6000ft1.0min timed185
QPR1RLORFIXright73 (253)°3000ft - 8000ft1.0min timed220
*) magnetic outbound (inbound) holding course
