Airports for X-Plane

Saint-nazaire/montoir - Saint Nazaire Montoir

Airport details

CountryFrance
StatePays de la Loire
RegionLF
AirspaceBrest Ctr
MunicipalityMontoir-de-Bretagne
Elevation13ft (4m)
TimezoneGMT +1
Coordinates47.31055, -2.15667
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFRZ
IATA codeSNR
FAA coden/a

Communication

Saint Nazaire Montoir SAINT NAZAIRE Tower118.950
Saint Nazaire Montoir NANTES Approach124.425

Approach frequencies

ILS-cat-IRW25108.518.00mi
3° GSRW25108.518.00mi
Nearby Points of Interest:
Usine élévatoire de Saint-Nazaire
-
butte aux Gorzeaux
-
Moulin de la Ramée
-
Villa du Plessis-Grimaud
-
Château du Plessis-Mareil
-
Kerbourg dolmens
-
Pottery kilns in Landieul
-
ancient cisterns of Trémonday
-
Maison du Canon
-
35 rue Saint-Christophe, Le Croisic
-
5 quai de la Petite-Chambre, Le Croisic
-
St Goustan's Chapel
-
pierres du Meniscoul
-
Vilaine estuary
-
Doyenné de Péaule
-
dolmen de la pointe de l'Herbaudière
-
Hôtel Jacobsen
-
Croix de cimetière du Guerno
-
Manoir du Mail
-
Hôtel de Richelieu
-
Hôtel de Carmoy
-
remparts de Redon
-
Couvent des Calvairiennes
-
Commanderie de Limerzel
-
Chapelle Sainte-Marie-Madeleine de Quinquenevent

Runway info

Runway 07 / 25
 length2402m (7881ft)
 bearing79° / 259°
 width45m (148ft)
 surfaceasphalt

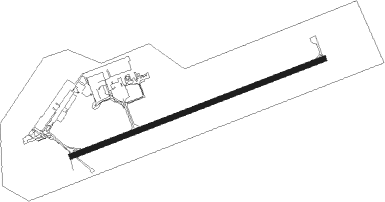

Airport layout


Taxiway locations

 A  B
Parking locations

 1  2  Beluga  GA_ACB  GA_apron  GA_Fuel  Helipad

Nearby beacons

codeidentifierdistbearingfrequency
MTSAINT NAZAIRE NDB4.778°398
NTSNANTES ATLANTIQUE VOR/DME23.9105°115.50
GLNANTES NDB24.6119°369
VAVANNES NDB34.3312°342
RENRENNES SAINT JACQUES VOR/DME48.529°109.25
PNTPONTIVY NDB51.4319°377
YNLA ROCHE SUR YON LES AJONCS NDB51.6126°334

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW07
 BALN1E27mi58°
 LUGE1E69mi119°
 RIMO1E12mi352°
RW25
 BALN1W27mi58°
 LUGE1W69mi119°
 ERIG1W28mi205°
 RIMO1W12mi352°

STAR starting pointsdistanceinbound heading
ALL
 RIMO9Z11.8172°
 GODA9Z21.4211°
 TIRA9Z53.0313°
 NORM9Z25.0351°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW25NITEM (251°)NITEM 3000ft
IRZ25 (3mi, 183°) 3000ft
 RNAVIRZ25 3000ft
FRZ25 (5mi, 259°) 3000ft
LFRZ (10mi, 259°) 61ft
RZ410 (2mi, 259°)
RIMON (12mi, 5°)
RZ412 (13mi, 90°)
NITEM (5mi, 144°) 3000ft
NITEM (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ANG9ZMTFIXright74 (254)°3000ft - 8000ft1.0min timed220
ERBI9ZMTFIXright74 (254)°3000ft - 8000ft1.0min timed220
GODA9ZMTFIXright74 (254)°3000ft - 8000ft1.0min timed220
NORM9ZMTFIXright74 (254)°3000ft - 8000ft1.0min timed220
RIMO9ZMTFIXright74 (254)°3000ft - 8000ft1.0min timed220
TIRA9ZMTFIXright74 (254)°3000ft - 8000ft1.0min timed220
*) magnetic outbound (inbound) holding course
