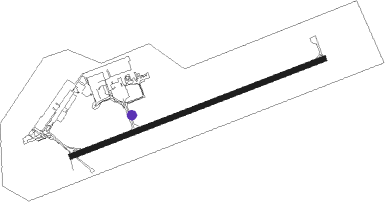

Saint-nazaire/montoir - Saint Nazaire Montoir
Airport details
| Country | France |
| State | Pays de la Loire |
| Region | LF |
| Airspace | Brest Ctr |
| Municipality | Montoir-de-Bretagne |
| Elevation | 13ft (4m) |
| Timezone | GMT +1 |
| Coordinates | 47.31055, -2.15667 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | LFRZ |
| IATA code | SNR |
| FAA code | n/a |
Communication
| Saint Nazaire Montoir SAINT NAZAIRE Tower | 118.950 |
| Saint Nazaire Montoir NANTES Approach | 124.425 |
Approach frequencies
| ILS-cat-I | RW25 | 108.5 | 18.00mi |
| 3° GS | RW25 | 108.5 | 18.00mi |
Nearby Points of Interest:
Usine élévatoire de Saint-Nazaire
-butte aux Gorzeaux
-Moulin de la Ramée
-Villa du Plessis-Grimaud
-Château du Plessis-Mareil
-Kerbourg dolmens
-Pottery kilns in Landieul
-ancient cisterns of Trémonday
-Maison du Canon
-35 rue Saint-Christophe, Le Croisic
-5 quai de la Petite-Chambre, Le Croisic
-St Goustan's Chapel
-pierres du Meniscoul
-Vilaine estuary
-Doyenné de Péaule
-dolmen de la pointe de l'Herbaudière
-Hôtel Jacobsen
-Croix de cimetière du Guerno
-Manoir du Mail
-Hôtel de Richelieu
-Hôtel de Carmoy
-remparts de Redon
-Couvent des Calvairiennes
-Commanderie de Limerzel
-Chapelle Sainte-Marie-Madeleine de Quinquenevent
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| MT | SAINT NAZAIRE NDB | 4.7 | 78° | 398 |
| NTS | NANTES ATLANTIQUE VOR/DME | 23.9 | 105° | 115.50 |
| GL | NANTES NDB | 24.6 | 119° | 369 |
| VA | VANNES NDB | 34.3 | 312° | 342 |
| REN | RENNES SAINT JACQUES VOR/DME | 48.5 | 29° | 109.25 |
| PNT | PONTIVY NDB | 51.4 | 319° | 377 |
| YN | LA ROCHE SUR YON LES AJONCS NDB | 51.6 | 126° | 334 |
Departure and arrival routes
| Transition altitude | 5000ft |
| SID end points | distance | outbound heading | |
|---|---|---|---|
| RW07 | |||
| BALN1E | 27mi | 58° | |
| LUGE1E | 69mi | 119° | |
| RIMO1E | 12mi | 352° | |
| RW25 | |||
| BALN1W | 27mi | 58° | |
| LUGE1W | 69mi | 119° | |
| ERIG1W | 28mi | 205° | |
| RIMO1W | 12mi | 352° | |
| STAR starting points | distance | inbound heading | |
|---|---|---|---|
| ALL | |||
| RIMO9Z | 11.8 | 172° | |
| GODA9Z | 21.4 | 211° | |
| TIRA9Z | 53.0 | 313° | |
| NORM9Z | 25.0 | 351° | |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW25 | NITEM (251°) | NITEM 3000ft IRZ25 (3mi, 183°) 3000ft |
| RNAV | IRZ25 3000ft FRZ25 (5mi, 259°) 3000ft LFRZ (10mi, 259°) 61ft RZ410 (2mi, 259°) RIMON (12mi, 5°) RZ412 (13mi, 90°) NITEM (5mi, 144°) 3000ft NITEM (turn) 3000ft |
Holding patterns
| STAR name | hold at | type | turn | heading* | altitude | leg | speed limit |
|---|---|---|---|---|---|---|---|
| ANG9Z | MT | FIX | right | 74 (254)° | 3000ft - 8000ft | 1.0min timed | 220 |
| ERBI9Z | MT | FIX | right | 74 (254)° | 3000ft - 8000ft | 1.0min timed | 220 |
| GODA9Z | MT | FIX | right | 74 (254)° | 3000ft - 8000ft | 1.0min timed | 220 |
| NORM9Z | MT | FIX | right | 74 (254)° | 3000ft - 8000ft | 1.0min timed | 220 |
| RIMO9Z | MT | FIX | right | 74 (254)° | 3000ft - 8000ft | 1.0min timed | 220 |
| TIRA9Z | MT | FIX | right | 74 (254)° | 3000ft - 8000ft | 1.0min timed | 220 |
| *) magnetic outbound (inbound) holding course | |||||||
