Airports for X-Plane

Juvaincourt - Epinal Mirecourt

Airport details

CountryFrance
StateGrand Est
RegionLF
AirspaceReims Ctr
MunicipalityJuvaincourt
Elevation1083ft (330m)
TimezoneGMT +1
Coordinates48.32500, 6.06674
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFSG
IATA codeEPL
FAA coden/a

Communication

Epinal Mirecourt EPINAL MULT120.200
Epinal Mirecourt AFIS120.200
Epinal Mirecourt OCHEY/LORRAINE Approach127.250

Approach frequencies

ILS-cat-IRW26110.918.00mi
3° GSRW26110.918.00mi

Runway info

Runway 08 / 26
 length2697m (8848ft)
 bearing87° / 267°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 260m (853ft)
 blast zone242m (794ft) / 0m (0ft)

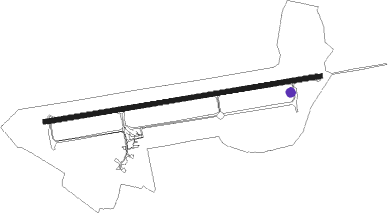

Airport layout - taxiway location A


Taxiway locations

 A  B  C  D
Parking locations

 GA

Nearby beacons

codeidentifierdistbearingfrequency
EPLEPINAL MIRECOURT VOR0.5226°113
EMTEPINAL NDB587°419
NAYNANCY OCHEY TACAN16.1336°116.80
LXILUXEUIL SAINT SAUVEUR TACAN34.5152°108.20
LULLUXEUIL VOR39.3160°117.10
LOULORRAINE NDB41.217°388
RLPROLAMPONT VOR/DME41.3243°117.30
GTQGROSTENQUIN VOR/DME47.344°111.25
HRHERICOURT NDB53139°289
ETNETAIN NDB56.4337°410
MTZMETZ NDB57.38°354
MBMONTBELIARD NDB60.1134°330

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW26ISG26 (267°)ISG26 3000ft
EMT (7mi, 267°) 3000ft
SG411 (5mi, 352°) 3000ft
SG403 (7mi, 87°) 3000ft
ISG26 (5mi, 173°) 3000ft
RW26SG402 (282°)SG402 3000ft
ISG26 (5mi, 352°) 3000ft
RW26SG403 (251°)SG403 3000ft
ISG26 (5mi, 173°) 3000ft
 RNAVISG26 3000ft
FSG26 (5mi, 267°) 3000ft
LFSG (7mi, 267°) 1083ft
SG409 (2mi, 267°)
SG402 (15mi, 100°) 3000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
